Attractor Estimation¶
This tutorial demonstrates how to estimate potential energy landscapes for simulated dynamical systems with attractors in one, two, three, and higher dimensions. The goal is to understand the dynamics of systems governed by these landscapes and validate estimations against the ground truth.
Setup¶
In [ ]:
Copied!
%reload_ext autoreload
%autoreload 2
import warnings
import numpy as np
import matplotlib.pyplot as plt
import ipywidgets as widgets
import napari
import neuro_py as npy
import scipy
import sklearn
import sklearn.decomposition
from IPython.display import HTML
from matplotlib.animation import FuncAnimation
from napari_animation import Animation
warnings.simplefilter("ignore", category=RuntimeWarning)
%reload_ext autoreload %autoreload 2 import warnings import numpy as np import matplotlib.pyplot as plt import ipywidgets as widgets import napari import neuro_py as npy import scipy import sklearn import sklearn.decomposition from IPython.display import HTML from matplotlib.animation import FuncAnimation from napari_animation import Animation warnings.simplefilter("ignore", category=RuntimeWarning)
Section 1: 1D Energy Landscape¶
This section focuses on simulating and estimating a 1D energy landscape to provide a foundational understanding of attractor dynamics in a simple setting.
Section 1.1: Simulate trials of 1D activity using Langevin dynamics with noise¶
We simulate the dynamics of particles (or neural states) evolving under a 1D potential landscape influenced by noise. The dynamics are modeled using Langevin equations with parameters for attractor depths, positions, and noise.
Goals:
- To visualize particle dynamics under a simple potential landscape.
- To understand how initial states and noise affects convergence to attractors and hence their estimation.
Key Insights:
- Particle trajectories converge to the minima of the potential wells, confirming the attractor dynamics.
In [ ]:
Copied!
def gaussian(X, X0, sig, A):
G = A * np.exp(-((X - X0) ** 2) / (2 * sig**2))
dG = G * (X0 - X) / sig**2
return -G, -dG
def mix_gaussians(X, Xp, a):
u1, du1 = gaussian(X, Xp[0], 1, a[0])
u2, du2 = gaussian(X, Xp[1], 1, a[1])
u3, du3 = gaussian(X, Xp[2], 1, a[2])
u = u1 + u2 + u3
du = du1 + du2 + du3
return u, du
def simulate_trials(Xp, a, num_trials, iterations, dt, noise_fac):
"""Simulate trials using Langevin dynamics with noise"""
lan_fac = noise_fac * np.sqrt(dt)
X_dyn = np.empty((num_trials, iterations))
for i in range(num_trials):
# random initial condition
X_dyn[i, 0] = np.random.choice(Xp) + np.random.randn() * lan_fac
for ii in range(iterations - 1):
# energy and gradient at current position
E, dE = mix_gaussians(X_dyn[i, ii], Xp, a)
X_dyn[i, ii + 1] = X_dyn[i, ii] - dt * dE + lan_fac * np.random.randn()
return X_dyn
def gaussian(X, X0, sig, A): G = A * np.exp(-((X - X0) ** 2) / (2 * sig**2)) dG = G * (X0 - X) / sig**2 return -G, -dG def mix_gaussians(X, Xp, a): u1, du1 = gaussian(X, Xp[0], 1, a[0]) u2, du2 = gaussian(X, Xp[1], 1, a[1]) u3, du3 = gaussian(X, Xp[2], 1, a[2]) u = u1 + u2 + u3 du = du1 + du2 + du3 return u, du def simulate_trials(Xp, a, num_trials, iterations, dt, noise_fac): """Simulate trials using Langevin dynamics with noise""" lan_fac = noise_fac * np.sqrt(dt) X_dyn = np.empty((num_trials, iterations)) for i in range(num_trials): # random initial condition X_dyn[i, 0] = np.random.choice(Xp) + np.random.randn() * lan_fac for ii in range(iterations - 1): # energy and gradient at current position E, dE = mix_gaussians(X_dyn[i, ii], Xp, a) X_dyn[i, ii + 1] = X_dyn[i, ii] - dt * dE + lan_fac * np.random.randn() return X_dyn
Set parameters for the simulation generating the synthetic data influenced by multiple bump attractors.
In [ ]:
Copied!
Xp = [-2.5, 0, 2.5] # positions of the minima of bump attractors
attractordepths = [0.25, 0.2, 0.25]
ntrials = 100
iterations = 5000
domain_bins = proj_bins = 100
dt = 0.1 # time step
noise_fac = 0.15 # noise factor
# generate data
X_dyn = simulate_trials(Xp, attractordepths, ntrials, iterations, dt, noise_fac)
Xp = [-2.5, 0, 2.5] # positions of the minima of bump attractors attractordepths = [0.25, 0.2, 0.25] ntrials = 100 iterations = 5000 domain_bins = proj_bins = 100 dt = 0.1 # time step noise_fac = 0.15 # noise factor # generate data X_dyn = simulate_trials(Xp, attractordepths, ntrials, iterations, dt, noise_fac)
Section 1.2: Analytically estimate the 1D potential energy landscape¶
We analytically compute the 1D potential landscape and compare it to the ground-truth potential used to generate the synthetic data.
Goal:
- To validate the simulation by comparing it to the analytical potential.
Plot Descriptions:
- Potential Landscape: Displays the theoretical potential formed by the Gaussian mixture components.
- Dynamics of Trials: Shows the temporal evolution of particle positions for selected trials.
- Potential Landscape Estimation: Compares the analytical potential with the estimated potential.
Key Insights:
- The estimated potential closely matches the analytical potential, confirming the method's validity.
In [ ]:
Copied!
potential_pos_t, grad_pos_t_svm, H, latentedges, domainedges = (
npy.ensemble.potential_landscape(X_dyn, proj_bins, domain_bins)
)
# Visualize
fig, axes = plt.subplots(1, 3, figsize=(15, 4))
X = np.arange(-10, 10, 0.0025)
E, dE = mix_gaussians(X, Xp, attractordepths)
axes[0].plot(X, E, linewidth=2, label="Potential")
axes[0].set_title("Potential Landscape")
axes[0].set_xlabel("Position")
axes[0].set_ylabel("Energy")
for i in range(len(Xp)):
axes[0].plot(
X, gaussian(X, Xp[i], 1, attractordepths[i])[0], label=f"Component {i}"
)
axes[0].legend()
T = np.arange(0, iterations * dt, dt)
axes[1].plot(T, X_dyn[0], linewidth=2, label="Trial 1")
axes[1].plot(T, X_dyn[-1], linewidth=2, label=f"Trial {ntrials}")
axes[1].set_title("Dynamics of trials")
axes[1].set_xlabel("Time")
axes[1].set_ylabel("Position (X)")
axes[1].legend()
axes[2].plot(X, E, linewidth=2, label="Potential")
axes[2].plot(latentedges[:-1], np.nanmean(potential_pos_t, axis=1), label="Fit")
axes[2].set_title("Potential Landscape Estimation")
axes[2].set_xlabel("Position")
axes[2].set_ylabel("Energy")
axes[2].legend()
plt.show()
potential_pos_t, grad_pos_t_svm, H, latentedges, domainedges = ( npy.ensemble.potential_landscape(X_dyn, proj_bins, domain_bins) ) # Visualize fig, axes = plt.subplots(1, 3, figsize=(15, 4)) X = np.arange(-10, 10, 0.0025) E, dE = mix_gaussians(X, Xp, attractordepths) axes[0].plot(X, E, linewidth=2, label="Potential") axes[0].set_title("Potential Landscape") axes[0].set_xlabel("Position") axes[0].set_ylabel("Energy") for i in range(len(Xp)): axes[0].plot( X, gaussian(X, Xp[i], 1, attractordepths[i])[0], label=f"Component {i}" ) axes[0].legend() T = np.arange(0, iterations * dt, dt) axes[1].plot(T, X_dyn[0], linewidth=2, label="Trial 1") axes[1].plot(T, X_dyn[-1], linewidth=2, label=f"Trial {ntrials}") axes[1].set_title("Dynamics of trials") axes[1].set_xlabel("Time") axes[1].set_ylabel("Position (X)") axes[1].legend() axes[2].plot(X, E, linewidth=2, label="Potential") axes[2].plot(latentedges[:-1], np.nanmean(potential_pos_t, axis=1), label="Fit") axes[2].set_title("Potential Landscape Estimation") axes[2].set_xlabel("Position") axes[2].set_ylabel("Energy") axes[2].legend() plt.show()
Section 2: 2D Energy Landscape¶
In this section, we extend the dynamics and estimation to two dimensions, introducing more complexity.
Section 2.1: Simulate trials of 2D activity using Langevin dynamics with noise¶
Simulate particle dynamics under a 2D potential landscape composed of Gaussian attractors.
Goal:
- To explore how particle dynamics evolve in a 2D system with multiple attractors
Key Insights:
- Particle trajectories converge to minima in 2D, clustering around attractor states.
In [5]:
Copied!
def gaussian_nd(X, X0, sig, A): # -> tuple:
"""n-dimensional Gaussian function
Parameters
----------
X : np.ndarray
n-dimensional grid space. Shape: (n_points, ndim).
X0 : np.ndarray
Centers of the Gaussian for each dimension (same shape as X).
sig : np.ndarray or float
Standard deviations for each dimension (either same shape as X or a single float).
A : float
Amplitude of the Gaussian.
Returns
-------
G : np.ndarray
Value of the n-dimensional Gaussian function at X.
dG : np.ndarray
Derivative of the n-dimensional Gaussian function along each dimension.
"""
X = np.atleast_2d(X)
X0 = np.atleast_1d(X0)
sig = np.atleast_1d(sig)
# Ensure X0 and sig are compatible with each dimension of the grid
# assert len(X) == len(X0), "X0 should have the same number of dimensions as X"
# assert len(X) == len(sig), "sig should have the same number of dimensions as X"
# Compute the Gaussian function values across the grid
exponent = -np.sum((X - X0) ** 2 / (2 * sig**2), axis=-1)
G = A * np.exp(exponent)
# Use np.gradient to compute the derivative along each axis
dG = (((X0 - X) / sig**2).T * G).T # shape: (n_points, ndim)
return -G, -dG
def mix_functions(X, Xp, a, std=1, func=gaussian_nd):
"""Sum of Gaussians.
Parameters
----------
X : float
Position
Xp : list
Centers of the Gaussians
a : list
Amplitudes of the Gaussians
n : int
Number of Gaussians
Returns
-------
U : float
Mixture of Gaussians
dU : float
Derivative of the mixture of Gaussians
"""
for i, xp in enumerate(Xp):
if i == 0:
U, dU = func(X, xp, std, a[i])
else:
u, du = func(X, xp, std, a[i])
U += u
dU += du
return U, dU
def simulate_trials(
Xp,
a,
ntrials,
iterations,
dt,
noise_fac,
std=1,
ngaussians=3,
xstarts=None,
func=gaussian_nd,
):
"""Simulate trials
Parameters
----------
Xp : list
Centers of the Gaussians
a : list
Amplitudes of the Gaussians
ntrials : int
Number of trials
iterations : int
Number of iterations
dt : float
Time step
noise_fac : float
Noise factor
Returns
-------
X_dyn : array
Trajectories of the trials
"""
nnrns = len(np.atleast_1d(Xp[0]))
lan_fac = noise_fac * np.sqrt(dt) # Langevin factor
X_dyn = np.empty((ntrials, iterations, nnrns)) # Trajectories of the trials
for i in range(ntrials):
sel_ix = np.random.randint(len(Xp))
if xstarts is None or len(xstarts) <= i:
startstate = (
Xp[sel_ix] + np.random.randn(*X_dyn[i, 0].shape) * lan_fac
) # random initial condition
else:
startstate = xstarts[i]
X_dyn[i, 0] = startstate
for ii in range(iterations - 1):
E, dE = mix_functions(X_dyn[i, ii], Xp, a, std=std, func=func)
X_dyn[i, ii + 1] = (
X_dyn[i, ii] - dt * dE + lan_fac * np.random.randn(*dE.shape)
)
return X_dyn
def gaussian_nd(X, X0, sig, A): # -> tuple: """n-dimensional Gaussian function Parameters ---------- X : np.ndarray n-dimensional grid space. Shape: (n_points, ndim). X0 : np.ndarray Centers of the Gaussian for each dimension (same shape as X). sig : np.ndarray or float Standard deviations for each dimension (either same shape as X or a single float). A : float Amplitude of the Gaussian. Returns ------- G : np.ndarray Value of the n-dimensional Gaussian function at X. dG : np.ndarray Derivative of the n-dimensional Gaussian function along each dimension. """ X = np.atleast_2d(X) X0 = np.atleast_1d(X0) sig = np.atleast_1d(sig) # Ensure X0 and sig are compatible with each dimension of the grid # assert len(X) == len(X0), "X0 should have the same number of dimensions as X" # assert len(X) == len(sig), "sig should have the same number of dimensions as X" # Compute the Gaussian function values across the grid exponent = -np.sum((X - X0) ** 2 / (2 * sig**2), axis=-1) G = A * np.exp(exponent) # Use np.gradient to compute the derivative along each axis dG = (((X0 - X) / sig**2).T * G).T # shape: (n_points, ndim) return -G, -dG def mix_functions(X, Xp, a, std=1, func=gaussian_nd): """Sum of Gaussians. Parameters ---------- X : float Position Xp : list Centers of the Gaussians a : list Amplitudes of the Gaussians n : int Number of Gaussians Returns ------- U : float Mixture of Gaussians dU : float Derivative of the mixture of Gaussians """ for i, xp in enumerate(Xp): if i == 0: U, dU = func(X, xp, std, a[i]) else: u, du = func(X, xp, std, a[i]) U += u dU += du return U, dU def simulate_trials( Xp, a, ntrials, iterations, dt, noise_fac, std=1, ngaussians=3, xstarts=None, func=gaussian_nd, ): """Simulate trials Parameters ---------- Xp : list Centers of the Gaussians a : list Amplitudes of the Gaussians ntrials : int Number of trials iterations : int Number of iterations dt : float Time step noise_fac : float Noise factor Returns ------- X_dyn : array Trajectories of the trials """ nnrns = len(np.atleast_1d(Xp[0])) lan_fac = noise_fac * np.sqrt(dt) # Langevin factor X_dyn = np.empty((ntrials, iterations, nnrns)) # Trajectories of the trials for i in range(ntrials): sel_ix = np.random.randint(len(Xp)) if xstarts is None or len(xstarts) <= i: startstate = ( Xp[sel_ix] + np.random.randn(*X_dyn[i, 0].shape) * lan_fac ) # random initial condition else: startstate = xstarts[i] X_dyn[i, 0] = startstate for ii in range(iterations - 1): E, dE = mix_functions(X_dyn[i, ii], Xp, a, std=std, func=func) X_dyn[i, ii + 1] = ( X_dyn[i, ii] - dt * dE + lan_fac * np.random.randn(*dE.shape) ) return X_dyn
In [ ]:
Copied!

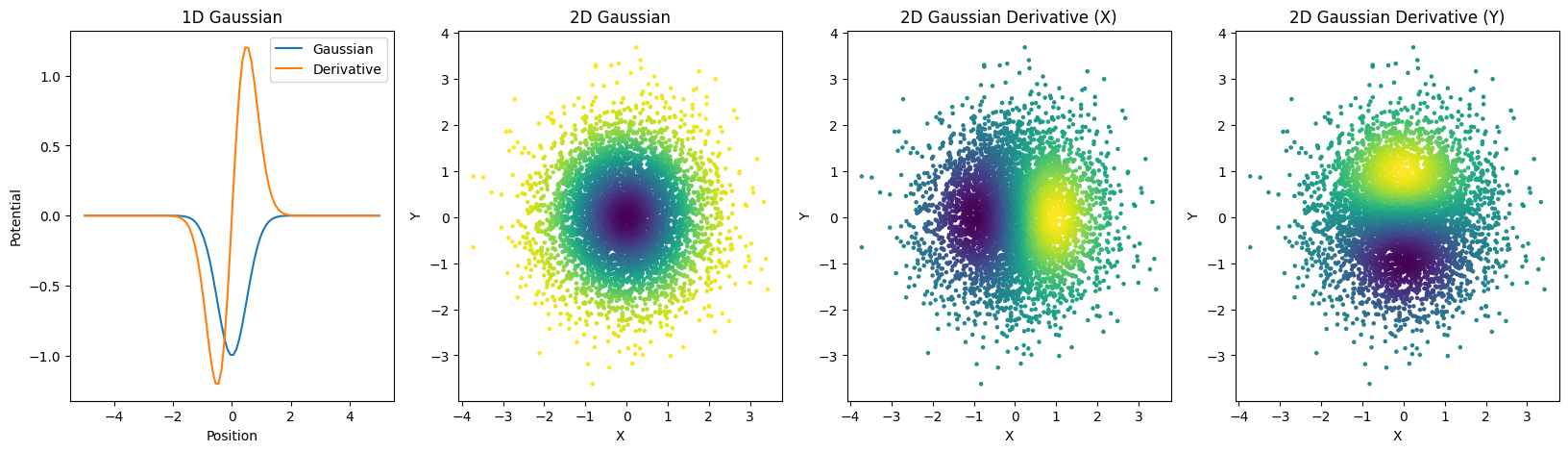

Xp_1D = [0] # Center of Gaussian
var_1D = 0.5 # Variance
X_1D = np.linspace(-5, 5, 100).reshape(-1, 1) # 1D input points
A_1D = 1.0 # Amplitude
G_1D, dG_1D = gaussian_nd(X_1D, Xp_1D, var_1D, A_1D)
Xp_2D = [0, 0]
var_2D = 1
X_2D = np.random.randn(5000, 2) # 2D input points
A_2D = 1.0 # Amplitude
G_2D, dG_2D = gaussian_nd(X_2D, Xp_2D, var_2D, A_2D)
fig, axes = plt.subplots(1, 4, figsize=(20, 5))
axes[0].plot(X_1D, G_1D, label="Gaussian")
axes[0].plot(X_1D, dG_1D, label="Derivative")
axes[0].set_title("1D Gaussian")
axes[0].set_xlabel("Position")
axes[0].set_ylabel("Potential")
axes[0].legend()
axes[1].scatter(X_2D[:, 0], X_2D[:, 1], c=G_2D, cmap="viridis", s=5)
axes[1].set_title("2D Gaussian")
axes[1].set_xlabel("X")
axes[1].set_ylabel("Y")
axes[2].scatter(X_2D[:, 0], X_2D[:, 1], c=dG_2D[:, 0], cmap="viridis", s=5)
axes[2].set_title("2D Gaussian Derivative (X)")
axes[2].set_xlabel("X")
axes[2].set_ylabel("Y")
axes[3].scatter(X_2D[:, 0], X_2D[:, 1], c=dG_2D[:, 1], cmap="viridis", s=5)
axes[3].set_title("2D Gaussian Derivative (Y)")
axes[3].set_xlabel("X")
axes[3].set_ylabel("Y")
plt.show()
Xp_1D = [0] # Center of Gaussian var_1D = 0.5 # Variance X_1D = np.linspace(-5, 5, 100).reshape(-1, 1) # 1D input points A_1D = 1.0 # Amplitude G_1D, dG_1D = gaussian_nd(X_1D, Xp_1D, var_1D, A_1D) Xp_2D = [0, 0] var_2D = 1 X_2D = np.random.randn(5000, 2) # 2D input points A_2D = 1.0 # Amplitude G_2D, dG_2D = gaussian_nd(X_2D, Xp_2D, var_2D, A_2D) fig, axes = plt.subplots(1, 4, figsize=(20, 5)) axes[0].plot(X_1D, G_1D, label="Gaussian") axes[0].plot(X_1D, dG_1D, label="Derivative") axes[0].set_title("1D Gaussian") axes[0].set_xlabel("Position") axes[0].set_ylabel("Potential") axes[0].legend() axes[1].scatter(X_2D[:, 0], X_2D[:, 1], c=G_2D, cmap="viridis", s=5) axes[1].set_title("2D Gaussian") axes[1].set_xlabel("X") axes[1].set_ylabel("Y") axes[2].scatter(X_2D[:, 0], X_2D[:, 1], c=dG_2D[:, 0], cmap="viridis", s=5) axes[2].set_title("2D Gaussian Derivative (X)") axes[2].set_xlabel("X") axes[2].set_ylabel("Y") axes[3].scatter(X_2D[:, 0], X_2D[:, 1], c=dG_2D[:, 1], cmap="viridis", s=5) axes[3].set_title("2D Gaussian Derivative (Y)") axes[3].set_xlabel("X") axes[3].set_ylabel("Y") plt.show()
Set parameters for the simulation generating the synthetic data influenced by multiple bump attractors.
Note: We artificially create xstarts throughout different simulations to set some of the initial states of the simulated trajectories to span the entire space for better coverage, which is not necessary in real data and intelligent initialization strategies can be used for simulations.
In [ ]:
Copied!
Xp = np.asarray([[-2, -2], [0, 0], [2, 2]])
attractordepths = [0.25, 0.2, 0.25]
ntrials = 3000
iterations = 500
domain_bins = 20
proj_bins = 25
dt = 0.1 # time step
noise_fac = 0.1 # noise factor
# Generate starting points
posxstarts = np.linspace(-3.5, 3.5, 15)
xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts)).T.reshape(-1, 2)
xstarts = np.repeat(xstarts, 5, axis=0)
np.random.shuffle(xstarts)
# Simulate dynamics
X_dyn = simulate_trials(
Xp,
attractordepths,
ntrials,
iterations,
dt,
noise_fac,
ngaussians=len(Xp),
xstarts=xstarts,
std=1,
)
Xp = np.asarray([[-2, -2], [0, 0], [2, 2]]) attractordepths = [0.25, 0.2, 0.25] ntrials = 3000 iterations = 500 domain_bins = 20 proj_bins = 25 dt = 0.1 # time step noise_fac = 0.1 # noise factor # Generate starting points posxstarts = np.linspace(-3.5, 3.5, 15) xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts)).T.reshape(-1, 2) xstarts = np.repeat(xstarts, 5, axis=0) np.random.shuffle(xstarts) # Simulate dynamics X_dyn = simulate_trials( Xp, attractordepths, ntrials, iterations, dt, noise_fac, ngaussians=len(Xp), xstarts=xstarts, std=1, )

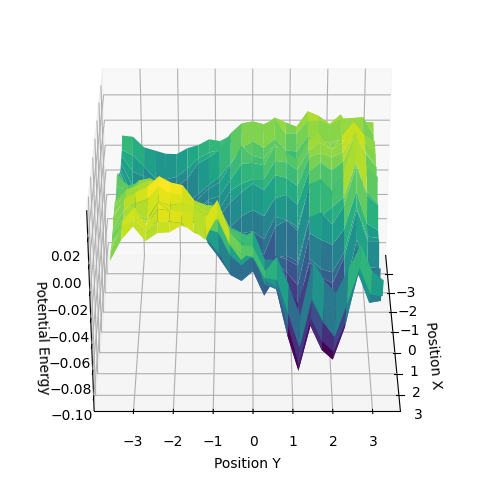

Section 2.2: Analytically estimate the potential energy landscape¶
Compute and validate the 2D potential landscape using analytical and simulated results.
Plot Descriptions:
- Potential Energy Landscape: Visualizes the 2D attractor structure.
- Dynamics of Trials: Shows particle trajectories across the 2D plane.
- Phase Plane: Depicts vector fields indicating gradients toward attractor basins.
- Time-Resolved Potential Estimation: Highlights temporal changes in the estimated landscape.
Key Insights:
- The agreement between the simulated dynamics and estimated landscapes demonstrates robustness in two dimensions.
In [ ]:
Copied!
%matplotlib inline
potential_pos, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = (
npy.ensemble.potential_landscape_nd(
X_dyn,
[np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)],
domain_bins,
)
)
X = np.linspace(-3.5, 3.5, proj_bins)
y = np.linspace(-3.5, 3.5, proj_bins)
X, Y = np.meshgrid(X, y)
X = np.stack((X, Y), axis=-1)
X = X.reshape(-1, 2)
E, dE = mix_functions(X, Xp, attractordepths, std=1, func=gaussian_nd)
gaussians_nd = []
for i in range(len(Xp)):
gaussian = gaussian_nd(X, Xp[i], 1, attractordepths[i])[0].reshape(
proj_bins, proj_bins
)
gaussian = (gaussian - np.min(gaussian)) / (np.max(gaussian) - np.min(gaussian))
gaussians_nd.append(gaussian)
gaussians_nd = np.stack(gaussians_nd, axis=-1)
def simulate(t=0):
fig = plt.figure(figsize=(17, 10))
axes = []
# make axes[0] 2D
axes.append(fig.add_subplot(2, 3, 1))
axes[-1].set_title("Potential Energy Landscape")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].imshow(gaussians_nd[::-1])
# add color label for each attractor outside the plot colored: red, green, blue
colors = ["cyan", "magenta", "yellow"]
for i, txt in enumerate(["Bump 1", "Bump 2", "Bump 3"]):
axes[-1].text(gaussians_nd.shape[0], 2 * i, txt, color=colors[i])
# make axes[1] 3D
axes.append(fig.add_subplot(2, 3, 4, projection="3d"))
X, Y = np.meshgrid(
np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)
)
axes[-1].plot_surface(X, Y, E.reshape(proj_bins, proj_bins), cmap="turbo")
# plot the xstarts over the surface
axes[-1].scatter(xstarts[:, 0], xstarts[:, 1], c="b", marker=".", alpha=0.05)
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
axes.append(fig.add_subplot(2, 3, 2))
for i in range(ntrials):
axes[-1].plot(*(X_dyn[i].T), color="black", alpha=0.02)
axes[-1].plot(*(X_dyn[0].T), linewidth=1, label="Trial 1", alpha=0.5)
# start with green and end with red
axes[-1].plot(*X_dyn[0, 0], "go", label="Start")
axes[-1].plot(*X_dyn[0, -1], "rx", label="End")
axes[-1].plot(*(X_dyn[-1].T), linewidth=1, label=f"Trial {ntrials}", alpha=0.5)
axes[-1].plot(*X_dyn[-1, 0], "go")
axes[-1].plot(*X_dyn[-1, -1], "rx")
axes[-1].set_title("Dynamics of trials")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].legend()
axes.append(fig.add_subplot(2, 3, 3, projection="3d"))
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
axes[-1].plot_surface(X, Y, np.nanmean(potential_pos, axis=0), cmap="turbo")
axes[-1].set_title("Potential Estimation")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
axes.append(fig.add_subplot(2, 3, 5))
# plot vector field
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
U = grad_pos_t_svm[:, :, t, 0]
V = grad_pos_t_svm[:, :, t, 1]
axes[-1].quiver(X, Y, U, V)
axes[-1].set_title("Phase plane")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes.append(fig.add_subplot(2, 3, 6, projection="3d"))
axes[-1].plot_surface(
X, Y, np.nanmean(potential_pos_t_nrns[:, :, t], axis=-1), cmap="turbo"
)
axes[-1].set_title("Time-resolved Potential Estimation")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
plt.show()
_ = widgets.interact(simulate, t=(0, domain_bins - 1))
%matplotlib inline potential_pos, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = ( npy.ensemble.potential_landscape_nd( X_dyn, [np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)], domain_bins, ) ) X = np.linspace(-3.5, 3.5, proj_bins) y = np.linspace(-3.5, 3.5, proj_bins) X, Y = np.meshgrid(X, y) X = np.stack((X, Y), axis=-1) X = X.reshape(-1, 2) E, dE = mix_functions(X, Xp, attractordepths, std=1, func=gaussian_nd) gaussians_nd = [] for i in range(len(Xp)): gaussian = gaussian_nd(X, Xp[i], 1, attractordepths[i])[0].reshape( proj_bins, proj_bins ) gaussian = (gaussian - np.min(gaussian)) / (np.max(gaussian) - np.min(gaussian)) gaussians_nd.append(gaussian) gaussians_nd = np.stack(gaussians_nd, axis=-1) def simulate(t=0): fig = plt.figure(figsize=(17, 10)) axes = [] # make axes[0] 2D axes.append(fig.add_subplot(2, 3, 1)) axes[-1].set_title("Potential Energy Landscape") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].imshow(gaussians_nd[::-1]) # add color label for each attractor outside the plot colored: red, green, blue colors = ["cyan", "magenta", "yellow"] for i, txt in enumerate(["Bump 1", "Bump 2", "Bump 3"]): axes[-1].text(gaussians_nd.shape[0], 2 * i, txt, color=colors[i]) # make axes[1] 3D axes.append(fig.add_subplot(2, 3, 4, projection="3d")) X, Y = np.meshgrid( np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins) ) axes[-1].plot_surface(X, Y, E.reshape(proj_bins, proj_bins), cmap="turbo") # plot the xstarts over the surface axes[-1].scatter(xstarts[:, 0], xstarts[:, 1], c="b", marker=".", alpha=0.05) axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") axes.append(fig.add_subplot(2, 3, 2)) for i in range(ntrials): axes[-1].plot(*(X_dyn[i].T), color="black", alpha=0.02) axes[-1].plot(*(X_dyn[0].T), linewidth=1, label="Trial 1", alpha=0.5) # start with green and end with red axes[-1].plot(*X_dyn[0, 0], "go", label="Start") axes[-1].plot(*X_dyn[0, -1], "rx", label="End") axes[-1].plot(*(X_dyn[-1].T), linewidth=1, label=f"Trial {ntrials}", alpha=0.5) axes[-1].plot(*X_dyn[-1, 0], "go") axes[-1].plot(*X_dyn[-1, -1], "rx") axes[-1].set_title("Dynamics of trials") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].legend() axes.append(fig.add_subplot(2, 3, 3, projection="3d")) X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) axes[-1].plot_surface(X, Y, np.nanmean(potential_pos, axis=0), cmap="turbo") axes[-1].set_title("Potential Estimation") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") axes.append(fig.add_subplot(2, 3, 5)) # plot vector field X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) U = grad_pos_t_svm[:, :, t, 0] V = grad_pos_t_svm[:, :, t, 1] axes[-1].quiver(X, Y, U, V) axes[-1].set_title("Phase plane") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes.append(fig.add_subplot(2, 3, 6, projection="3d")) axes[-1].plot_surface( X, Y, np.nanmean(potential_pos_t_nrns[:, :, t], axis=-1), cmap="turbo" ) axes[-1].set_title("Time-resolved Potential Estimation") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") plt.show() _ = widgets.interact(simulate, t=(0, domain_bins - 1))
interactive(children=(IntSlider(value=0, description='t', max=19), Output()), _dom_classes=('widget-interact',… Visualize the time-resolved potential estimation to observe how the landscape evolves over time.
In [ ]:
Copied!
t_steps = domain_bins # Number of time steps
def update_surface(t, ax, surf):
"""
Update the surface plot for time `t`.
"""
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
Z = -np.nanmean(
np.asarray(
[np.nancumsum(grad_pos_t_svm[:, :, t, nrn], axis=nrn) for nrn in range(2)]
),
axis=0,
)
surf[0].remove() # Remove old surface
surf[0] = ax.plot_surface(X, Y, Z, cmap="viridis", edgecolor="none")
def animate(t):
"""
Update the plot for frame t and rotate the view.
"""
update_surface(t, ax, surf)
ax.view_init(elev=30, azim=t * 360 / t_steps) # Rotate azimuth over time

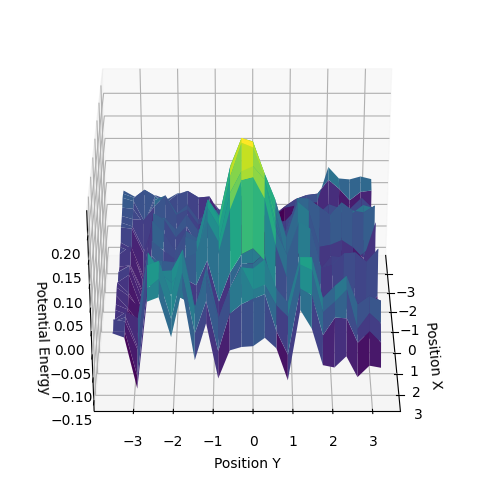

# Create figure and 3D plot
fig = plt.figure(figsize=(6, 6))
ax = fig.add_subplot(111, projection="3d")
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
Z = np.nanmean(potential_pos_t_nrns[:, :, 0], axis=-1)
surf = [ax.plot_surface(X, Y, Z, cmap="viridis", edgecolor="none")]
ax.set_xlabel("Position X")
ax.set_ylabel("Position Y")
ax.set_zlabel("Potential Energy")
# Animate
anim = FuncAnimation(fig, animate, frames=t_steps, interval=100, blit=False)
HTML(anim.to_jshtml())
t_steps = domain_bins # Number of time steps def update_surface(t, ax, surf): """ Update the surface plot for time `t`. """ X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) Z = -np.nanmean( np.asarray( [np.nancumsum(grad_pos_t_svm[:, :, t, nrn], axis=nrn) for nrn in range(2)] ), axis=0, ) surf[0].remove() # Remove old surface surf[0] = ax.plot_surface(X, Y, Z, cmap="viridis", edgecolor="none") def animate(t): """ Update the plot for frame t and rotate the view. """ update_surface(t, ax, surf) ax.view_init(elev=30, azim=t * 360 / t_steps) # Rotate azimuth over time # Create figure and 3D plot fig = plt.figure(figsize=(6, 6)) ax = fig.add_subplot(111, projection="3d") X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) Z = np.nanmean(potential_pos_t_nrns[:, :, 0], axis=-1) surf = [ax.plot_surface(X, Y, Z, cmap="viridis", edgecolor="none")] ax.set_xlabel("Position X") ax.set_ylabel("Position Y") ax.set_zlabel("Potential Energy") # Animate anim = FuncAnimation(fig, animate, frames=t_steps, interval=100, blit=False) HTML(anim.to_jshtml())
Out[ ]:
Section 2.3: Simulate 2D trials for a ring attractor¶
We simulate a 2D system with a ring attractor, a special case where attractors form a ring structure, defined by:
$$ \psi(x, y) = \frac{1}{\pi \sigma^4} (1 - \frac{x^2 + y^2}{2 _ \sigma^2}) {\rm e}^{-\frac{x^2 + y^2}{2 _ \sigma^2}}$$
where $\sigma$ is the standard deviation of the repulsive potential.
Goal:
- To understand how ring attractors influence particle dynamics.
Key Insights:
- Particles converge to the ring attractor, forming a stable ring structure.
In [ ]:
Copied!
def mexican_hat_nd(X, X0, sig, A):
"""n-dimensional Mexican hat function
Negative normalized second derivative of a Gaussian function.
Parameters
----------
X : np.ndarray
n-dimensional grid space. Shape: (n_points, ndim).
X0 : np.ndarray
Centers of the Mexican hat for each dimension (same shape as X).
sig : np.ndarray or float
Standard deviations for each dimension (either same shape as X or a single float).
A : float
Amplitude of the Mexican hat.
Returns
-------
G : np.ndarray
Value of the n-dimensional Mexican hat function at X.
dG : np.ndarray
Derivative of the n-dimensional Mexican hat function along each dimension.
"""
X = np.atleast_2d(X)
X0 = np.atleast_1d(X0)
sig = np.atleast_1d(sig)
# Compute the Mexican hat function values across the grid
exponent = np.sum((X - X0) ** 2 / (2 * sig**2), axis=-1)
M = A * (1 - exponent) * np.exp(-exponent) / sig**4
dM = -(
((X - X0) / (np.pi * sig**6)).T * np.exp(-exponent) * (2 - exponent)
).T # shape: (n_points, ndim)
return M, dM
def mexican_hat_nd(X, X0, sig, A): """n-dimensional Mexican hat function Negative normalized second derivative of a Gaussian function. Parameters ---------- X : np.ndarray n-dimensional grid space. Shape: (n_points, ndim). X0 : np.ndarray Centers of the Mexican hat for each dimension (same shape as X). sig : np.ndarray or float Standard deviations for each dimension (either same shape as X or a single float). A : float Amplitude of the Mexican hat. Returns ------- G : np.ndarray Value of the n-dimensional Mexican hat function at X. dG : np.ndarray Derivative of the n-dimensional Mexican hat function along each dimension. """ X = np.atleast_2d(X) X0 = np.atleast_1d(X0) sig = np.atleast_1d(sig) # Compute the Mexican hat function values across the grid exponent = np.sum((X - X0) ** 2 / (2 * sig**2), axis=-1) M = A * (1 - exponent) * np.exp(-exponent) / sig**4 dM = -( ((X - X0) / (np.pi * sig**6)).T * np.exp(-exponent) * (2 - exponent) ).T # shape: (n_points, ndim) return M, dM
In [ ]:
Copied!
Xp_1D = [0] # Center of Gaussian
cov_1D = 0.5 # Variance
X_1D = np.linspace(-5, 5, proj_bins).reshape(-1, 1) # 1D input points
A_1D = 1.0 # Amplitude
G_1D, dG_1D = mexican_hat_nd(X_1D, Xp_1D, cov_1D, A_1D)
Xp_2D = [0, 0]
X_2D = 3 * np.random.randn(7500, 2) # 2D input points
A_2D = 1.0 # Amplitude
G_2D, dG_2D = mexican_hat_nd(X_2D, Xp_2D, 1, A_2D)
fig, axes = plt.subplots(1, 4, figsize=(20, 5))
axes = axes.ravel()
axes[0].plot(X_1D, G_1D, label="Mexican Hat")
axes[0].plot(X_1D, dG_1D.ravel(), label="Derivative")
axes[0].set_title("1D Mexican Hat")
axes[0].set_xlabel("Position")
axes[0].set_ylabel("Value")
axes[0].legend()
axes[1].remove()
axes[1] = fig.add_subplot(1, 4, 2, projection="3d")
X, Y = np.meshgrid(X_1D, X_1D)
X_in = np.stack((X, Y), axis=-1)
X_in = X_in.reshape(-1, 2)
# test mexican hat once
axes[1].plot_surface(
X,
Y,
mexican_hat_nd(X_in, [0, 0], 1, 1)[0].reshape(proj_bins, proj_bins),
cmap="plasma",
)
axes[1].set_title("2D Mexican Hat")
axes[1].set_xlabel("X")
axes[1].set_ylabel("Y")
axes[2].remove()
axes[2] = fig.add_subplot(1, 4, 3, projection="3d")
axes[2].plot_surface(
X,
Y,
mexican_hat_nd(X_in, [0, 0], 1, 1)[1][:, 0].reshape(proj_bins, proj_bins),
cmap="plasma",
)
axes[2].set_title("2D Mexican Hat Derivative (X)")
axes[2].set_xlabel("X")
axes[2].set_ylabel("Y")
axes[3].remove()
axes[3] = fig.add_subplot(1, 4, 4, projection="3d")
axes[3].plot_surface(
X,
Y,
mexican_hat_nd(X_in, [0, 0], 1, 1)[1][:, 1].reshape(proj_bins, proj_bins),
cmap="plasma",
)
axes[3].set_title("2D Mexican Hat Derivative (Y)")
axes[3].set_xlabel("X")
axes[3].set_ylabel("Y")
plt.show()
Xp_1D = [0] # Center of Gaussian cov_1D = 0.5 # Variance X_1D = np.linspace(-5, 5, proj_bins).reshape(-1, 1) # 1D input points A_1D = 1.0 # Amplitude G_1D, dG_1D = mexican_hat_nd(X_1D, Xp_1D, cov_1D, A_1D) Xp_2D = [0, 0] X_2D = 3 * np.random.randn(7500, 2) # 2D input points A_2D = 1.0 # Amplitude G_2D, dG_2D = mexican_hat_nd(X_2D, Xp_2D, 1, A_2D) fig, axes = plt.subplots(1, 4, figsize=(20, 5)) axes = axes.ravel() axes[0].plot(X_1D, G_1D, label="Mexican Hat") axes[0].plot(X_1D, dG_1D.ravel(), label="Derivative") axes[0].set_title("1D Mexican Hat") axes[0].set_xlabel("Position") axes[0].set_ylabel("Value") axes[0].legend() axes[1].remove() axes[1] = fig.add_subplot(1, 4, 2, projection="3d") X, Y = np.meshgrid(X_1D, X_1D) X_in = np.stack((X, Y), axis=-1) X_in = X_in.reshape(-1, 2) # test mexican hat once axes[1].plot_surface( X, Y, mexican_hat_nd(X_in, [0, 0], 1, 1)[0].reshape(proj_bins, proj_bins), cmap="plasma", ) axes[1].set_title("2D Mexican Hat") axes[1].set_xlabel("X") axes[1].set_ylabel("Y") axes[2].remove() axes[2] = fig.add_subplot(1, 4, 3, projection="3d") axes[2].plot_surface( X, Y, mexican_hat_nd(X_in, [0, 0], 1, 1)[1][:, 0].reshape(proj_bins, proj_bins), cmap="plasma", ) axes[2].set_title("2D Mexican Hat Derivative (X)") axes[2].set_xlabel("X") axes[2].set_ylabel("Y") axes[3].remove() axes[3] = fig.add_subplot(1, 4, 4, projection="3d") axes[3].plot_surface( X, Y, mexican_hat_nd(X_in, [0, 0], 1, 1)[1][:, 1].reshape(proj_bins, proj_bins), cmap="plasma", ) axes[3].set_title("2D Mexican Hat Derivative (Y)") axes[3].set_xlabel("X") axes[3].set_ylabel("Y") plt.show()
In [ ]:
Copied!
Xp = np.asarray([[0, 0]])
attractordepths = [0.25]
ntrials = 3000
iterations = 100
domain_bins = 20
proj_bins = 25
dt = 0.2 # time step
noise_fac = 0.1 # noise factor
# Generate starting points
posxstarts = np.linspace(-3.5, 3.5, 15)
xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts)).T.reshape(-1, 2)
xstarts = np.repeat(xstarts, 5, axis=0)
np.random.shuffle(xstarts)
# Simulate dynamics
X_dyn = simulate_trials(
Xp,
attractordepths,
ntrials,
iterations,
dt,
noise_fac,
ngaussians=len(Xp),
xstarts=xstarts,
func=mexican_hat_nd,
)
Xp = np.asarray([[0, 0]]) attractordepths = [0.25] ntrials = 3000 iterations = 100 domain_bins = 20 proj_bins = 25 dt = 0.2 # time step noise_fac = 0.1 # noise factor # Generate starting points posxstarts = np.linspace(-3.5, 3.5, 15) xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts)).T.reshape(-1, 2) xstarts = np.repeat(xstarts, 5, axis=0) np.random.shuffle(xstarts) # Simulate dynamics X_dyn = simulate_trials( Xp, attractordepths, ntrials, iterations, dt, noise_fac, ngaussians=len(Xp), xstarts=xstarts, func=mexican_hat_nd, )
Section 2.4: Analytically estimate the potential energy landscape¶
Estimate the potential landscape for the ring attractor and compare it to the ground-truth potential.
Plot Descriptions:
- Potential Energy Landscape: Displays the ring attractor structure.
- Dynamics of Trials: Shows particle trajectories in the 2D plane.
- Phase Plane: Depicts vector fields indicating gradients toward the ring attractor.
- Time-Resolved Potential Estimation: Highlights temporal changes in the estimated landscape.
Key Insights:
- The estimated potential closely matches the analytical potential, confirming the method's validity.
In [ ]:
Copied!
%matplotlib inline
potential_pos, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = (
npy.ensemble.potential_landscape_nd(
X_dyn,
[np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)],
domain_bins,
)
)
X = np.linspace(-3.5, 3.5, proj_bins)
y = np.linspace(-3.5, 3.5, proj_bins)
X, Y = np.meshgrid(X, y)
X = np.stack((X, Y), axis=-1)
X = X.reshape(-1, 2)
E, dE = mix_functions(X, Xp, attractordepths, func=mexican_hat_nd)
gaussians_nd = []
for i in range(len(Xp)):
gaussian = mexican_hat_nd(X, Xp[i], 1, attractordepths[i])[0].reshape(
proj_bins, proj_bins
)
gaussian = (gaussian - np.min(gaussian)) / (np.max(gaussian) - np.min(gaussian))
gaussians_nd.append(gaussian)
gaussians_nd = np.stack(gaussians_nd, axis=-1)
def simulate(t=0):
fig = plt.figure(figsize=(17, 10))
axes = []
# make axes[0] 2D
axes.append(fig.add_subplot(2, 3, 1))
axes[-1].set_title("Potential Energy Landscape")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].imshow(gaussians_nd[::-1], cmap="turbo")
# make axes[1] 3D
axes.append(fig.add_subplot(2, 3, 4, projection="3d"))
X, Y = np.meshgrid(
np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)
)
axes[-1].plot_surface(X, Y, E.reshape(proj_bins, proj_bins), cmap="turbo")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
axes.append(fig.add_subplot(2, 3, 2))
for i in range(ntrials):
axes[-1].plot(*(X_dyn[i].T), color="black", alpha=0.02)
axes[-1].plot(*(X_dyn[0].T), linewidth=1, label="Trial 1", alpha=0.5)
# start with green and end with red
axes[-1].plot(*X_dyn[0, 0], "go", label="Start")
axes[-1].plot(*X_dyn[0, -1], "rx", label="End")
axes[-1].plot(*(X_dyn[-1].T), linewidth=1, label=f"Trial {ntrials}", alpha=0.5)
axes[-1].plot(*X_dyn[-1, 0], "go")
axes[-1].plot(*X_dyn[-1, -1], "rx")
axes[-1].set_title("Dynamics of trials")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].legend()
axes.append(fig.add_subplot(2, 3, 3, projection="3d"))
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
axes[-1].plot_surface(X, Y, np.nanmean(potential_pos, axis=0), cmap="turbo")
axes[-1].set_title("Potential Estimation")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
axes.append(fig.add_subplot(2, 3, 5))
# plot vector field
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
U = grad_pos_t_svm[:, :, t, 0]
V = grad_pos_t_svm[:, :, t, 1]
axes[-1].quiver(X, Y, U, V)
axes[-1].set_title("Phase plane")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes.append(fig.add_subplot(2, 3, 6, projection="3d"))
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
axes[-1].plot_surface(
X, Y, np.nanmean(potential_pos_t_nrns[:, :, t], axis=-1), cmap="turbo"
)
axes[-1].set_title("Time-resolved Potential Estimation")
axes[-1].set_xlabel("Position X")
axes[-1].set_ylabel("Position Y")
axes[-1].set_zlabel("Energy")
plt.show()
_ = widgets.interact(simulate, t=(0, domain_bins - 1))
%matplotlib inline potential_pos, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = ( npy.ensemble.potential_landscape_nd( X_dyn, [np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins)], domain_bins, ) ) X = np.linspace(-3.5, 3.5, proj_bins) y = np.linspace(-3.5, 3.5, proj_bins) X, Y = np.meshgrid(X, y) X = np.stack((X, Y), axis=-1) X = X.reshape(-1, 2) E, dE = mix_functions(X, Xp, attractordepths, func=mexican_hat_nd) gaussians_nd = [] for i in range(len(Xp)): gaussian = mexican_hat_nd(X, Xp[i], 1, attractordepths[i])[0].reshape( proj_bins, proj_bins ) gaussian = (gaussian - np.min(gaussian)) / (np.max(gaussian) - np.min(gaussian)) gaussians_nd.append(gaussian) gaussians_nd = np.stack(gaussians_nd, axis=-1) def simulate(t=0): fig = plt.figure(figsize=(17, 10)) axes = [] # make axes[0] 2D axes.append(fig.add_subplot(2, 3, 1)) axes[-1].set_title("Potential Energy Landscape") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].imshow(gaussians_nd[::-1], cmap="turbo") # make axes[1] 3D axes.append(fig.add_subplot(2, 3, 4, projection="3d")) X, Y = np.meshgrid( np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins) ) axes[-1].plot_surface(X, Y, E.reshape(proj_bins, proj_bins), cmap="turbo") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") axes.append(fig.add_subplot(2, 3, 2)) for i in range(ntrials): axes[-1].plot(*(X_dyn[i].T), color="black", alpha=0.02) axes[-1].plot(*(X_dyn[0].T), linewidth=1, label="Trial 1", alpha=0.5) # start with green and end with red axes[-1].plot(*X_dyn[0, 0], "go", label="Start") axes[-1].plot(*X_dyn[0, -1], "rx", label="End") axes[-1].plot(*(X_dyn[-1].T), linewidth=1, label=f"Trial {ntrials}", alpha=0.5) axes[-1].plot(*X_dyn[-1, 0], "go") axes[-1].plot(*X_dyn[-1, -1], "rx") axes[-1].set_title("Dynamics of trials") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].legend() axes.append(fig.add_subplot(2, 3, 3, projection="3d")) X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) axes[-1].plot_surface(X, Y, np.nanmean(potential_pos, axis=0), cmap="turbo") axes[-1].set_title("Potential Estimation") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") axes.append(fig.add_subplot(2, 3, 5)) # plot vector field X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) U = grad_pos_t_svm[:, :, t, 0] V = grad_pos_t_svm[:, :, t, 1] axes[-1].quiver(X, Y, U, V) axes[-1].set_title("Phase plane") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes.append(fig.add_subplot(2, 3, 6, projection="3d")) X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) axes[-1].plot_surface( X, Y, np.nanmean(potential_pos_t_nrns[:, :, t], axis=-1), cmap="turbo" ) axes[-1].set_title("Time-resolved Potential Estimation") axes[-1].set_xlabel("Position X") axes[-1].set_ylabel("Position Y") axes[-1].set_zlabel("Energy") plt.show() _ = widgets.interact(simulate, t=(0, domain_bins - 1))
interactive(children=(IntSlider(value=0, description='t', max=19), Output()), _dom_classes=('widget-interact',… Visualize the time-resolved potential estimation for the ring attractor.
In [ ]:
Copied!
from matplotlib.animation import FuncAnimation
# Dummy data to simulate inputs
t_steps = domain_bins # Number of time steps
def animate(t):
"""
Update the plot for frame t and rotate the view.
"""
update_surface(t, ax, surf)
ax.view_init(elev=30, azim=t / 2 * 360 / t_steps) # Rotate azimuth over time
# Create figure and 3D plot
fig = plt.figure(figsize=(6, 6))
ax = fig.add_subplot(111, projection="3d")
X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0])
Z = np.nanmean(potential_pos_t_nrns[:, :, 0], axis=-1)
surf = [ax.plot_surface(X, Y, Z, cmap="turbo", edgecolor="none")]
ax.set_xlabel("Position X")
ax.set_ylabel("Position Y")
ax.set_zlabel("Potential Energy")
# Animate
anim = FuncAnimation(fig, animate, frames=t_steps, interval=100, blit=False)
HTML(anim.to_jshtml())
from matplotlib.animation import FuncAnimation # Dummy data to simulate inputs t_steps = domain_bins # Number of time steps def animate(t): """ Update the plot for frame t and rotate the view. """ update_surface(t, ax, surf) ax.view_init(elev=30, azim=t / 2 * 360 / t_steps) # Rotate azimuth over time # Create figure and 3D plot fig = plt.figure(figsize=(6, 6)) ax = fig.add_subplot(111, projection="3d") X, Y = np.meshgrid(latentedges[:-1, 0], latentedges[:-1, 0]) Z = np.nanmean(potential_pos_t_nrns[:, :, 0], axis=-1) surf = [ax.plot_surface(X, Y, Z, cmap="turbo", edgecolor="none")] ax.set_xlabel("Position X") ax.set_ylabel("Position Y") ax.set_zlabel("Potential Energy") # Animate anim = FuncAnimation(fig, animate, frames=t_steps, interval=100, blit=False) HTML(anim.to_jshtml())
Out[ ]:
Section 3: 3D Energy Landscape¶
This section explores the dynamics and estimation of potential landscapes in three dimensions.
Section 3.1: Simulate 3D trials using Langevin dynamics with noise¶
Simulate 3D dynamics under Gaussian attractors to examine the additional complexity introduced by higher dimensions.
Purpose:
- To study how particle trajectories behave in a 3D space with noise.
Plot Descriptions:
- Dynamics of Trials: Shows particle trajectories in the 3D space.
Key Insights:
- Trajectories exhibit complex convergence patterns due to added dimensionality.
In [ ]:
Copied!
Xp = np.asarray(
[
[-1.5, -1.5, -1.5],
[0, 0, 0],
[1.5, 1.5, 1.5],
]
)
attractordepths = [1, 0.95, 1]
ntrials = 5000
iterations = 500
domain_bins = 20
proj_bins = 20
dt = 0.1 # time step
noise_fac = 0.05 # noise factor
attractorfunc = gaussian_nd
# Generate starting points
posxstarts = np.linspace(-3.5, 3.5, 30)
xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts, posxstarts)).T.reshape(-1, 3)
xstarts = np.repeat(xstarts, 1, axis=0)
np.random.shuffle(xstarts)
# Simulate dynamics
X_dyn = simulate_trials(
Xp,
attractordepths,
ntrials,
iterations,
dt,
noise_fac,
ngaussians=len(Xp),
xstarts=xstarts,
func=attractorfunc,
std=1,
) # shape: (ntrials, iterations, 3)
Xp = np.asarray( [ [-1.5, -1.5, -1.5], [0, 0, 0], [1.5, 1.5, 1.5], ] ) attractordepths = [1, 0.95, 1] ntrials = 5000 iterations = 500 domain_bins = 20 proj_bins = 20 dt = 0.1 # time step noise_fac = 0.05 # noise factor attractorfunc = gaussian_nd # Generate starting points posxstarts = np.linspace(-3.5, 3.5, 30) xstarts = np.asarray(np.meshgrid(posxstarts, posxstarts, posxstarts)).T.reshape(-1, 3) xstarts = np.repeat(xstarts, 1, axis=0) np.random.shuffle(xstarts) # Simulate dynamics X_dyn = simulate_trials( Xp, attractordepths, ntrials, iterations, dt, noise_fac, ngaussians=len(Xp), xstarts=xstarts, func=attractorfunc, std=1, ) # shape: (ntrials, iterations, 3)
In [ ]:
Copied!
# convert X_dyn to 2D with columns as (trial number, time step, x, y, z)
X_dyn_2D = np.concatenate(
[
np.repeat(np.arange(ntrials), iterations).reshape(-1, 1),
np.broadcast_to(np.arange(iterations), (ntrials, iterations))
.flatten()
.reshape(-1, 1),
X_dyn.reshape(-1, 3),
],
axis=1,
)
# convert X_dyn to 2D with columns as (trial number, time step, x, y, z) X_dyn_2D = np.concatenate( [ np.repeat(np.arange(ntrials), iterations).reshape(-1, 1), np.broadcast_to(np.arange(iterations), (ntrials, iterations)) .flatten() .reshape(-1, 1), X_dyn.reshape(-1, 3), ], axis=1, )
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
viewer.add_tracks(X_dyn_2D, tail_width=1, name="Dynamics of trials")
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 90.0)
animation.capture_keyframe()
max_steps = int(viewer.dims.range[0][1])
# rotate the camera 360 degrees while advancing the time
for i in range(0, max_steps, 3):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.075 * angle_inc,
0.0 + angle_inc,
90.0 + 0.1 * angle_inc,
)
viewer.dims.current_step = (i, *viewer.dims.current_step[1:])
animation.capture_keyframe(steps=1)
animation.animate("anim3DTrajs.mp4", canvas_only=True)
HTML('<video controls src="anim3DTrajs.mp4" />')
viewer = napari.Viewer(ndisplay=3) viewer.add_tracks(X_dyn_2D, tail_width=1, name="Dynamics of trials") animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 90.0) animation.capture_keyframe() max_steps = int(viewer.dims.range[0][1]) # rotate the camera 360 degrees while advancing the time for i in range(0, max_steps, 3): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.075 * angle_inc, 0.0 + angle_inc, 90.0 + 0.1 * angle_inc, ) viewer.dims.current_step = (i, *viewer.dims.current_step[1:]) animation.capture_keyframe(steps=1) animation.animate("anim3DTrajs.mp4", canvas_only=True) HTML('')
Rendering frames...
0%| | 0/168 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1322, 786) to (1328, 800) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). 1%| | 1/168 [00:00<00:59, 2.79it/s][swscaler @ 0x6294300] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 168/168 [00:38<00:00, 4.34it/s]
Out[ ]:
Section 3.2: Analytically estimate the potential energy landscape¶
Visualize and validate the estimated 3D landscape against the analytical potential.
Plot Descriptions:
- Potential Energy Landscape: Displays the 3D attractor structure.
- Time-Resolved Potential Estimation: Highlights temporal changes in the estimated landscape.
Key Insights:
- The estimated potential closely matches the analytical potential, confirming the method's validity.
In [ ]:
Copied!
%matplotlib inline
pot_timeaveraged, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = (
npy.ensemble.potential_landscape_nd(
X_dyn,
[
np.linspace(-3.5, 3.5, proj_bins),
np.linspace(-3.5, 3.5, proj_bins),
np.linspace(-3.5, 3.5, proj_bins),
],
domain_bins,
nanborderempty=True,
)
)
X = np.linspace(-3.5, 3.5, proj_bins)
y = np.linspace(-3.5, 3.5, proj_bins)
X, Y, Z = np.meshgrid(X, y, y)
X = np.stack((X, Y, Z), axis=-1)
X = X.reshape(-1, 3)
E, dE = mix_functions(X, Xp, attractordepths, func=mexican_hat_nd)
gaussians_nd = []
for i in range(len(Xp)):
gaussian = attractorfunc(X, Xp[i], 1, attractordepths[i])[0].reshape(
proj_bins, proj_bins, proj_bins
)
gaussian = (gaussian - np.max(gaussian)) / (np.max(gaussian) - np.min(gaussian)) + 1
gaussians_nd.append(gaussian)
gaussians_nd = np.stack(gaussians_nd, axis=-1)
%matplotlib inline pot_timeaveraged, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges = ( npy.ensemble.potential_landscape_nd( X_dyn, [ np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins), np.linspace(-3.5, 3.5, proj_bins), ], domain_bins, nanborderempty=True, ) ) X = np.linspace(-3.5, 3.5, proj_bins) y = np.linspace(-3.5, 3.5, proj_bins) X, Y, Z = np.meshgrid(X, y, y) X = np.stack((X, Y, Z), axis=-1) X = X.reshape(-1, 3) E, dE = mix_functions(X, Xp, attractordepths, func=mexican_hat_nd) gaussians_nd = [] for i in range(len(Xp)): gaussian = attractorfunc(X, Xp[i], 1, attractordepths[i])[0].reshape( proj_bins, proj_bins, proj_bins ) gaussian = (gaussian - np.max(gaussian)) / (np.max(gaussian) - np.min(gaussian)) + 1 gaussians_nd.append(gaussian) gaussians_nd = np.stack(gaussians_nd, axis=-1)
Potential energy landscape averaged over time provide a clearer view of the attractor structure.
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
viewer.add_image(
np.nanmean(pot_timeaveraged, axis=0),
colormap="twilight",
interpolation2d="nearest",
rendering="minip",
name="Estimated Potential Energy Landscape",
)
viewer.add_image(
gaussians_nd.mean(-1),
colormap="twilight",
interpolation2d="nearest",
rendering="minip",
name="Original Potential Energy Landscape",
)
# grid view
viewer.grid.enabled = True
# napari.utils.nbscreenshot(viewer, canvas_only=True)
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 90.0)
animation.capture_keyframe()
max_steps = 360
# rotate the camera 360 degrees while advancing the time
for i in range(0, max_steps, 3):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.01 * angle_inc,
0.0 + 0.02 * angle_inc,
90.0 + angle_inc,
)
animation.capture_keyframe(steps=1)
animation.animate("anim3DPot.mp4", canvas_only=True)
HTML('<video controls src="anim3DPot.mp4" />')
viewer = napari.Viewer(ndisplay=3) viewer.add_image( np.nanmean(pot_timeaveraged, axis=0), colormap="twilight", interpolation2d="nearest", rendering="minip", name="Estimated Potential Energy Landscape", ) viewer.add_image( gaussians_nd.mean(-1), colormap="twilight", interpolation2d="nearest", rendering="minip", name="Original Potential Energy Landscape", ) # grid view viewer.grid.enabled = True # napari.utils.nbscreenshot(viewer, canvas_only=True) animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 90.0) animation.capture_keyframe() max_steps = 360 # rotate the camera 360 degrees while advancing the time for i in range(0, max_steps, 3): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.01 * angle_inc, 0.0 + 0.02 * angle_inc, 90.0 + angle_inc, ) animation.capture_keyframe(steps=1) animation.animate("anim3DPot.mp4", canvas_only=True) HTML('')
Rendering frames...
0%| | 0/121 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1307, 808) to (1312, 816) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). [swscaler @ 0x64e2300] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 121/121 [00:01<00:00, 66.71it/s]
Out[ ]:
Time-resolved potential estimation visualizes the evolution of the landscape over time.
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
pot_timeresolved = np.nanmean(
np.asarray(
[
potential_pos_t_nrns[:, :, :, :, nrn]
for nrn in range(potential_pos_t_nrns.shape[-1])
]
),
axis=0,
)
viewer.add_image(
pot_timeresolved.T,
colormap="twilight",
interpolation="nearest",
rendering="minip",
name="Estimated Potential Energy Landscape",
)
# grid view
viewer.grid.enabled = True
# napari.utils.nbscreenshot(viewer, canvas_only=True)
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 90.0)
animation.capture_keyframe()
max_steps = int(viewer.dims.range[0][1])
# rotate the camera 360 degrees while advancing the time
for i in np.linspace(0, max_steps - 1, max_steps * 4):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.075 * angle_inc,
0.0 + angle_inc,
90.0 + 0.1 * angle_inc,
)
viewer.dims.current_step = (i, *viewer.dims.current_step[1:])
animation.capture_keyframe(steps=1)
animation.animate("anim3DPotTimeResolved.mp4", canvas_only=True)
HTML('<video controls src="anim3DPotTimeResolved.mp4" />')
viewer = napari.Viewer(ndisplay=3) pot_timeresolved = np.nanmean( np.asarray( [ potential_pos_t_nrns[:, :, :, :, nrn] for nrn in range(potential_pos_t_nrns.shape[-1]) ] ), axis=0, ) viewer.add_image( pot_timeresolved.T, colormap="twilight", interpolation="nearest", rendering="minip", name="Estimated Potential Energy Landscape", ) # grid view viewer.grid.enabled = True # napari.utils.nbscreenshot(viewer, canvas_only=True) animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 90.0) animation.capture_keyframe() max_steps = int(viewer.dims.range[0][1]) # rotate the camera 360 degrees while advancing the time for i in np.linspace(0, max_steps - 1, max_steps * 4): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.075 * angle_inc, 0.0 + angle_inc, 90.0 + 0.1 * angle_inc, ) viewer.dims.current_step = (i, *viewer.dims.current_step[1:]) animation.capture_keyframe(steps=1) animation.animate("anim3DPotTimeResolved.mp4", canvas_only=True) HTML('')
/tmp/ipykernel_208666/2859654884.py:7: DeprecationWarning: Argument 'interpolation' is deprecated, please use 'interpolation2d' instead. The argument 'interpolation' was deprecated in 0.4.17 and it will be removed in 0.6.0. viewer.add_image(pot_timeresolved.T, colormap='twilight', interpolation='nearest', rendering='minip',
Rendering frames...
0%| | 0/81 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1307, 786) to (1312, 800) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). [swscaler @ 0x59a91c0] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 81/81 [00:01<00:00, 75.12it/s]
Out[ ]:
Section 3.3: Potential energy landscape dimensionality reduction via PCA¶
PCA is used to reduce the dimensionality of energy landscapes for better visualization and analysis.
Purpose:
- To simplify the representation of high-dimensional landscapes.
Key Insights:
- PCA-projected landscapes retain essential attractor characteristics.
In [ ]:
Copied!
# Do PCA on the data
pca = sklearn.decomposition.PCA(n_components=2)
X_dyn_pca = pca.fit_transform(X_dyn_2D[:, 2:])
viewer = napari.Viewer(ndisplay=2)
viewer.add_tracks(
np.hstack((X_dyn_2D[:, :2], X_dyn_pca)), tail_width=1, name="Dynamics of trials"
)
# Do PCA on the data pca = sklearn.decomposition.PCA(n_components=2) X_dyn_pca = pca.fit_transform(X_dyn_2D[:, 2:]) viewer = napari.Viewer(ndisplay=2) viewer.add_tracks( np.hstack((X_dyn_2D[:, :2], X_dyn_pca)), tail_width=1, name="Dynamics of trials" )
Out[ ]:
<Tracks layer 'Dynamics of trials' at 0x7294c10ae880>
In [ ]:
Copied!
def project_ndimage(
pot, proj_bins, pca
): # -> NDArray:# -> NDArray:# -> NDArray:# -> list:
"""
Compute the projected potentials in a reduced PCA space.
Parameters
----------
pot : list of np.ndarray
List of potential landscapes for each neuron, where each element is an n-dimensional array.
proj_bins : int
Number of bins for projecting the data into reduced dimensions.
pca : sklearn.decomposition.PCA
PCA object to transform high-dimensional data to lower dimensions.
Returns
-------
pot_pos_projs : list of np.ndarray
List of projected potentials in the PCA-reduced space for each neuron.
"""
nnrns = len(pot) # Number of neurons
ndim = pot[0].ndim # Dimensionality of the potential landscape
# Flatten potential landscapes into a table
indices = np.indices(pot[0].shape).reshape(ndim, -1).T
pots_table = np.empty((len(indices), nnrns), dtype=float)
for ix, ndix in enumerate(indices):
pots_table[ix] = [pot[nrn][tuple(ndix)] for nrn in range(nnrns)]
# Prepare grid for PCA transformation
X = np.linspace(-3, 3, proj_bins)
mid_points = (X[1:] + X[:-1]) / 2 # Midpoints of the bins
grid = np.meshgrid(*[mid_points for _ in range(ndim)])
X = np.stack(grid, axis=-1).reshape(-1, ndim)
# Transform high-dimensional grid to PCA space
ndspace_proj = pca.transform(X)
# Handle NaN values in the potentials table
pots_table[np.isnan(pots_table)] = 0
# Project potentials into PCA space
pot_pos_projs = []
for nrn in range(nnrns):
# Compute the binned statistics
pot_pos_proj = scipy.stats.binned_statistic_dd(
ndspace_proj, pots_table[:, nrn], statistic="sum", bins=proj_bins
).statistic
# Count occurrences in each bin
H = scipy.stats.binned_statistic_dd(
ndspace_proj, pots_table[:, nrn], statistic="count", bins=proj_bins
).statistic
# Normalize and handle division by zero
pot_pos_proj = np.divide(pot_pos_proj, H, where=H != 0)
pot_pos_proj[H == 0] = np.nan # Assign NaN to empty bins
pot_pos_projs.append(pot_pos_proj)
pot_pos_projs = np.asarray(pot_pos_projs)
return pot_pos_projs
def project_ndimage( pot, proj_bins, pca ): # -> NDArray:# -> NDArray:# -> NDArray:# -> list: """ Compute the projected potentials in a reduced PCA space. Parameters ---------- pot : list of np.ndarray List of potential landscapes for each neuron, where each element is an n-dimensional array. proj_bins : int Number of bins for projecting the data into reduced dimensions. pca : sklearn.decomposition.PCA PCA object to transform high-dimensional data to lower dimensions. Returns ------- pot_pos_projs : list of np.ndarray List of projected potentials in the PCA-reduced space for each neuron. """ nnrns = len(pot) # Number of neurons ndim = pot[0].ndim # Dimensionality of the potential landscape # Flatten potential landscapes into a table indices = np.indices(pot[0].shape).reshape(ndim, -1).T pots_table = np.empty((len(indices), nnrns), dtype=float) for ix, ndix in enumerate(indices): pots_table[ix] = [pot[nrn][tuple(ndix)] for nrn in range(nnrns)] # Prepare grid for PCA transformation X = np.linspace(-3, 3, proj_bins) mid_points = (X[1:] + X[:-1]) / 2 # Midpoints of the bins grid = np.meshgrid(*[mid_points for _ in range(ndim)]) X = np.stack(grid, axis=-1).reshape(-1, ndim) # Transform high-dimensional grid to PCA space ndspace_proj = pca.transform(X) # Handle NaN values in the potentials table pots_table[np.isnan(pots_table)] = 0 # Project potentials into PCA space pot_pos_projs = [] for nrn in range(nnrns): # Compute the binned statistics pot_pos_proj = scipy.stats.binned_statistic_dd( ndspace_proj, pots_table[:, nrn], statistic="sum", bins=proj_bins ).statistic # Count occurrences in each bin H = scipy.stats.binned_statistic_dd( ndspace_proj, pots_table[:, nrn], statistic="count", bins=proj_bins ).statistic # Normalize and handle division by zero pot_pos_proj = np.divide(pot_pos_proj, H, where=H != 0) pot_pos_proj[H == 0] = np.nan # Assign NaN to empty bins pot_pos_projs.append(pot_pos_proj) pot_pos_projs = np.asarray(pot_pos_projs) return pot_pos_projs
In [ ]:
Copied!

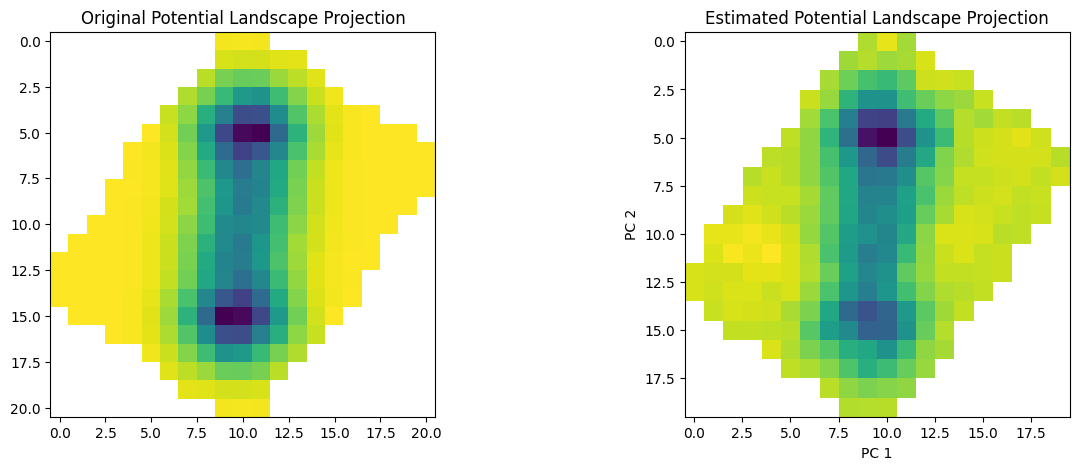

# project potential landscape to 2D
est_pot = np.asarray(
[np.mean(potential_pos_t_nrns[:, :, :, nrn], axis=-1) for nrn in range(3)]
)
est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca)
orig_pot_pos_projs = project_ndimage(gaussians_nd.T, proj_bins + 1, pca)
est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca)
fig, axes = plt.subplots(1, 2, figsize=(15, 5))
axes[0].imshow(np.nanmean(orig_pot_pos_projs, axis=0))
axes[0].set_title("Original Potential Landscape Projection")
axes[1].set_xlabel("PC 1")
axes[1].set_ylabel("PC 2")
axes[1].imshow(np.nanmean(est_pot_pos_projs, axis=0))
axes[1].set_title("Estimated Potential Landscape Projection")
axes[1].set_xlabel("PC 1")
axes[1].set_ylabel("PC 2")
plt.show()
# project potential landscape to 2D est_pot = np.asarray( [np.mean(potential_pos_t_nrns[:, :, :, nrn], axis=-1) for nrn in range(3)] ) est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca) orig_pot_pos_projs = project_ndimage(gaussians_nd.T, proj_bins + 1, pca) est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca) fig, axes = plt.subplots(1, 2, figsize=(15, 5)) axes[0].imshow(np.nanmean(orig_pot_pos_projs, axis=0)) axes[0].set_title("Original Potential Landscape Projection") axes[1].set_xlabel("PC 1") axes[1].set_ylabel("PC 2") axes[1].imshow(np.nanmean(est_pot_pos_projs, axis=0)) axes[1].set_title("Estimated Potential Landscape Projection") axes[1].set_xlabel("PC 1") axes[1].set_ylabel("PC 2") plt.show()
Section 4: n-dimensional Energy Landscape¶
Section 4.1: Simulate n-dimensional trials using Langevin dynamics with noise¶
Simulate particle dynamics in an n-dimensional landscape to study the scalability of the methods.
Purpose:
- To test how well the simulation and estimation approaches scale with dimensionality.
Key Insights:
- Higher-dimensional systems pose challenges in visualization and computational requirements.
In [ ]:
Copied!
ndim = 4
Xp = np.asarray([np.ones(ndim) * 1.5, np.zeros(ndim), np.ones(ndim) * -1.5])
attractordepths = [1, 0.95, 1]
ntrials = 1000
iterations = 500
domain_bins = 20
proj_bins = 20
dt = 0.1 # time step
noise_fac = 0.05 # noise factor
attractorfunc = gaussian_nd
# Generate starting points
posxstarts = np.linspace(-3, 3, 8)
xstarts = np.asarray(np.meshgrid(*[posxstarts] * ndim)).T.reshape(-1, ndim)
xstarts = np.repeat(xstarts, 2, axis=0)
np.random.shuffle(xstarts)
# Simulate dynamics
X_dyn = simulate_trials(
Xp,
attractordepths,
ntrials,
iterations,
dt,
noise_fac,
ngaussians=len(Xp),
xstarts=xstarts,
func=attractorfunc,
std=1,
) # shape: (ntrials, iterations, 30)
ndim = 4 Xp = np.asarray([np.ones(ndim) * 1.5, np.zeros(ndim), np.ones(ndim) * -1.5]) attractordepths = [1, 0.95, 1] ntrials = 1000 iterations = 500 domain_bins = 20 proj_bins = 20 dt = 0.1 # time step noise_fac = 0.05 # noise factor attractorfunc = gaussian_nd # Generate starting points posxstarts = np.linspace(-3, 3, 8) xstarts = np.asarray(np.meshgrid(*[posxstarts] * ndim)).T.reshape(-1, ndim) xstarts = np.repeat(xstarts, 2, axis=0) np.random.shuffle(xstarts) # Simulate dynamics X_dyn = simulate_trials( Xp, attractordepths, ntrials, iterations, dt, noise_fac, ngaussians=len(Xp), xstarts=xstarts, func=attractorfunc, std=1, ) # shape: (ntrials, iterations, 30)
In [ ]:
Copied!
# convert X_dyn to 2D with columns as (trial number, time step, x, y, z)
# Reduce high-dimensional data using PCA
pca = sklearn.decomposition.PCA(n_components=3)
X_dyn_tabular = np.concatenate(
[
np.repeat(np.arange(ntrials), iterations).reshape(-1, 1),
np.broadcast_to(np.arange(iterations), (ntrials, iterations))
.flatten()
.reshape(-1, 1),
pca.fit_transform(X_dyn.reshape(-1, ndim)),
],
axis=1,
)
# convert X_dyn to 2D with columns as (trial number, time step, x, y, z) # Reduce high-dimensional data using PCA pca = sklearn.decomposition.PCA(n_components=3) X_dyn_tabular = np.concatenate( [ np.repeat(np.arange(ntrials), iterations).reshape(-1, 1), np.broadcast_to(np.arange(iterations), (ntrials, iterations)) .flatten() .reshape(-1, 1), pca.fit_transform(X_dyn.reshape(-1, ndim)), ], axis=1, )
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
viewer.add_tracks(X_dyn_tabular, tail_width=1, name="Dynamics of trials")
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 90.0)
animation.capture_keyframe()
max_steps = int(viewer.dims.range[0][1])
# rotate the camera 360 degrees while advancing the time
for i in range(0, max_steps, 3):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.075 * angle_inc,
0.0 + angle_inc,
90.0 + 0.1 * angle_inc,
)
viewer.dims.current_step = (i, *viewer.dims.current_step[1:])
animation.capture_keyframe(steps=1)
animation.animate(f"anim{ndim}DTrajs.mp4", canvas_only=True)
HTML(f'<video controls src="anim{ndim}DTrajs.mp4" />')
viewer = napari.Viewer(ndisplay=3) viewer.add_tracks(X_dyn_tabular, tail_width=1, name="Dynamics of trials") animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 90.0) animation.capture_keyframe() max_steps = int(viewer.dims.range[0][1]) # rotate the camera 360 degrees while advancing the time for i in range(0, max_steps, 3): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.075 * angle_inc, 0.0 + angle_inc, 90.0 + 0.1 * angle_inc, ) viewer.dims.current_step = (i, *viewer.dims.current_step[1:]) animation.capture_keyframe(steps=1) animation.animate(f"anim{ndim}DTrajs.mp4", canvas_only=True) HTML(f'')
Rendering frames...
0%| | 0/168 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1322, 786) to (1328, 800) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). [swscaler @ 0x6c1c300] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 168/168 [00:08<00:00, 18.73it/s]
Out[ ]:
Section 4.2: Analytically estimate the potential energy landscape¶
Validate the estimated n-dimensional potential against theoretical predictions using dimensionality reduction techniques like PCA.
Key Insights:
- Projected landscapes in PCA space confirm the validity of estimations in high-dimensional systems.
In [ ]:
Copied!
(
potential_timeaveraged,
potential_pos_t_nrns,
grad_pos_t_svm,
H,
latentedges,
domainedges,
) = npy.ensemble.potential_landscape_nd(
X_dyn,
[np.linspace(-3, 3, proj_bins) for i in range(ndim)],
domain_bins,
nanborderempty=True,
)
X = np.linspace(-3, 3, proj_bins)
X = np.meshgrid(*[X for _ in range(ndim)])
X = np.stack(X, axis=-1)
X = X.reshape(-1, ndim)
E, dE = mix_functions(X, Xp, attractordepths, func=attractorfunc)
gaussians_nd = []
for i in range(len(Xp)):
gaussian = attractorfunc(X, Xp[i], 1, attractordepths[i])[0].reshape(
*[proj_bins for _ in range(ndim)]
)
gaussian = (gaussian - np.max(gaussian)) / (np.max(gaussian) - np.min(gaussian)) + 1
gaussians_nd.append(gaussian)
gaussians_nd = np.stack(gaussians_nd, axis=-1)
( potential_timeaveraged, potential_pos_t_nrns, grad_pos_t_svm, H, latentedges, domainedges, ) = npy.ensemble.potential_landscape_nd( X_dyn, [np.linspace(-3, 3, proj_bins) for i in range(ndim)], domain_bins, nanborderempty=True, ) X = np.linspace(-3, 3, proj_bins) X = np.meshgrid(*[X for _ in range(ndim)]) X = np.stack(X, axis=-1) X = X.reshape(-1, ndim) E, dE = mix_functions(X, Xp, attractordepths, func=attractorfunc) gaussians_nd = [] for i in range(len(Xp)): gaussian = attractorfunc(X, Xp[i], 1, attractordepths[i])[0].reshape( *[proj_bins for _ in range(ndim)] ) gaussian = (gaussian - np.max(gaussian)) / (np.max(gaussian) - np.min(gaussian)) + 1 gaussians_nd.append(gaussian) gaussians_nd = np.stack(gaussians_nd, axis=-1)
In [ ]:
Copied!
orig_pot_pos_projs = project_ndimage(gaussians_nd.T, proj_bins + 1, pca)
# avoid RuntimeWarning: Mean of empty slice
est_pot = np.asarray(
[
np.nanmean(potential_pos_t_nrns[:, :, :, :, :, nrn], axis=-1)
for nrn in range(ndim)
]
)
est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca)

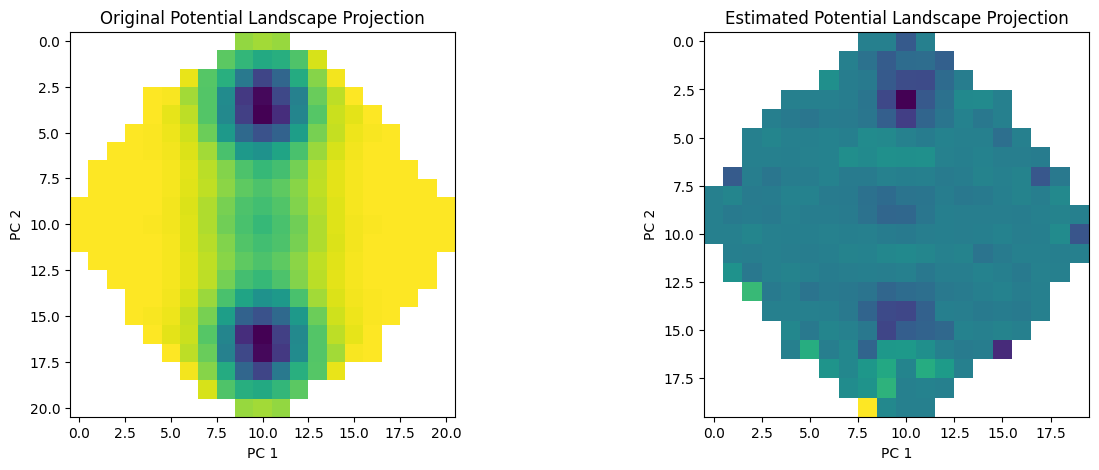

fig, axes = plt.subplots(1, 2, figsize=(15, 5))
axes[0].imshow(np.nanmean(np.nanmean(orig_pot_pos_projs, axis=0), axis=-1))
axes[0].set_title("Original Potential Landscape Projection")
axes[0].set_xlabel("PC 1")
axes[0].set_ylabel("PC 2")
axes[1].imshow(np.nanmean(np.nanmean(est_pot_pos_projs, axis=0), axis=-1))
axes[1].set_title("Estimated Potential Landscape Projection")
axes[1].set_xlabel("PC 1")
axes[1].set_ylabel("PC 2")
plt.show()
orig_pot_pos_projs = project_ndimage(gaussians_nd.T, proj_bins + 1, pca) # avoid RuntimeWarning: Mean of empty slice est_pot = np.asarray( [ np.nanmean(potential_pos_t_nrns[:, :, :, :, :, nrn], axis=-1) for nrn in range(ndim) ] ) est_pot_pos_projs = project_ndimage(est_pot, proj_bins, pca) fig, axes = plt.subplots(1, 2, figsize=(15, 5)) axes[0].imshow(np.nanmean(np.nanmean(orig_pot_pos_projs, axis=0), axis=-1)) axes[0].set_title("Original Potential Landscape Projection") axes[0].set_xlabel("PC 1") axes[0].set_ylabel("PC 2") axes[1].imshow(np.nanmean(np.nanmean(est_pot_pos_projs, axis=0), axis=-1)) axes[1].set_title("Estimated Potential Landscape Projection") axes[1].set_xlabel("PC 1") axes[1].set_ylabel("PC 2") plt.show()
Visualize the PCA-projected ground truth and estimated potential landscapes to understand the attractor structure in the n-dimensional systems.
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
viewer.add_image(
np.nanmean(est_pot_pos_projs, axis=0),
colormap="twilight",
interpolation2d="nearest",
rendering="minip",
name="Estimated Potential Energy Landscape",
)
viewer.add_image(
np.nanmean(orig_pot_pos_projs, axis=0),
colormap="twilight",
interpolation2d="nearest",
rendering="minip",
name="Original Potential Energy Landscape",
)
viewer.grid.enabled = True
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 0.0)
animation.capture_keyframe()
max_steps = 360
# rotate the camera 360 degrees while advancing the time
for i in range(0, max_steps, 3):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.01 * angle_inc,
0.0 + 0.02 * angle_inc,
0.0 + angle_inc,
)
animation.capture_keyframe(steps=1)
animation.animate(f"anim{ndim}DPot.mp4", canvas_only=True)
# viewer.close()
HTML(f'<video controls src="anim{ndim}DPot.mp4" />')
viewer = napari.Viewer(ndisplay=3) viewer.add_image( np.nanmean(est_pot_pos_projs, axis=0), colormap="twilight", interpolation2d="nearest", rendering="minip", name="Estimated Potential Energy Landscape", ) viewer.add_image( np.nanmean(orig_pot_pos_projs, axis=0), colormap="twilight", interpolation2d="nearest", rendering="minip", name="Original Potential Energy Landscape", ) viewer.grid.enabled = True animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 0.0) animation.capture_keyframe() max_steps = 360 # rotate the camera 360 degrees while advancing the time for i in range(0, max_steps, 3): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.01 * angle_inc, 0.0 + 0.02 * angle_inc, 0.0 + angle_inc, ) animation.capture_keyframe(steps=1) animation.animate(f"anim{ndim}DPot.mp4", canvas_only=True) # viewer.close() HTML(f'')
Rendering frames...
0%| | 0/121 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1307, 808) to (1312, 816) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). [swscaler @ 0x6f58300] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 121/121 [00:01<00:00, 77.39it/s]
Out[ ]:
Visualize the time-resolved potential estimation for the 4D system.
In [ ]:
Copied!
viewer = napari.Viewer(ndisplay=3)
pot_timeresolved = np.asarray(
[
np.nanmean(project_ndimage(potential_pos_nrns, proj_bins, pca), axis=0)
for potential_pos_nrns in np.transpose(potential_pos_t_nrns, (4, 5, 0, 1, 2, 3))
]
)
viewer.add_image(
pot_timeresolved,
colormap="twilight",
interpolation2d="nearest",
rendering="minip",
name="Estimated Potential Energy Landscape",
)
# grid view
viewer.grid.enabled = True
# napari.utils.nbscreenshot(viewer, canvas_only=True)
animation = Animation(viewer)
viewer.update_console({"animation": animation})
viewer.camera.angles = (0.0, 0.0, 0.0)
animation.capture_keyframe()
max_steps = int(viewer.dims.range[0][1])
# rotate the camera 360 degrees while advancing the time
for i in np.linspace(0, max_steps - 1, max_steps * 4):
angle_inc = i * 360 / max_steps
viewer.camera.angles = (
0.0 + 0.075 * angle_inc,
0.0 + angle_inc,
90.0 + 0.1 * angle_inc,
)
viewer.dims.current_step = (i, *viewer.dims.current_step[1:])
animation.capture_keyframe(steps=1)
animation.animate("anim{ndim}DPotTimeResolved.mp4", canvas_only=True)
HTML(f'<video controls src="anim{ndim}DPotTimeResolved.mp4" />')
viewer = napari.Viewer(ndisplay=3) pot_timeresolved = np.asarray( [ np.nanmean(project_ndimage(potential_pos_nrns, proj_bins, pca), axis=0) for potential_pos_nrns in np.transpose(potential_pos_t_nrns, (4, 5, 0, 1, 2, 3)) ] ) viewer.add_image( pot_timeresolved, colormap="twilight", interpolation2d="nearest", rendering="minip", name="Estimated Potential Energy Landscape", ) # grid view viewer.grid.enabled = True # napari.utils.nbscreenshot(viewer, canvas_only=True) animation = Animation(viewer) viewer.update_console({"animation": animation}) viewer.camera.angles = (0.0, 0.0, 0.0) animation.capture_keyframe() max_steps = int(viewer.dims.range[0][1]) # rotate the camera 360 degrees while advancing the time for i in np.linspace(0, max_steps - 1, max_steps * 4): angle_inc = i * 360 / max_steps viewer.camera.angles = ( 0.0 + 0.075 * angle_inc, 0.0 + angle_inc, 90.0 + 0.1 * angle_inc, ) viewer.dims.current_step = (i, *viewer.dims.current_step[1:]) animation.capture_keyframe(steps=1) animation.animate("anim{ndim}DPotTimeResolved.mp4", canvas_only=True) HTML(f'')
Rendering frames...
0%| | 0/81 [00:00<?, ?it/s]IMAGEIO FFMPEG_WRITER WARNING: input image is not divisible by macro_block_size=16, resizing from (1307, 786) to (1312, 800) to ensure video compatibility with most codecs and players. To prevent resizing, make your input image divisible by the macro_block_size or set the macro_block_size to 1 (risking incompatibility). [swscaler @ 0x61401c0] Warning: data is not aligned! This can lead to a speed loss 100%|██████████| 81/81 [00:01<00:00, 77.96it/s]
Out[ ]:
Conclusion¶
This tutorial demonstrates the simulation and estimation of energy landscapes across varying dimensions. The analytical and simulated results show strong agreement, validating the robustness of the approach even in higher dimensions. These methods have potential applications in understanding complex neural systems governed by attractor dynamics.
