Pairwise Bias Correlation Analysis¶
In this tutorial, we'll explore how to use the PairwiseBias class to analyze neural replay events. We'll simulate spike data for both task and post-task periods, and then use the PairwiseBias transformer to detect significant replay events.
Setup¶
First, let's import the necessary libraries and set up our environment.
Imports¶
In [1]:
Copied!
%reload_ext autoreload
%autoreload 2
import copy
import logging
import ipywidgets as widgets
import numpy as np
import matplotlib.pyplot as plt
import scipy
import neuro_py as npy
import nelpy as nel
# Disable logging
logger = logging.getLogger()
logger.disabled = True
# Set random seed for reproducibility
np.random.seed(0)
%reload_ext autoreload %autoreload 2 import copy import logging import ipywidgets as widgets import numpy as np import matplotlib.pyplot as plt import scipy import neuro_py as npy import nelpy as nel # Disable logging logger = logging.getLogger() logger.disabled = True # Set random seed for reproducibility np.random.seed(0)
Section 1: Simulate Data¶
Section 1.1: Simulating Task Spike Data with Replay Events¶
We'll start by simulating spike data for a task period. This will represent the original neural activity that we want to detect in replay events.
In [2]:
Copied!
def simulate_sequential_spikes(
nneurons=30,
minseqduration=.05,
maxseqduration=.15,
duration=1.0,
jitter=.01,
reverseseqprob=0.0,
random=False,
):
spikes = []
neuron_ids = []
max_nsequences = np.ceil(duration / minseqduration)
sequence_durations = np.random.uniform(
minseqduration, maxseqduration, int(max_nsequences))
# get index of last sequence that fits into duration
last_sequence = np.where(np.cumsum(sequence_durations) <= duration)[0][-1]
sequence_durations = sequence_durations[:last_sequence+1]
sequence_epochs = np.cumsum(sequence_durations)
sequence_epochs = np.asarray((
np.r_[0, sequence_epochs][:-1],
sequence_epochs
)).T # shape (nsequences, 2)
for seq_start, seq_end in sequence_epochs:
spike_ts = np.linspace(seq_start, seq_end, nneurons)
neuron_seqids = (
np.arange(nneurons) if np.random.rand() > reverseseqprob
else np.arange(nneurons)[::-1])
# add jitter
spike_ts += np.random.uniform(-jitter, jitter, nneurons)
spike_ts = np.sort(spike_ts)
# clip to sequence bounds
spike_ts = np.clip(spike_ts, seq_start, seq_end)
spikes.append(spike_ts)
neuron_ids.append(neuron_seqids)
spikes = np.concatenate(spikes)
neuron_ids = np.concatenate(neuron_ids)
if random:
neuron_ids = np.random.permutation(neuron_ids)
return spikes, neuron_ids, sequence_epochs
def simulate_sequential_spikes( nneurons=30, minseqduration=.05, maxseqduration=.15, duration=1.0, jitter=.01, reverseseqprob=0.0, random=False, ): spikes = [] neuron_ids = [] max_nsequences = np.ceil(duration / minseqduration) sequence_durations = np.random.uniform( minseqduration, maxseqduration, int(max_nsequences)) # get index of last sequence that fits into duration last_sequence = np.where(np.cumsum(sequence_durations) <= duration)[0][-1] sequence_durations = sequence_durations[:last_sequence+1] sequence_epochs = np.cumsum(sequence_durations) sequence_epochs = np.asarray(( np.r_[0, sequence_epochs][:-1], sequence_epochs )).T # shape (nsequences, 2) for seq_start, seq_end in sequence_epochs: spike_ts = np.linspace(seq_start, seq_end, nneurons) neuron_seqids = ( np.arange(nneurons) if np.random.rand() > reverseseqprob else np.arange(nneurons)[::-1]) # add jitter spike_ts += np.random.uniform(-jitter, jitter, nneurons) spike_ts = np.sort(spike_ts) # clip to sequence bounds spike_ts = np.clip(spike_ts, seq_start, seq_end) spikes.append(spike_ts) neuron_ids.append(neuron_seqids) spikes = np.concatenate(spikes) neuron_ids = np.concatenate(neuron_ids) if random: neuron_ids = np.random.permutation(neuron_ids) return spikes, neuron_ids, sequence_epochs
Set parameters for simulation of spike data.
In [3]:
Copied!
N_NEURONS = 15
MIN_SEQ_DURATION = .05
MAX_SEQ_DURATION = .15
DURATION = .5
N_NEURONS = 15 MIN_SEQ_DURATION = .05 MAX_SEQ_DURATION = .15 DURATION = .5
In [4]:
Copied!
task_spikes, task_neurons, task_seq_epochs = simulate_sequential_spikes(
nneurons=N_NEURONS,
minseqduration=MIN_SEQ_DURATION,
maxseqduration=MAX_SEQ_DURATION,
duration=DURATION,
random=False
)

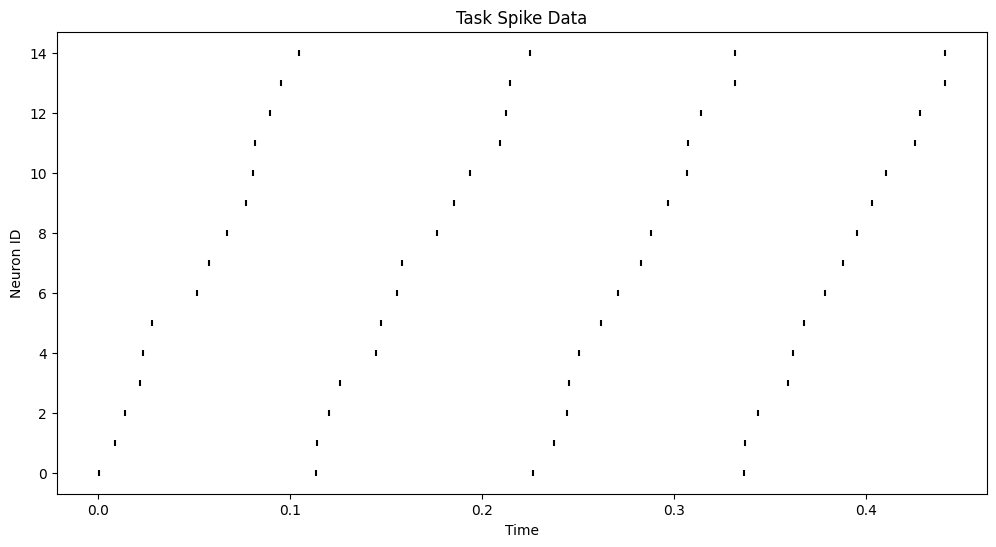

# Visualize task spike data
plt.figure(figsize=(12, 6))
plt.scatter(task_spikes, task_neurons, c='k', marker='|', s=18)
plt.title("Task Spike Data")
plt.xlabel("Time")
plt.ylabel("Neuron ID")
plt.show()
task_spikes, task_neurons, task_seq_epochs = simulate_sequential_spikes( nneurons=N_NEURONS, minseqduration=MIN_SEQ_DURATION, maxseqduration=MAX_SEQ_DURATION, duration=DURATION, random=False ) # Visualize task spike data plt.figure(figsize=(12, 6)) plt.scatter(task_spikes, task_neurons, c='k', marker='|', s=18) plt.title("Task Spike Data") plt.xlabel("Time") plt.ylabel("Neuron ID") plt.show()
Section 1.2: Simulating Post-Task Spike Data with Forward Replay¶
Now, let's simulate post-task spike data for both significant and non-significant replay scenarios, and visualize them.
In [5]:
Copied!
post_spikes_sig, post_neurons_sig, post_sig_seq_epochs = simulate_sequential_spikes(
nneurons=N_NEURONS,
minseqduration=MIN_SEQ_DURATION,
maxseqduration=MAX_SEQ_DURATION,
duration=DURATION,
random=False
)
post_spikes_nonsig, post_neurons_nonsig, post_nonsig_seq_epochs = simulate_sequential_spikes(
nneurons=N_NEURONS,
minseqduration=MIN_SEQ_DURATION,
maxseqduration=MAX_SEQ_DURATION,
duration=DURATION,
random=True
)

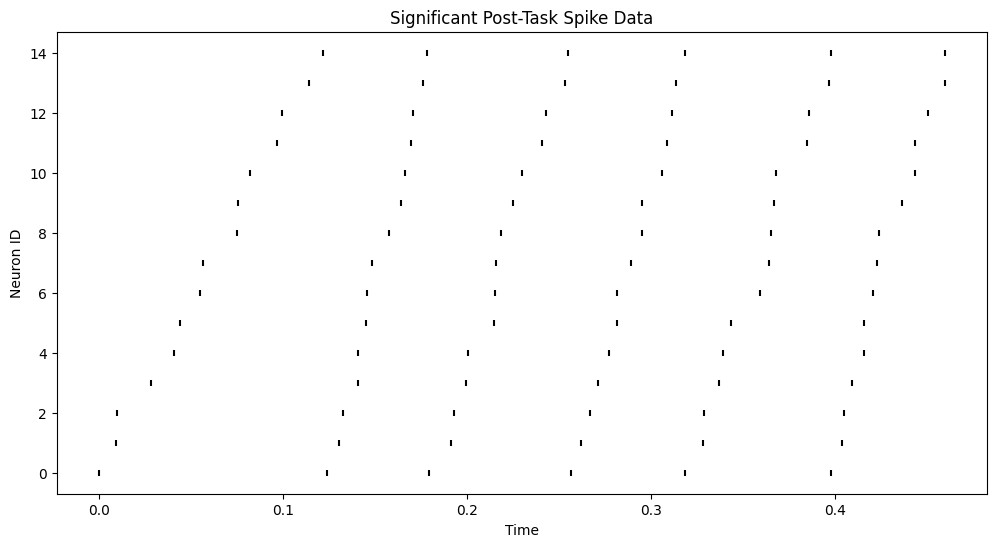

# Visualize significant post-task spike data
plt.figure(figsize=(12, 6))
plt.scatter(post_spikes_sig, post_neurons_sig, c='k', marker='|', s=18)
plt.title("Significant Post-Task Spike Data")
plt.xlabel("Time")
plt.ylabel("Neuron ID")
plt.show()

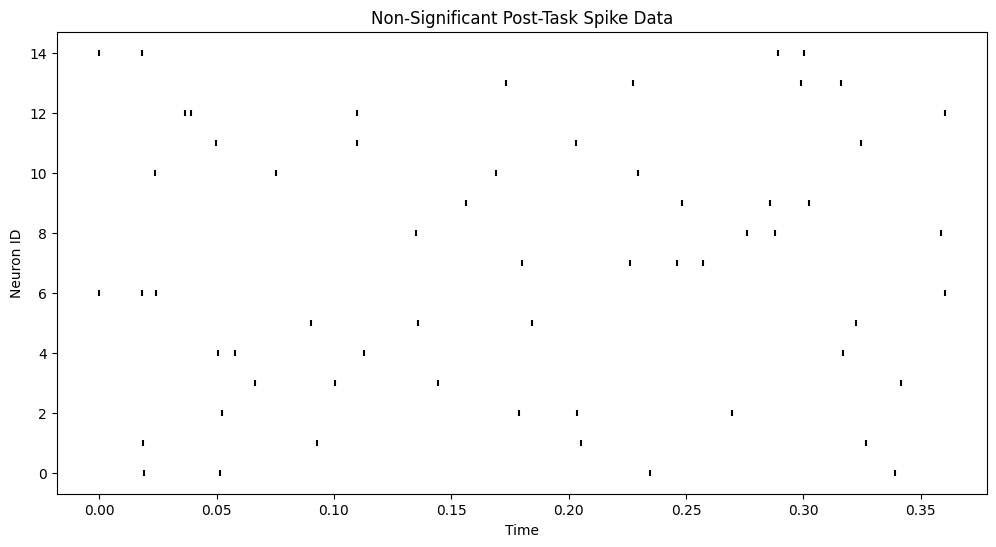

# Visualize non-significant post-task spike data
plt.figure(figsize=(12, 6))
plt.scatter(post_spikes_nonsig, post_neurons_nonsig, c='k', marker='|', s=18)
plt.title("Non-Significant Post-Task Spike Data")
plt.xlabel("Time")
plt.ylabel("Neuron ID")
plt.show()
post_spikes_sig, post_neurons_sig, post_sig_seq_epochs = simulate_sequential_spikes( nneurons=N_NEURONS, minseqduration=MIN_SEQ_DURATION, maxseqduration=MAX_SEQ_DURATION, duration=DURATION, random=False ) post_spikes_nonsig, post_neurons_nonsig, post_nonsig_seq_epochs = simulate_sequential_spikes( nneurons=N_NEURONS, minseqduration=MIN_SEQ_DURATION, maxseqduration=MAX_SEQ_DURATION, duration=DURATION, random=True ) # Visualize significant post-task spike data plt.figure(figsize=(12, 6)) plt.scatter(post_spikes_sig, post_neurons_sig, c='k', marker='|', s=18) plt.title("Significant Post-Task Spike Data") plt.xlabel("Time") plt.ylabel("Neuron ID") plt.show() # Visualize non-significant post-task spike data plt.figure(figsize=(12, 6)) plt.scatter(post_spikes_nonsig, post_neurons_nonsig, c='k', marker='|', s=18) plt.title("Non-Significant Post-Task Spike Data") plt.xlabel("Time") plt.ylabel("Neuron ID") plt.show()
Section 2: Analyzing Replay with PairwiseBias¶
Now that we have our simulated data, let's use the PairwiseBias transformer to analyze replay events.
In [6]:
Copied!
pbias = npy.ensemble.PairwiseBias(num_shuffles=100)
# Analyze significant replay
z_score_sig, p_value_sig, cosine_val_sig = pbias.fit_transform(
task_spikes, task_neurons, task_seq_epochs,
post_spikes_sig, post_neurons_sig, post_sig_seq_epochs
)
print("Significant Replay Results:")
print(f"Z-scores: {z_score_sig}")
print(f"P-values: {p_value_sig}")
print(f"Cosine values: {cosine_val_sig}")
# Analyze non-significant replay
z_score_nonsig, p_value_nonsig, cosine_val_nonsig = pbias.transform(
post_spikes_nonsig, post_neurons_nonsig, post_nonsig_seq_epochs
)
print("\nNon-significant Replay Results:")
print(f"Z-scores: {z_score_nonsig}")
print(f"P-values: {p_value_nonsig}")
print(f"Cosine values: {cosine_val_nonsig}")
pbias = npy.ensemble.PairwiseBias(num_shuffles=100) # Analyze significant replay z_score_sig, p_value_sig, cosine_val_sig = pbias.fit_transform( task_spikes, task_neurons, task_seq_epochs, post_spikes_sig, post_neurons_sig, post_sig_seq_epochs ) print("Significant Replay Results:") print(f"Z-scores: {z_score_sig}") print(f"P-values: {p_value_sig}") print(f"Cosine values: {cosine_val_sig}") # Analyze non-significant replay z_score_nonsig, p_value_nonsig, cosine_val_nonsig = pbias.transform( post_spikes_nonsig, post_neurons_nonsig, post_nonsig_seq_epochs ) print("\nNon-significant Replay Results:") print(f"Z-scores: {z_score_nonsig}") print(f"P-values: {p_value_nonsig}") print(f"Cosine values: {cosine_val_nonsig}")
/home/cornell/Desktop/Kushaan/neuro_py/neuro_py/ensemble/replay.py:659: RuntimeWarning: Mean of empty slice
Significant Replay Results: Z-scores: [6.01136055 5.2730831 4.95141898 5.19878733 5.22794518 5.24813793] P-values: [0.00990099 0.00990099 0.00990099 0.00990099 0.00990099 0.00990099] Cosine values: [0.97669051 0.98048687 0.93398034 0.97551905 0.93848145 0.93954246] Non-significant Replay Results: Z-scores: [-0.97897708 0.46571559 0.25575207 -1.42404218] P-values: [0.82178218 0.31683168 0.43564356 0.92079208] Cosine values: [-0.14344132 0.10520735 0.03944295 -0.16070039]

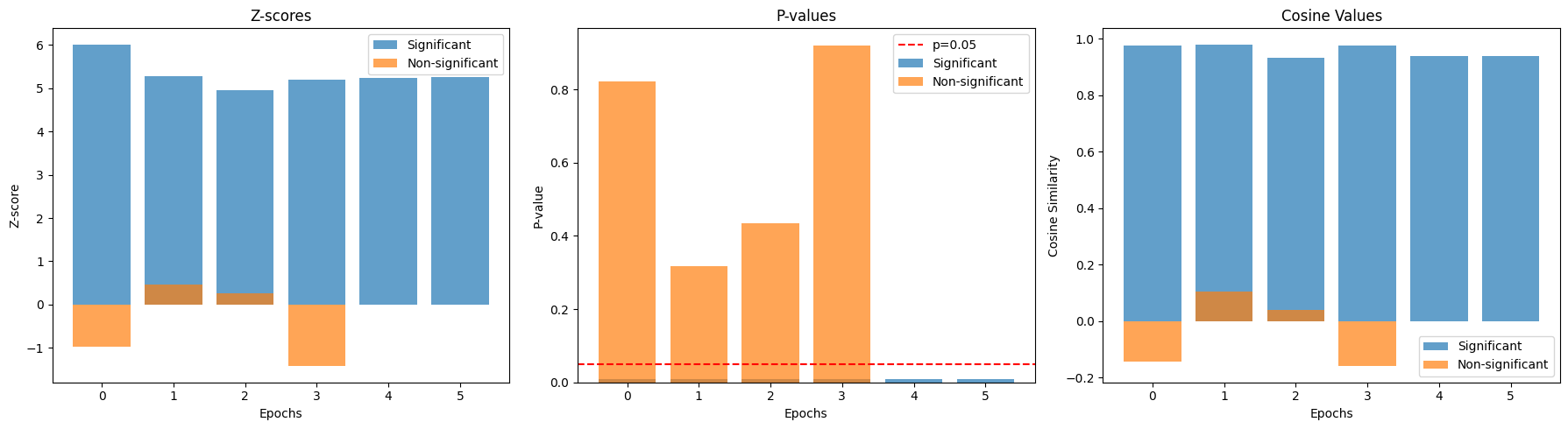

Section 3: Visualizing Results¶
Let's create a simple visualization to compare the significant and non-significant replay results.
Each bar represents the statistics for a single epoch of interest which may be the occurrence of a Sharp Wave Ripple (SWR) event in the hippocampal neural activity.
In [7]:
Copied!
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5))
ax1.bar(range(len(z_score_sig)), z_score_sig, alpha=0.7, label='Significant')
ax1.bar(range(len(z_score_nonsig)), z_score_nonsig, alpha=0.7, label='Non-significant')
ax1.set_title('Z-scores')
ax1.set_xlabel('Epochs')
ax1.set_ylabel('Z-score')
ax1.legend()
ax2.bar(range(len(p_value_sig)), p_value_sig, alpha=0.7, label='Significant')
ax2.bar(range(len(p_value_nonsig)), p_value_nonsig, alpha=0.7, label='Non-significant')
ax2.set_title('P-values')
ax2.set_xlabel('Epochs')
ax2.set_ylabel('P-value')
ax2.axhline(y=0.05, color='r', linestyle='--', label='p=0.05')
ax2.legend()
ax3.bar(range(len(cosine_val_sig)), cosine_val_sig, alpha=0.7, label='Significant')
ax3.bar(range(len(cosine_val_nonsig)), cosine_val_nonsig, alpha=0.7, label='Non-significant')
ax3.set_title('Cosine Values')
ax3.set_xlabel('Epochs')
ax3.set_ylabel('Cosine Similarity')
ax3.legend()
plt.tight_layout()
plt.show()
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5)) ax1.bar(range(len(z_score_sig)), z_score_sig, alpha=0.7, label='Significant') ax1.bar(range(len(z_score_nonsig)), z_score_nonsig, alpha=0.7, label='Non-significant') ax1.set_title('Z-scores') ax1.set_xlabel('Epochs') ax1.set_ylabel('Z-score') ax1.legend() ax2.bar(range(len(p_value_sig)), p_value_sig, alpha=0.7, label='Significant') ax2.bar(range(len(p_value_nonsig)), p_value_nonsig, alpha=0.7, label='Non-significant') ax2.set_title('P-values') ax2.set_xlabel('Epochs') ax2.set_ylabel('P-value') ax2.axhline(y=0.05, color='r', linestyle='--', label='p=0.05') ax2.legend() ax3.bar(range(len(cosine_val_sig)), cosine_val_sig, alpha=0.7, label='Significant') ax3.bar(range(len(cosine_val_nonsig)), cosine_val_nonsig, alpha=0.7, label='Non-significant') ax3.set_title('Cosine Values') ax3.set_xlabel('Epochs') ax3.set_ylabel('Cosine Similarity') ax3.legend() plt.tight_layout() plt.show()
Section 4: Simulation Post-Task Spike Data with both Forward and Reverse Replays¶
Now, let's simulate post-task spike data for both forward and reverse replay scenarios, and visualize them.
In [8]:
Copied!
post_spikes_rev, post_neurons_rev, post_rev_seq_epochs = simulate_sequential_spikes(
nneurons=N_NEURONS,
minseqduration=MIN_SEQ_DURATION,
maxseqduration=MAX_SEQ_DURATION,
duration=DURATION,
reverseseqprob=.5,
random=False
)

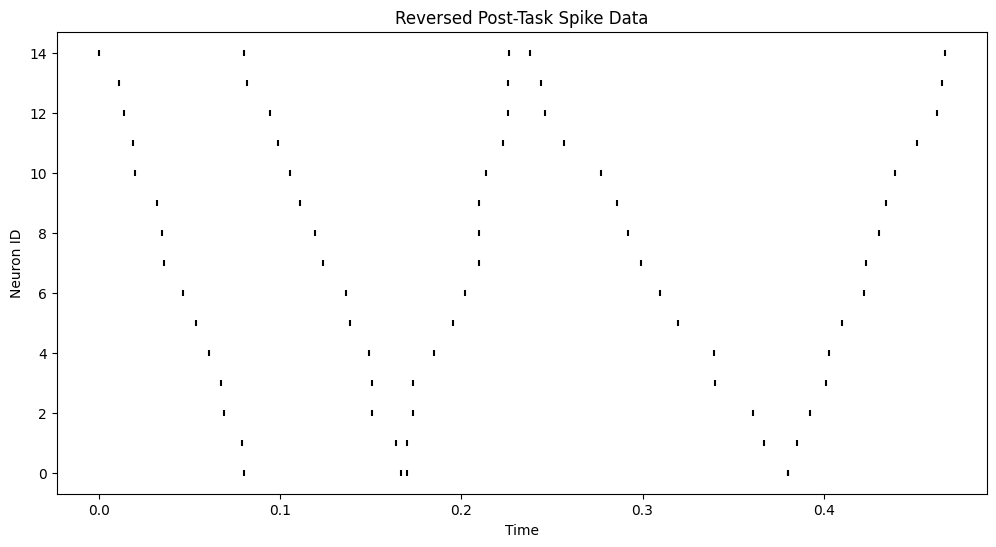

# Visualize reversed post-task spike data
plt.figure(figsize=(12, 6))
plt.scatter(post_spikes_rev, post_neurons_rev, c='k', marker='|', s=18)
plt.title("Reversed Post-Task Spike Data")
plt.xlabel("Time")
plt.ylabel("Neuron ID")
plt.show()
post_spikes_rev, post_neurons_rev, post_rev_seq_epochs = simulate_sequential_spikes( nneurons=N_NEURONS, minseqduration=MIN_SEQ_DURATION, maxseqduration=MAX_SEQ_DURATION, duration=DURATION, reverseseqprob=.5, random=False ) # Visualize reversed post-task spike data plt.figure(figsize=(12, 6)) plt.scatter(post_spikes_rev, post_neurons_rev, c='k', marker='|', s=18) plt.title("Reversed Post-Task Spike Data") plt.xlabel("Time") plt.ylabel("Neuron ID") plt.show()
In [9]:
Copied!
z_score_rev_nonsig, p_value_rev_nonsig, cosine_val_rev_nonsig = pbias.transform(
post_spikes_rev, post_neurons_rev, post_rev_seq_epochs
)
print("Reversed Replay Results without permitting reverse sequences:")
print(f"Z-scores: {z_score_rev_nonsig}")
print(f"P-values: {p_value_rev_nonsig}")
print(f"Cosine values: {cosine_val_rev_nonsig}")
z_score_rev_sig, p_value_rev_sig, cosine_val_rev_sig = pbias.transform(
post_spikes_rev, post_neurons_rev, post_rev_seq_epochs,
allow_reverse_replay=True
)
print("\nReversed Replay Results while permitting reverse sequences:")
print(f"Z-scores: {z_score_rev_sig}")
print(f"P-values: {p_value_rev_sig}")
print(f"Cosine values: {cosine_val_rev_sig}")

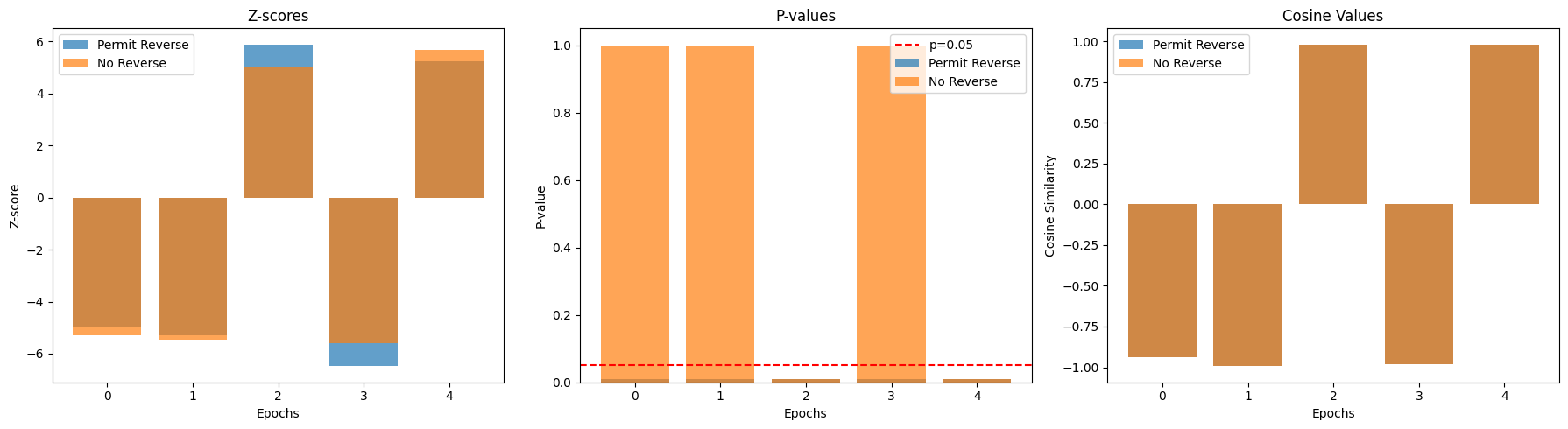

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5))
ax1.bar(range(len(z_score_rev_sig)), z_score_rev_sig, alpha=0.7, label='Permit Reverse')
ax1.bar(range(len(z_score_rev_nonsig)), z_score_rev_nonsig, alpha=0.7, label='No Reverse')
ax1.set_title('Z-scores')
ax1.set_xlabel('Epochs')
ax1.set_ylabel('Z-score')
ax1.legend()
ax2.bar(range(len(p_value_rev_sig)), p_value_rev_sig, alpha=0.7, label='Permit Reverse')
ax2.bar(range(len(p_value_rev_nonsig)), p_value_rev_nonsig, alpha=0.7, label='No Reverse')
ax2.set_title('P-values')
ax2.set_xlabel('Epochs')
ax2.set_ylabel('P-value')
ax2.axhline(y=0.05, color='r', linestyle='--', label='p=0.05')
ax2.legend()
ax3.bar(range(len(cosine_val_rev_sig)), cosine_val_rev_sig, alpha=0.7, label='Permit Reverse')
ax3.bar(range(len(cosine_val_rev_nonsig)), cosine_val_rev_nonsig, alpha=0.7, label='No Reverse')
ax3.set_title('Cosine Values')
ax3.set_xlabel('Epochs')
ax3.set_ylabel('Cosine Similarity')
ax3.legend()
plt.tight_layout()
plt.show()
z_score_rev_nonsig, p_value_rev_nonsig, cosine_val_rev_nonsig = pbias.transform( post_spikes_rev, post_neurons_rev, post_rev_seq_epochs ) print("Reversed Replay Results without permitting reverse sequences:") print(f"Z-scores: {z_score_rev_nonsig}") print(f"P-values: {p_value_rev_nonsig}") print(f"Cosine values: {cosine_val_rev_nonsig}") z_score_rev_sig, p_value_rev_sig, cosine_val_rev_sig = pbias.transform( post_spikes_rev, post_neurons_rev, post_rev_seq_epochs, allow_reverse_replay=True ) print("\nReversed Replay Results while permitting reverse sequences:") print(f"Z-scores: {z_score_rev_sig}") print(f"P-values: {p_value_rev_sig}") print(f"Cosine values: {cosine_val_rev_sig}") fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5)) ax1.bar(range(len(z_score_rev_sig)), z_score_rev_sig, alpha=0.7, label='Permit Reverse') ax1.bar(range(len(z_score_rev_nonsig)), z_score_rev_nonsig, alpha=0.7, label='No Reverse') ax1.set_title('Z-scores') ax1.set_xlabel('Epochs') ax1.set_ylabel('Z-score') ax1.legend() ax2.bar(range(len(p_value_rev_sig)), p_value_rev_sig, alpha=0.7, label='Permit Reverse') ax2.bar(range(len(p_value_rev_nonsig)), p_value_rev_nonsig, alpha=0.7, label='No Reverse') ax2.set_title('P-values') ax2.set_xlabel('Epochs') ax2.set_ylabel('P-value') ax2.axhline(y=0.05, color='r', linestyle='--', label='p=0.05') ax2.legend() ax3.bar(range(len(cosine_val_rev_sig)), cosine_val_rev_sig, alpha=0.7, label='Permit Reverse') ax3.bar(range(len(cosine_val_rev_nonsig)), cosine_val_rev_nonsig, alpha=0.7, label='No Reverse') ax3.set_title('Cosine Values') ax3.set_xlabel('Epochs') ax3.set_ylabel('Cosine Similarity') ax3.legend() plt.tight_layout() plt.show()
Reversed Replay Results without permitting reverse sequences: Z-scores: [-5.30841933 -5.45090389 5.03316704 -5.58233051 5.68234554] P-values: [1. 1. 0.00990099 1. 0.00990099] Cosine values: [-0.94051679 -0.99374011 0.98048687 -0.98048687 0.98048687] Reversed Replay Results while permitting reverse sequences: Z-scores: [-4.9703529 -5.2933867 5.88903521 -6.48384634 5.22551579] P-values: [0.00990099 0.00990099 0.00990099 0.00990099 0.00990099] Cosine values: [-0.94051679 -0.99374011 0.98048687 -0.98048687 0.98048687]
In [10]:
Copied!
nrn_order = np.argsort(np.nansum(pbias.task_normalized, axis=1))
sig_swr_indices = np.where(p_value_sig < 0.001)[0]
def plot_replay(n) -> None:
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5))
start, end = post_rev_seq_epochs[n]
start_idx = np.searchsorted(post_spikes_rev, start, side='left')
end_idx = np.searchsorted(post_spikes_rev, end, side='right')
filtered_spikes = post_spikes_rev[start_idx:end_idx]
filtered_neurons = post_neurons_rev[start_idx:end_idx]
im = ax1.imshow(pbias.task_normalized[nrn_order, :][:, nrn_order], cmap='magma')
ax1.set_title('Template Bias Matrix')
ax1.set_xlabel('Neuron ID (reordered by bias direction)')
ax1.set_ylabel('Neuron ID (reordered by bias direction)')
plt.colorbar(im, ax=ax1)
bias = npy.ensemble.bias_matrix_fast(
filtered_spikes,
filtered_neurons,
total_neurons=N_NEURONS,
fillneutral=.5,
)
bias = npy.ensemble.normalize_bias_matrix(bias)
im = ax2.imshow(bias[nrn_order, :][:, nrn_order], cmap='magma')
ax2.set_title('Replay Bias Matrix')
ax2.set_xlabel('Neuron ID (reordered by bias direction)')
ax2.set_ylabel('Neuron ID (reordered by bias direction)')
plt.colorbar(im, ax=ax2)
# order spikes and neuron ids by nrn_order
argsort = np.asarray(
sorted(
range(len(filtered_neurons)),
key=lambda x: nrn_order[int(filtered_neurons[x])]
)
)
spike_times = filtered_spikes[argsort]
spike_ids = filtered_neurons[argsort]
# raster plot
ax3.scatter(spike_times, spike_ids, c='k', marker='|', s=18)
ax3.set_title('Replay Raster Plot')
ax3.set_xlabel('Time')
ax3.set_ylabel('Neuron ID (reordered by bias direction)')
plt.tight_layout()
plt.show()
widgets.interact(plot_replay, n=widgets.IntSlider(min=0, max=len(post_rev_seq_epochs)-1, step=1, value=0));
nrn_order = np.argsort(np.nansum(pbias.task_normalized, axis=1)) sig_swr_indices = np.where(p_value_sig < 0.001)[0] def plot_replay(n) -> None: fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5)) start, end = post_rev_seq_epochs[n] start_idx = np.searchsorted(post_spikes_rev, start, side='left') end_idx = np.searchsorted(post_spikes_rev, end, side='right') filtered_spikes = post_spikes_rev[start_idx:end_idx] filtered_neurons = post_neurons_rev[start_idx:end_idx] im = ax1.imshow(pbias.task_normalized[nrn_order, :][:, nrn_order], cmap='magma') ax1.set_title('Template Bias Matrix') ax1.set_xlabel('Neuron ID (reordered by bias direction)') ax1.set_ylabel('Neuron ID (reordered by bias direction)') plt.colorbar(im, ax=ax1) bias = npy.ensemble.bias_matrix_fast( filtered_spikes, filtered_neurons, total_neurons=N_NEURONS, fillneutral=.5, ) bias = npy.ensemble.normalize_bias_matrix(bias) im = ax2.imshow(bias[nrn_order, :][:, nrn_order], cmap='magma') ax2.set_title('Replay Bias Matrix') ax2.set_xlabel('Neuron ID (reordered by bias direction)') ax2.set_ylabel('Neuron ID (reordered by bias direction)') plt.colorbar(im, ax=ax2) # order spikes and neuron ids by nrn_order argsort = np.asarray( sorted( range(len(filtered_neurons)), key=lambda x: nrn_order[int(filtered_neurons[x])] ) ) spike_times = filtered_spikes[argsort] spike_ids = filtered_neurons[argsort] # raster plot ax3.scatter(spike_times, spike_ids, c='k', marker='|', s=18) ax3.set_title('Replay Raster Plot') ax3.set_xlabel('Time') ax3.set_ylabel('Neuron ID (reordered by bias direction)') plt.tight_layout() plt.show() widgets.interact(plot_replay, n=widgets.IntSlider(min=0, max=len(post_rev_seq_epochs)-1, step=1, value=0));
interactive(children=(IntSlider(value=0, description='n', max=4), Output()), _dom_classes=('widget-interact',)… Section 5: Analyzing sequences in real data¶
Now that we have our simulated data, let's use the PairwiseBias transformer to analyze replay in the SWR events.
Section 5.1: Load the data¶
In [11]:
Copied!
basepath = r'/run/user/1000/gvfs/smb-share:server=132.236.112.212,share=ayadata1/Data/GrosmarkAD/Achilles/Achilles_10252013'
epoch_df = npy.io.load_epoch(basepath)
# get session bounds to provide support
session_bounds = nel.EpochArray(
[epoch_df.startTime.iloc[0], epoch_df.stopTime.iloc[-1]]
)
# compress repeated sleep sessions
epoch_df = npy.session.compress_repeated_epochs(epoch_df)
beh_epochs = nel.EpochArray(epoch_df[["startTime", "stopTime"]].values.astype(float))
st, cell_metrics = npy.io.load_spikes(
basepath, putativeCellType="Pyr", brainRegion="CA1"
)
spike_spindices = npy.spikes.get_spindices(st.data)
swr = npy.io.load_ripples_events(basepath, return_epoch_array=True)
theta = nel.EpochArray(npy.io.load_SleepState_states(basepath)["THETA"])
task_idx = npy.process.in_intervals(
spike_spindices.spike_times, (beh_epochs[1] & theta).data
)
basepath = r'/run/user/1000/gvfs/smb-share:server=132.236.112.212,share=ayadata1/Data/GrosmarkAD/Achilles/Achilles_10252013' epoch_df = npy.io.load_epoch(basepath) # get session bounds to provide support session_bounds = nel.EpochArray( [epoch_df.startTime.iloc[0], epoch_df.stopTime.iloc[-1]] ) # compress repeated sleep sessions epoch_df = npy.session.compress_repeated_epochs(epoch_df) beh_epochs = nel.EpochArray(epoch_df[["startTime", "stopTime"]].values.astype(float)) st, cell_metrics = npy.io.load_spikes( basepath, putativeCellType="Pyr", brainRegion="CA1" ) spike_spindices = npy.spikes.get_spindices(st.data) swr = npy.io.load_ripples_events(basepath, return_epoch_array=True) theta = nel.EpochArray(npy.io.load_SleepState_states(basepath)["THETA"]) task_idx = npy.process.in_intervals( spike_spindices.spike_times, (beh_epochs[1] & theta).data )
In [12]:
Copied!
position_df = npy.io.load_animal_behavior(basepath)
# put position into a nelpy position array for ease of use
pos = nel.AnalogSignalArray(
data=position_df["x"].values.T,
timestamps=position_df.timestamps.values,
)
# get outbound and inbound epochs
(outbound_epochs, inbound_epochs) = npy.behavior.get_linear_track_lap_epochs(
pos.abscissa_vals, pos.data[0], newLapThreshold=20
)
outbound_epochs, inbound_epochs
position_df = npy.io.load_animal_behavior(basepath) # put position into a nelpy position array for ease of use pos = nel.AnalogSignalArray( data=position_df["x"].values.T, timestamps=position_df.timestamps.values, ) # get outbound and inbound epochs (outbound_epochs, inbound_epochs) = npy.behavior.get_linear_track_lap_epochs( pos.abscissa_vals, pos.data[0], newLapThreshold=20 ) outbound_epochs, inbound_epochs
Out[12]:
(<EpochArray at 0x72b5fc830640: 42 epochs> of length 17:07:964 minutes, <EpochArray at 0x72b5fc830b50: 43 epochs> of length 17:17:974 minutes)
In [13]:
Copied!
overlap = npy.process.find_intersecting_intervals(swr, beh_epochs[-1], return_indices=False)
# intervals in set 1 that completely overlap with set 2
overlap = swr.lengths == overlap
overlap = npy.process.find_intersecting_intervals(swr, beh_epochs[-1], return_indices=False) # intervals in set 1 that completely overlap with set 2 overlap = swr.lengths == overlap
Section 5.2: Analyzing Forward and Reverse Replays in SWR Events using PairwiseBias¶
In [ ]:
Copied!
pbias = npy.ensemble.PairwiseBias(num_shuffles=100)
post_swrs = [swr[overlap][i] for i, length in enumerate(swr[overlap].lengths) if length > 0.08]
post_swrs = nel.EpochArray([ep.data for ep in post_swrs if np.sum([len(spks) > 0 for spks in st[ep].data]) > 4])
# Analyze significant replay
z_score_sig, p_value_sig, cosine_val_sig = pbias.fit_transform(
spike_spindices["spike_times"].values,
spike_spindices["spike_id"].values,
inbound_epochs.data,
spike_spindices["spike_times"].values,
spike_spindices["spike_id"].values,
post_swrs.data,
allow_reverse_replay=False,
)
print("Significant Replay Results:")
print(f"Z-scores: {z_score_sig}")
print(f"P-values: {p_value_sig}")
print(f"Cosine values: {cosine_val_sig}")
pbias = npy.ensemble.PairwiseBias(num_shuffles=100) post_swrs = [swr[overlap][i] for i, length in enumerate(swr[overlap].lengths) if length > 0.08] post_swrs = nel.EpochArray([ep.data for ep in post_swrs if np.sum([len(spks) > 0 for spks in st[ep].data]) > 4]) # Analyze significant replay z_score_sig, p_value_sig, cosine_val_sig = pbias.fit_transform( spike_spindices["spike_times"].values, spike_spindices["spike_id"].values, inbound_epochs.data, spike_spindices["spike_times"].values, spike_spindices["spike_id"].values, post_swrs.data, allow_reverse_replay=False, ) print("Significant Replay Results:") print(f"Z-scores: {z_score_sig}") print(f"P-values: {p_value_sig}") print(f"Cosine values: {cosine_val_sig}")
/home/cornell/Desktop/Kushaan/neuro_py/neuro_py/ensemble/replay.py:659: RuntimeWarning: Mean of empty slice
Significant Replay Results: Z-scores: [ 0.11456589 1.83435469 -1.58224202 ... -0.57006536 -0.16616777 -0.82254613] P-values: [0.46534653 0.01980198 0.95049505 ... 0.7029703 0.58415842 0.82178218] Cosine values: [-0.00167047 0.04488326 -0.02968688 ... -0.00790766 -0.0016217 -0.01274348]
In [15]:
Copied!

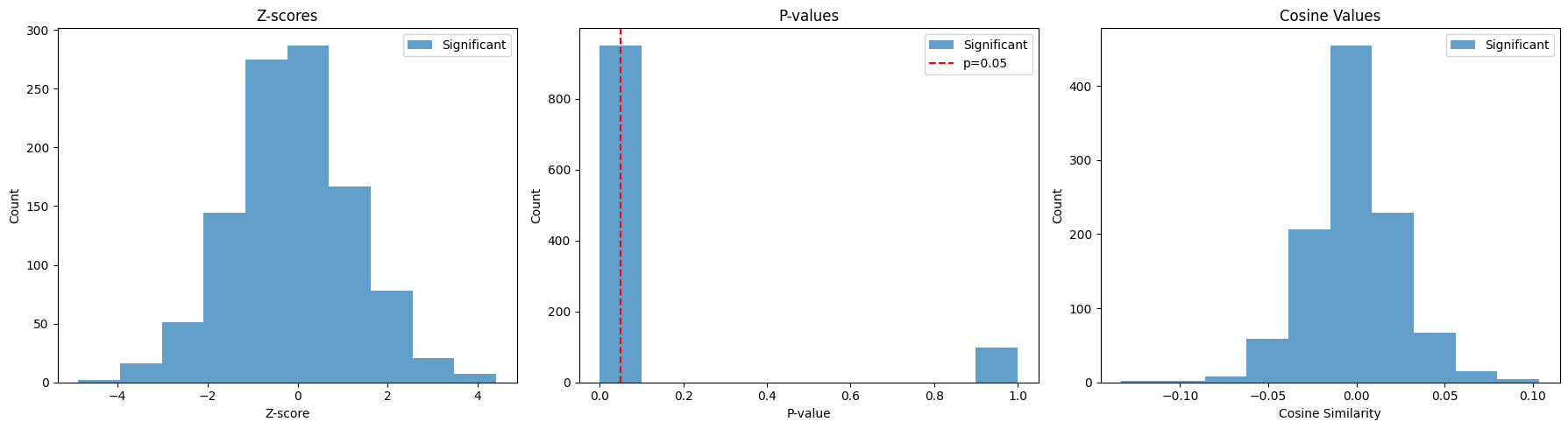

fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5))
ax1.hist(z_score_sig, alpha=0.7, label='Significant')
# ax1.hist(z_score_nonsig, alpha=0.7, label='Non-significant')
ax1.set_title('Z-scores')
ax1.set_ylabel('Count')
ax1.set_xlabel('Z-score')
ax1.legend()
ax2.hist((p_value_sig < .05).astype(int), alpha=0.7, label='Significant')
# ax2.hist(p_value_nonsig, alpha=0.7, label='Non-significant')
ax2.set_title('P-values')
ax2.set_xlabel('P-value')
ax2.set_ylabel('Count')
ax2.axvline(x=0.05, color='r', linestyle='--', label='p=0.05')
ax2.legend()
ax3.hist(cosine_val_sig, alpha=0.7, label='Significant')
ax3.set_title('Cosine Values')
ax3.set_xlabel('Cosine Similarity')
ax3.set_ylabel('Count')
ax3.legend()
plt.tight_layout()
plt.show()
fig, (ax1, ax2, ax3) = plt.subplots(1, 3, figsize=(18, 5)) ax1.hist(z_score_sig, alpha=0.7, label='Significant') # ax1.hist(z_score_nonsig, alpha=0.7, label='Non-significant') ax1.set_title('Z-scores') ax1.set_ylabel('Count') ax1.set_xlabel('Z-score') ax1.legend() ax2.hist((p_value_sig < .05).astype(int), alpha=0.7, label='Significant') # ax2.hist(p_value_nonsig, alpha=0.7, label='Non-significant') ax2.set_title('P-values') ax2.set_xlabel('P-value') ax2.set_ylabel('Count') ax2.axvline(x=0.05, color='r', linestyle='--', label='p=0.05') ax2.legend() ax3.hist(cosine_val_sig, alpha=0.7, label='Significant') ax3.set_title('Cosine Values') ax3.set_xlabel('Cosine Similarity') ax3.set_ylabel('Count') ax3.legend() plt.tight_layout() plt.show()
Section 5.3: Forward and Reverse Replays in SWR Events using Bayesian Decoder¶
In [16]:
Copied!
SPATIAL_BIN_SIZE = 3
BEHAVIOR_TIME_BIN_SIZE = 0.05
REPLAY_TIME_BIN_SIZE = 0.02
SPEED_THRESHOLD = 3
TUNING_CURVE_SIGMA = 1
PLACE_CELL_MIN_SPKS = 100
PLACE_CELL_MIN_RATE = 1
PLACE_CELL_PEAK_MIN_RATIO = 1.5
N_SHUFFLES = 100
SPATIAL_BIN_SIZE = 3 BEHAVIOR_TIME_BIN_SIZE = 0.05 REPLAY_TIME_BIN_SIZE = 0.02 SPEED_THRESHOLD = 3 TUNING_CURVE_SIGMA = 1 PLACE_CELL_MIN_SPKS = 100 PLACE_CELL_MIN_RATE = 1 PLACE_CELL_PEAK_MIN_RATIO = 1.5 N_SHUFFLES = 100
In [17]:
Copied!
def get_tuning_curves(
pos, st_all, dir_epoch, speed_thres, time_binsize, s_binsize, tuning_curve_sigma
):
spatial_maps = npy.tuning.SpatialMap(
pos,
st_all,
dim=1,
dir_epoch=dir_epoch,
s_binsize=s_binsize,
speed_thres=speed_thres,
tuning_curve_sigma=tuning_curve_sigma,
minbgrate=0.01, # decoding does not like 0 firing rate
)
# restrict spike trains to those epochs during which the animal was running
st_run = st_all[dir_epoch][spatial_maps.run_epochs]
# bin running:
bst_run = st_run.bin(ds=time_binsize)
# return class 'auxiliary.TuningCurve1D'
# instead of class 'maps.SpatialMap' for decoding.py compatibility
return spatial_maps.tc, st_run, bst_run, spatial_maps.run_epochs
tc, st_run, bst_run, run_epochs = get_tuning_curves(
pos, st, inbound_epochs, SPEED_THRESHOLD, BEHAVIOR_TIME_BIN_SIZE,
SPATIAL_BIN_SIZE, TUNING_CURVE_SIGMA
)
def get_tuning_curves( pos, st_all, dir_epoch, speed_thres, time_binsize, s_binsize, tuning_curve_sigma ): spatial_maps = npy.tuning.SpatialMap( pos, st_all, dim=1, dir_epoch=dir_epoch, s_binsize=s_binsize, speed_thres=speed_thres, tuning_curve_sigma=tuning_curve_sigma, minbgrate=0.01, # decoding does not like 0 firing rate ) # restrict spike trains to those epochs during which the animal was running st_run = st_all[dir_epoch][spatial_maps.run_epochs] # bin running: bst_run = st_run.bin(ds=time_binsize) # return class 'auxiliary.TuningCurve1D' # instead of class 'maps.SpatialMap' for decoding.py compatibility return spatial_maps.tc, st_run, bst_run, spatial_maps.run_epochs tc, st_run, bst_run, run_epochs = get_tuning_curves( pos, st, inbound_epochs, SPEED_THRESHOLD, BEHAVIOR_TIME_BIN_SIZE, SPATIAL_BIN_SIZE, TUNING_CURVE_SIGMA )
In [18]:
Copied!
def restrict_to_place_cells(
tc,
st_run,
bst_run,
st_all,
cell_metrics,
place_cell_min_spks,
place_cell_min_rate,
place_cell_peak_mean_ratio,
):
# locate pyr cells with >= 100 spikes, peak rate >= 1 Hz, peak/mean ratio >=1.5
peak_firing_rates = tc.max(axis=1)
mean_firing_rates = tc.mean(axis=1)
ratio = peak_firing_rates / mean_firing_rates
idx = (
(st_run.n_events >= place_cell_min_spks)
& (tc.ratemap.max(axis=1) >= place_cell_min_rate)
& (ratio >= place_cell_peak_mean_ratio)
)
unit_ids_to_keep = (np.where(idx)[0] + 1).squeeze().tolist()
sta_placecells = st_all._unit_subset(unit_ids_to_keep)
tc = tc._unit_subset(unit_ids_to_keep)
total_units = sta_placecells.n_active
bst_run = bst_run.loc[:, unit_ids_to_keep]
# restrict cell_metrics to place cells
cell_metrics_ = cell_metrics[idx]
return sta_placecells, tc, bst_run, cell_metrics_, total_units
sta_placecells, tc, bst_run, cell_metrics_, total_units = \
restrict_to_place_cells(
tc, st_run, bst_run, st, cell_metrics, PLACE_CELL_MIN_SPKS,
PLACE_CELL_MIN_RATE, PLACE_CELL_PEAK_MIN_RATIO
)
def restrict_to_place_cells( tc, st_run, bst_run, st_all, cell_metrics, place_cell_min_spks, place_cell_min_rate, place_cell_peak_mean_ratio, ): # locate pyr cells with >= 100 spikes, peak rate >= 1 Hz, peak/mean ratio >=1.5 peak_firing_rates = tc.max(axis=1) mean_firing_rates = tc.mean(axis=1) ratio = peak_firing_rates / mean_firing_rates idx = ( (st_run.n_events >= place_cell_min_spks) & (tc.ratemap.max(axis=1) >= place_cell_min_rate) & (ratio >= place_cell_peak_mean_ratio) ) unit_ids_to_keep = (np.where(idx)[0] + 1).squeeze().tolist() sta_placecells = st_all._unit_subset(unit_ids_to_keep) tc = tc._unit_subset(unit_ids_to_keep) total_units = sta_placecells.n_active bst_run = bst_run.loc[:, unit_ids_to_keep] # restrict cell_metrics to place cells cell_metrics_ = cell_metrics[idx] return sta_placecells, tc, bst_run, cell_metrics_, total_units sta_placecells, tc, bst_run, cell_metrics_, total_units = \ restrict_to_place_cells( tc, st_run, bst_run, st, cell_metrics, PLACE_CELL_MIN_SPKS, PLACE_CELL_MIN_RATE, PLACE_CELL_PEAK_MIN_RATIO )
In [19]:
Copied!

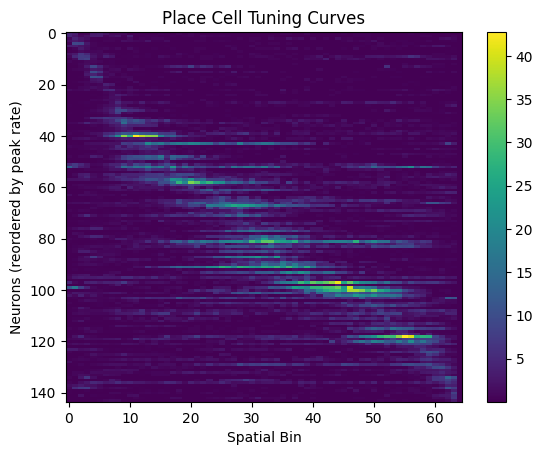

plt.imshow(tc.reorder_units().ratemap, aspect='auto', interpolation='none')
plt.colorbar()
plt.title('Place Cell Tuning Curves')
plt.xlabel('Spatial Bin')
plt.ylabel('Neurons (reordered by peak rate)')
plt.show()
plt.imshow(tc.reorder_units().ratemap, aspect='auto', interpolation='none') plt.colorbar() plt.title('Place Cell Tuning Curves') plt.xlabel('Spatial Bin') plt.ylabel('Neurons (reordered by peak rate)') plt.show()
In [20]:
Copied!
def decode_and_score(bst, tc, pos):# -> tuple[float, float] | tuple[Any, Any, Any]:
# access decoding accuracy on behavioral time scale
posteriors, lengths, mode_pth, mean_pth = nel.decoding.decode1D(
bst, tc, xmin=np.nanmin(pos.data), xmax=np.nanmax(pos.data)
)
actual_pos = np.interp(bst.bin_centers, pos.abscissa_vals, pos.data[0])
bad_idx = np.isnan(actual_pos) | np.isnan(mode_pth)
actual_pos = actual_pos[~bad_idx]
mode_pth = mode_pth[~bad_idx]
if len(actual_pos) == 0:
return np.nan, np.nan
slope, intercept, rvalue, pvalue, stderr = scipy.stats.linregress(actual_pos, mode_pth)
median_error = np.nanmedian(np.abs(actual_pos - mode_pth))
return mode_pth, rvalue, median_error
def pooled_incoherent_shuffle_bst(bst):
out = copy.deepcopy(bst)
data = out._data
for uu in range(bst.n_units):
segment = np.atleast_1d(np.squeeze(data[uu, :]))
segment = np.roll(segment, np.random.randint(len(segment)))
data[uu, :] = segment
out._data = data
return out
def decode_and_shuff(bst, tc, pos, n_shuffles=500):
""" """
pos_decoded, rvalue, median_error = decode_and_score(bst, tc, pos)
if n_shuffles > 0:
rvalue_time_swap = np.zeros((n_shuffles, 1))
median_error_time_swap = np.zeros((n_shuffles, 1))
for shflidx in range(n_shuffles):
bst_shuff = pooled_incoherent_shuffle_bst(bst)
_, rvalue_time_swap[shflidx], median_error_time_swap[shflidx] = decode_and_score(
bst_shuff, tc, pos
)
return pos_decoded, rvalue, median_error, rvalue_time_swap, median_error_time_swap
bst_run_beh = sta_placecells[inbound_epochs][run_epochs].bin(ds=BEHAVIOR_TIME_BIN_SIZE)
pos_decoded, decoding_r2, median_error, decoding_r2_shuff, _ = decode_and_shuff(
bst_run_beh, tc, pos[inbound_epochs][run_epochs], n_shuffles=N_SHUFFLES
)
def decode_and_score(bst, tc, pos):# -> tuple[float, float] | tuple[Any, Any, Any]: # access decoding accuracy on behavioral time scale posteriors, lengths, mode_pth, mean_pth = nel.decoding.decode1D( bst, tc, xmin=np.nanmin(pos.data), xmax=np.nanmax(pos.data) ) actual_pos = np.interp(bst.bin_centers, pos.abscissa_vals, pos.data[0]) bad_idx = np.isnan(actual_pos) | np.isnan(mode_pth) actual_pos = actual_pos[~bad_idx] mode_pth = mode_pth[~bad_idx] if len(actual_pos) == 0: return np.nan, np.nan slope, intercept, rvalue, pvalue, stderr = scipy.stats.linregress(actual_pos, mode_pth) median_error = np.nanmedian(np.abs(actual_pos - mode_pth)) return mode_pth, rvalue, median_error def pooled_incoherent_shuffle_bst(bst): out = copy.deepcopy(bst) data = out._data for uu in range(bst.n_units): segment = np.atleast_1d(np.squeeze(data[uu, :])) segment = np.roll(segment, np.random.randint(len(segment))) data[uu, :] = segment out._data = data return out def decode_and_shuff(bst, tc, pos, n_shuffles=500): """ """ pos_decoded, rvalue, median_error = decode_and_score(bst, tc, pos) if n_shuffles > 0: rvalue_time_swap = np.zeros((n_shuffles, 1)) median_error_time_swap = np.zeros((n_shuffles, 1)) for shflidx in range(n_shuffles): bst_shuff = pooled_incoherent_shuffle_bst(bst) _, rvalue_time_swap[shflidx], median_error_time_swap[shflidx] = decode_and_score( bst_shuff, tc, pos ) return pos_decoded, rvalue, median_error, rvalue_time_swap, median_error_time_swap bst_run_beh = sta_placecells[inbound_epochs][run_epochs].bin(ds=BEHAVIOR_TIME_BIN_SIZE) pos_decoded, decoding_r2, median_error, decoding_r2_shuff, _ = decode_and_shuff( bst_run_beh, tc, pos[inbound_epochs][run_epochs], n_shuffles=N_SHUFFLES )
In [21]:
Copied!
replay_scores = []
for swr_ep in post_swrs:
bst = sta_placecells[swr_ep].bin(ds=REPLAY_TIME_BIN_SIZE)
slope, intercept, r2values = nel.analysis.replay.linregress_bst(bst, tc)
replay_scores.append(r2values.item())
replay_scores = [] for swr_ep in post_swrs: bst = sta_placecells[swr_ep].bin(ds=REPLAY_TIME_BIN_SIZE) slope, intercept, r2values = nel.analysis.replay.linregress_bst(bst, tc) replay_scores.append(r2values.item())
Section 5.4: Comparing Replay Detection Consistency between PairwiseBias and Bayesian Decoder¶
In [22]:
Copied!
# correlate replay scores with p-values
scipy.stats.spearmanr(
np.abs(cosine_val_sig), # Absolute to also consider reverse sequences
replay_scores
)
# correlate replay scores with p-values scipy.stats.spearmanr( np.abs(cosine_val_sig), # Absolute to also consider reverse sequences replay_scores )
Out[22]:
SignificanceResult(statistic=0.1982981181876735, pvalue=9.404532275254252e-11)
Visualize the significant replay events amongst the SWR events.
In [23]:
Copied!
nrn_order = np.argsort(np.nansum(pbias.task_normalized, axis=1))
sig_swr_indices = np.where(p_value_sig < 0.05)[0]
def plot_replay(n):
fig, axes = plt.subplots(2, 3, figsize=(11, 8))
swrs_sig = post_swrs[sig_swr_indices]
sig_swr_index = np.atleast_2d(swrs_sig[n].data)
bias = npy.ensemble.bias_matrix_fast(
spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values,
spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values,
total_neurons=st.n_units, fillneutral=.5
)
bias = npy.ensemble.normalize_bias_matrix(bias)
cossim = npy.ensemble.cosine_similarity_matrices(
pbias.task_normalized, bias
)
print(f"Epoch {n} Cosine Similarity: {cossim}")
ax = axes[0, 0]
ax.imshow(pbias.task_normalized[nrn_order, :][:, nrn_order], cmap='magma')
ax.set_title('Template Bias Matrix')
ax.set_xlabel('Neurons (reordered by bias direction)')
ax.set_ylabel('Neurons (reordered by bias direction)')
ax = axes[0, 1]
ax.imshow(bias[nrn_order, :][:, nrn_order], cmap='magma')
ax.set_title('Replay Bias Matrix')
ax.set_xlabel('Neurons (reordered by bias direction)')
ax.set_ylabel('Neurons (reordered by bias direction)')
spike_times = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values
spike_ids = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values
# # order spikes and neuron ids by nrn_order
# argsort = np.asarray(sorted(range(len(spike_ids)), key=lambda x: nrn_order[int(spike_ids[x])]))
# spike_times = spike_times[argsort]
# spike_ids = spike_ids[argsort]
spike_id_ordermap = dict(zip(nrn_order, range(len(nrn_order))))
spike_ids = np.asarray([spike_id_ordermap[int(spike_id)] for spike_id in spike_ids], dtype=int)
# raster plot
ax = axes[0, 2]
ax.scatter(spike_times, spike_ids, c='k', marker='|', s=18)
ax.set_title('Replay Raster Plot')
ax.set_xlabel('Time')
ax.set_ylabel('Neurons (reordered by bias direction)')
bst = sta_placecells[swrs_sig[n]].bin(ds=REPLAY_TIME_BIN_SIZE)
posteriors, lengths, mode_pth, mean_pth = nel.decoding.decode1D(
bst, tc, xmin=np.nanmin(pos.data), xmax=np.nanmax(pos.data)
)
spike_times = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values
spike_ids = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values
spike_id_ordermap = np.asarray(tc.get_peak_firing_order_ids()) - 1
spike_id_ordermap = dict(zip(spike_id_ordermap, range(len(spike_id_ordermap))))
# filter non-place cells
spike_times = np.asarray([ts for i, ts in enumerate(spike_times) if spike_ids[i] in spike_id_ordermap])
spike_ids = np.asarray([id for id in spike_ids if id in spike_id_ordermap], dtype=int)
# replace spike_ids with their peak firing order
spike_ids = np.asarray([spike_id_ordermap[int(spike_id)] for spike_id in spike_ids], dtype=int)
ax = axes[1, 0]
ax.scatter(spike_times, spike_ids, c='k', marker='|')
ax.set_title('Replay Raster Plot')
ax.set_xlabel('Time')
ax.set_ylabel('Neurons (reordered by peak firing order)')
stswr = st[swrs_sig[n]]
stswr = stswr._unit_subset(tc.get_peak_firing_order_ids())
stswr.reorder_units_by_ids(tc.get_peak_firing_order_ids(), inplace=True)
ax = axes[1, 1]
ax.plot(mode_pth, color='r', label='Mode Path')
ax.plot(mean_pth, color='b', label='Mean Path')
ax.set_title('Decoded Path')
ax.set_xlabel('Time')
ax.set_ylabel('Position')
ax.legend()
ax = axes[1, 2]
ax.imshow(posteriors, aspect='auto')
ax.set_title('Posterior Probability')
ax.set_xlabel('Time')
ax.set_ylabel('Position Bins')
plt.tight_layout()
plt.show()
widgets.interact(plot_replay, n=widgets.IntSlider(min=0, max=len(sig_swr_indices)-1, step=1, value=0));
nrn_order = np.argsort(np.nansum(pbias.task_normalized, axis=1)) sig_swr_indices = np.where(p_value_sig < 0.05)[0] def plot_replay(n): fig, axes = plt.subplots(2, 3, figsize=(11, 8)) swrs_sig = post_swrs[sig_swr_indices] sig_swr_index = np.atleast_2d(swrs_sig[n].data) bias = npy.ensemble.bias_matrix_fast( spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values, spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values, total_neurons=st.n_units, fillneutral=.5 ) bias = npy.ensemble.normalize_bias_matrix(bias) cossim = npy.ensemble.cosine_similarity_matrices( pbias.task_normalized, bias ) print(f"Epoch {n} Cosine Similarity: {cossim}") ax = axes[0, 0] ax.imshow(pbias.task_normalized[nrn_order, :][:, nrn_order], cmap='magma') ax.set_title('Template Bias Matrix') ax.set_xlabel('Neurons (reordered by bias direction)') ax.set_ylabel('Neurons (reordered by bias direction)') ax = axes[0, 1] ax.imshow(bias[nrn_order, :][:, nrn_order], cmap='magma') ax.set_title('Replay Bias Matrix') ax.set_xlabel('Neurons (reordered by bias direction)') ax.set_ylabel('Neurons (reordered by bias direction)') spike_times = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values spike_ids = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values # # order spikes and neuron ids by nrn_order # argsort = np.asarray(sorted(range(len(spike_ids)), key=lambda x: nrn_order[int(spike_ids[x])])) # spike_times = spike_times[argsort] # spike_ids = spike_ids[argsort] spike_id_ordermap = dict(zip(nrn_order, range(len(nrn_order)))) spike_ids = np.asarray([spike_id_ordermap[int(spike_id)] for spike_id in spike_ids], dtype=int) # raster plot ax = axes[0, 2] ax.scatter(spike_times, spike_ids, c='k', marker='|', s=18) ax.set_title('Replay Raster Plot') ax.set_xlabel('Time') ax.set_ylabel('Neurons (reordered by bias direction)') bst = sta_placecells[swrs_sig[n]].bin(ds=REPLAY_TIME_BIN_SIZE) posteriors, lengths, mode_pth, mean_pth = nel.decoding.decode1D( bst, tc, xmin=np.nanmin(pos.data), xmax=np.nanmax(pos.data) ) spike_times = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_times"].values spike_ids = spike_spindices[npy.process.in_intervals(spike_spindices.spike_times, sig_swr_index)]["spike_id"].values spike_id_ordermap = np.asarray(tc.get_peak_firing_order_ids()) - 1 spike_id_ordermap = dict(zip(spike_id_ordermap, range(len(spike_id_ordermap)))) # filter non-place cells spike_times = np.asarray([ts for i, ts in enumerate(spike_times) if spike_ids[i] in spike_id_ordermap]) spike_ids = np.asarray([id for id in spike_ids if id in spike_id_ordermap], dtype=int) # replace spike_ids with their peak firing order spike_ids = np.asarray([spike_id_ordermap[int(spike_id)] for spike_id in spike_ids], dtype=int) ax = axes[1, 0] ax.scatter(spike_times, spike_ids, c='k', marker='|') ax.set_title('Replay Raster Plot') ax.set_xlabel('Time') ax.set_ylabel('Neurons (reordered by peak firing order)') stswr = st[swrs_sig[n]] stswr = stswr._unit_subset(tc.get_peak_firing_order_ids()) stswr.reorder_units_by_ids(tc.get_peak_firing_order_ids(), inplace=True) ax = axes[1, 1] ax.plot(mode_pth, color='r', label='Mode Path') ax.plot(mean_pth, color='b', label='Mean Path') ax.set_title('Decoded Path') ax.set_xlabel('Time') ax.set_ylabel('Position') ax.legend() ax = axes[1, 2] ax.imshow(posteriors, aspect='auto') ax.set_title('Posterior Probability') ax.set_xlabel('Time') ax.set_ylabel('Position Bins') plt.tight_layout() plt.show() widgets.interact(plot_replay, n=widgets.IntSlider(min=0, max=len(sig_swr_indices)-1, step=1, value=0));
interactive(children=(IntSlider(value=0, description='n', max=96), Output()), _dom_classes=('widget-interact',… Section 6: Conclusion¶
In this tutorial, we've demonstrated how to use the PairwiseBias class to analyze neural replay events. We simulated task and post-task spike data, and then used the PairwiseBias object to detect significant replay events. The results show that our method can effectively distinguish between significant and non-significant replay, as evidenced by the Z-scores and p-values. The results are also compared with Bayesian decoding to show the consistency of replay detection.
Key observations:
- The task spike data visualization shows a clear sequential pattern across neurons.
- The significant post-task spike data maintains a similar sequential pattern, while the non-significant data appears more random.
- For significant replay, we see high Z-scores and low p-values (p < 0.05).
- For non-significant replay, we see mostly lower Z-scores and higher p-values (p > 0.05).
- The PairwiseBias and Bayesian decoder results show a reasonable degree of mutual consistency in replay detection.
