Neural Decoding¶

In this tutorial, we'll explore how to use the Deep Neural Network decoders in decoding submodule to analyze the neural correlates of behavior.

We will begin with synthetic data generation, followed by training and evaluating models on real neural data. The goal is to understand how neural activity can be decoded to predict behavioral outcomes.

Setup¶

First, let's import the necessary libraries and set up our environment.

Imports¶

In [1]:

  Copied!

%reload_ext autoreload
%autoreload 2
import logging
import random

import numpy as np
import matplotlib as mpl
import matplotlib.pyplot as plt
import sklearn
import pandas as pd
import torch
from torch import nn
import torch.nn.functional as F
import neuro_py as npy
import nelpy as nel
import ratinabox as rbx
import ipywidgets as widgets

from ratinabox.Neurons import PlaceCells

# Disable logging
logger = logging.getLogger()
logger.disabled = True
%reload_ext autoreload %autoreload 2 import logging import random import numpy as np import matplotlib as mpl import matplotlib.pyplot as plt import sklearn import pandas as pd import torch from torch import nn import torch.nn.functional as F import neuro_py as npy import nelpy as nel import ratinabox as rbx import ipywidgets as widgets from ratinabox.Neurons import PlaceCells # Disable logging logger = logging.getLogger() logger.disabled = True

Set device and random seed for reproducibility¶

In [2]:

  Copied!

def set_seed(seed=None, seed_torch=True):
    if seed is None:
        seed = np.random.choice(2 ** 32 - 1)
    random.seed(seed)
    np.random.seed(seed)
    if seed_torch:
        torch.manual_seed(seed)
        torch.cuda.manual_seed_all(seed)
        torch.cuda.manual_seed(seed)
        torch.backends.cudnn.benchmark = True
        torch.backends.cudnn.deterministic = True

    print(f'Random seed {seed} has been set.')
    return seed

def set_device():
    device = "cuda" if torch.cuda.is_available() else "cpu"
    if device != "cuda":
        print("GPU is not enabled.")
    else:
        print("GPU is enabled.")

    return device

SEED = set_seed(2025)
DEVICE = set_device()
def set_seed(seed=None, seed_torch=True): if seed is None: seed = np.random.choice(2 ** 32 - 1) random.seed(seed) np.random.seed(seed) if seed_torch: torch.manual_seed(seed) torch.cuda.manual_seed_all(seed) torch.cuda.manual_seed(seed) torch.backends.cudnn.benchmark = True torch.backends.cudnn.deterministic = True print(f'Random seed {seed} has been set.') return seed def set_device(): device = "cuda" if torch.cuda.is_available() else "cpu" if device != "cuda": print("GPU is not enabled.") else: print("GPU is enabled.") return device SEED = set_seed(2025) DEVICE = set_device()

Random seed 2025 has been set.
GPU is enabled.

Section 1: Decode Synthetic Neural Data¶

Section 1.1: Generate Synthetic Data¶

Section 1.1.1: Create Environment¶

The following function generates a cheeseboard-inspired maze environment for the agent:

In [3]:

  Copied!

def create_cheeseboard_maze(radius=6.8, nrewards=3, nwellsonaxis=17, nseparationunits=4):
    """
    Creates a cheeseboard-inspired maze using RatInABox with a circular environment
    and a grid of navigable positions.
    """
    # make a bulb shaped boundary
    environment = rbx.Environment(
        params = dict(
            boundary=[[0.5*np.cos(t),0.5*np.sin(t)] for t in np.linspace(0,2*np.pi,100)],
            boundary_conditions="solid",
            dimensionality='2D',
        )
    )

    # Generate the grid of positions
    x = np.linspace(-radius*1.03, radius*1.03, nwellsonaxis)
    y = np.linspace(-radius*1.03, radius*1.03, nwellsonaxis)
    X, Y = np.meshgrid(x, y)
    grid_positions = np.vstack([X.flatten(), Y.flatten()]).T
    separationunit = np.sqrt((x[1] - x[0])**2 + (y[1] - y[0])**2)

    # Filter positions to stay within the circle
    circle_mask = (X**2 + Y**2) <= radius**2
    grid_positions_within_circle = grid_positions[circle_mask.flatten()]

    # Randomly pick 3 points with a minimum separation
    def pick_random_points(points, num_points=3, min_dist=4):
        chosen_points = []
        chosen_points_indices = []
        while len(chosen_points) < num_points:
            candidate_idx = np.random.choice(len(points))
            candidate = points[candidate_idx]
            if all(np.linalg.norm(candidate - p) >= min_dist for p in chosen_points):
                chosen_points.append(candidate)
                chosen_points_indices.append(candidate_idx)
        return np.array(chosen_points_indices)

    reward_indices = pick_random_points(
        grid_positions_within_circle,
        num_points=nrewards,
        min_dist=separationunit*nseparationunits
    )

    # add wells
    for i, gp in enumerate(grid_positions_within_circle):
        environment.add_object(gp/(radius*2))

    return environment, reward_indices

environment, reward_indices = create_cheeseboard_maze()
def create_cheeseboard_maze(radius=6.8, nrewards=3, nwellsonaxis=17, nseparationunits=4): """ Creates a cheeseboard-inspired maze using RatInABox with a circular environment and a grid of navigable positions. """ # make a bulb shaped boundary environment = rbx.Environment( params = dict( boundary=[[0.5*np.cos(t),0.5*np.sin(t)] for t in np.linspace(0,2*np.pi,100)], boundary_conditions="solid", dimensionality='2D', ) ) # Generate the grid of positions x = np.linspace(-radius*1.03, radius*1.03, nwellsonaxis) y = np.linspace(-radius*1.03, radius*1.03, nwellsonaxis) X, Y = np.meshgrid(x, y) grid_positions = np.vstack([X.flatten(), Y.flatten()]).T separationunit = np.sqrt((x[1] - x[0])**2 + (y[1] - y[0])**2) # Filter positions to stay within the circle circle_mask = (X**2 + Y**2) <= radius**2 grid_positions_within_circle = grid_positions[circle_mask.flatten()] # Randomly pick 3 points with a minimum separation def pick_random_points(points, num_points=3, min_dist=4): chosen_points = [] chosen_points_indices = [] while len(chosen_points) < num_points: candidate_idx = np.random.choice(len(points)) candidate = points[candidate_idx] if all(np.linalg.norm(candidate - p) >= min_dist for p in chosen_points): chosen_points.append(candidate) chosen_points_indices.append(candidate_idx) return np.array(chosen_points_indices) reward_indices = pick_random_points( grid_positions_within_circle, num_points=nrewards, min_dist=separationunit*nseparationunits ) # add wells for i, gp in enumerate(grid_positions_within_circle): environment.add_object(gp/(radius*2)) return environment, reward_indices environment, reward_indices = create_cheeseboard_maze()

Section 1.1.2: Create Agent and Place Cells encoding agent's position¶

In [4]:

  Copied!

agent = rbx.Agent(environment)

N_NEURONS = 10
TIME = 10
bins = int(TIME * 60 / agent.dt)
placecells = PlaceCells(
    agent,
    params=dict(
        description="gaussian_threshold", widths=0.3, n=N_NEURONS, color="C1",
        wall_geometry='line_of_sight'
    ),
)

# simulate the agent in the maze
for i in range(bins):
    agent.update()
    placecells.update()

agent.plot_trajectory();
agent = rbx.Agent(environment) N_NEURONS = 10 TIME = 10 bins = int(TIME * 60 / agent.dt) placecells = PlaceCells( agent, params=dict( description="gaussian_threshold", widths=0.3, n=N_NEURONS, color="C1", wall_geometry='line_of_sight' ), ) # simulate the agent in the maze for i in range(bins): agent.update() placecells.update() agent.plot_trajectory();

WARNING: This figure has not been saved.
    • To AUTOMATICALLY save all plots (recommended), set  `ratinabox.autosave_plots = True`
    • To MANUALLY save plots, call                        `ratinabox.utils.save_figure(figure_object, save_title).
      This warning will not be shown again
HINT: You can stylize plots to make them look like repo/paper by calling `ratinabox.stylize_plots()`
      This hint will not be shown again

No description has been provided for this image

In [5]:

  Copied!

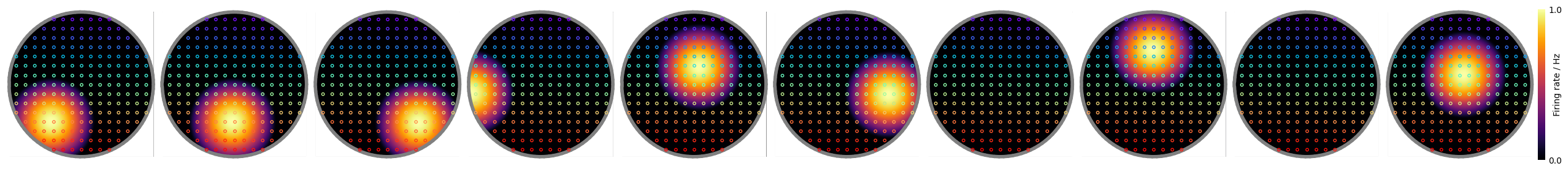

fig, ax = placecells.plot_rate_map(chosen_neurons="all")
fig, ax = placecells.plot_rate_map(chosen_neurons="all")

In [6]:

  Copied!

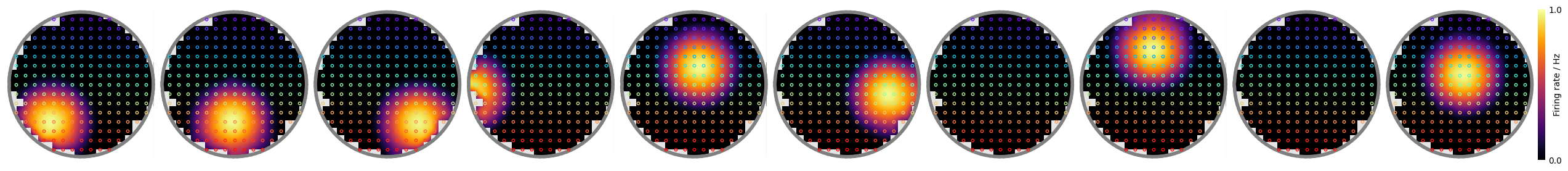

placecells.plot_rate_map(method="history");
placecells.plot_rate_map(method="history");

Section 1.2: Prepare Data for Decoding¶

Extract firing rates from the place cells and the agent's positional trajectory

In [7]:

  Copied!

t_start = 0.0  # seconds
t_end = bins
t = np.array(placecells.history["t"])
i_start = (0 if t_start is None else np.argmin(np.abs(t - t_start)))
i_end = (-1 if t_end is None else np.argmin(np.abs(t - t_end)))
t = t[i_start:i_end]  # subsample data for training (most of it is redundant anyway)
neural_data = np.array(placecells.history["firingrate"])[i_start:i_end]
trajectory = np.array(placecells.Agent.history["pos"])[i_start:i_end]
t_start = 0.0 # seconds t_end = bins t = np.array(placecells.history["t"]) i_start = (0 if t_start is None else np.argmin(np.abs(t - t_start))) i_end = (-1 if t_end is None else np.argmin(np.abs(t - t_end))) t = t[i_start:i_end] # subsample data for training (most of it is redundant anyway) neural_data = np.array(placecells.history["firingrate"])[i_start:i_end] trajectory = np.array(placecells.Agent.history["pos"])[i_start:i_end]

Format the neural data and behavioral variables (here, position) for decoding:

In [8]:

  Copied!

# Convert neural data and trajectory into training format
neural_data_df = pd.DataFrame(neural_data)  # Neural data as DataFrame
predict_bv = ["x", "y"]
trajectory_df = pd.DataFrame(trajectory, columns=predict_bv)  # Positions

# Split into training and testing sets (e.g., 80% train, 20% test)
split_idx = int(0.8 * len(neural_data_df))
train_neural, test_neural = neural_data_df[:split_idx], neural_data_df[split_idx:]
train_trajectory, test_trajectory = trajectory_df[:split_idx], trajectory_df[split_idx:]
# Convert neural data and trajectory into training format neural_data_df = pd.DataFrame(neural_data) # Neural data as DataFrame predict_bv = ["x", "y"] trajectory_df = pd.DataFrame(trajectory, columns=predict_bv) # Positions # Split into training and testing sets (e.g., 80% train, 20% test) split_idx = int(0.8 * len(neural_data_df)) train_neural, test_neural = neural_data_df[:split_idx], neural_data_df[split_idx:] train_trajectory, test_trajectory = trajectory_df[:split_idx], trajectory_df[split_idx:]

In [9]:

  Copied!

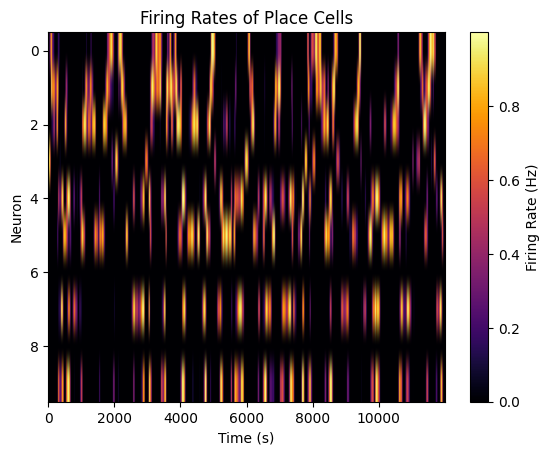

plt.imshow(neural_data_df.T, aspect="auto", cmap="inferno")
plt.xlabel("Time (s)")
plt.ylabel("Neuron")
plt.title("Firing Rates of Place Cells")
plt.colorbar(label="Firing Rate (Hz)")
plt.show()
plt.imshow(neural_data_df.T, aspect="auto", cmap="inferno") plt.xlabel("Time (s)") plt.ylabel("Neuron") plt.title("Firing Rates of Place Cells") plt.colorbar(label="Firing Rate (Hz)") plt.show()

Section 1.3: Train Linear and Gaussian Process Decoders¶

Train simple decoders for baseline comparison with DNN decoders:

For best practices, it is important to always compare the performance of the DNN decoders with simpler models to ensure that the additional complexity is justified.

Section 1.3.1: Linear Decoder (Ridge Regression)¶

In [10]:

  Copied!

ridge = sklearn.linear_model.Ridge(alpha=0.01)
ridge.fit(train_neural, train_trajectory)
ridge.score(test_neural, test_trajectory)
ridge = sklearn.linear_model.Ridge(alpha=0.01) ridge.fit(train_neural, train_trajectory) ridge.score(test_neural, test_trajectory)

Out[10]:

0.7262108789743416

Section 1.3.2: Gaussian Process (GP) Decoder¶

In [11]:

  Copied!

# Initialise and fit model
model_GP = sklearn.gaussian_process.GaussianProcessRegressor(
    alpha=0.01,
    kernel=sklearn.gaussian_process.kernels.RBF(
        1 * np.sqrt(N_NEURONS / 20),  # <-- kernel size scales with typical input size ~sqrt(N)
        length_scale_bounds="fixed",
    ),
)
model_GP.fit(train_neural, train_trajectory)
model_GP.score(test_neural, test_trajectory)
# Initialise and fit model model_GP = sklearn.gaussian_process.GaussianProcessRegressor( alpha=0.01, kernel=sklearn.gaussian_process.kernels.RBF( 1 * np.sqrt(N_NEURONS / 20), # <-- kernel size scales with typical input size ~sqrt(N) length_scale_bounds="fixed", ), ) model_GP.fit(train_neural, train_trajectory) model_GP.score(test_neural, test_trajectory)

Out[11]:

0.8795175641295223

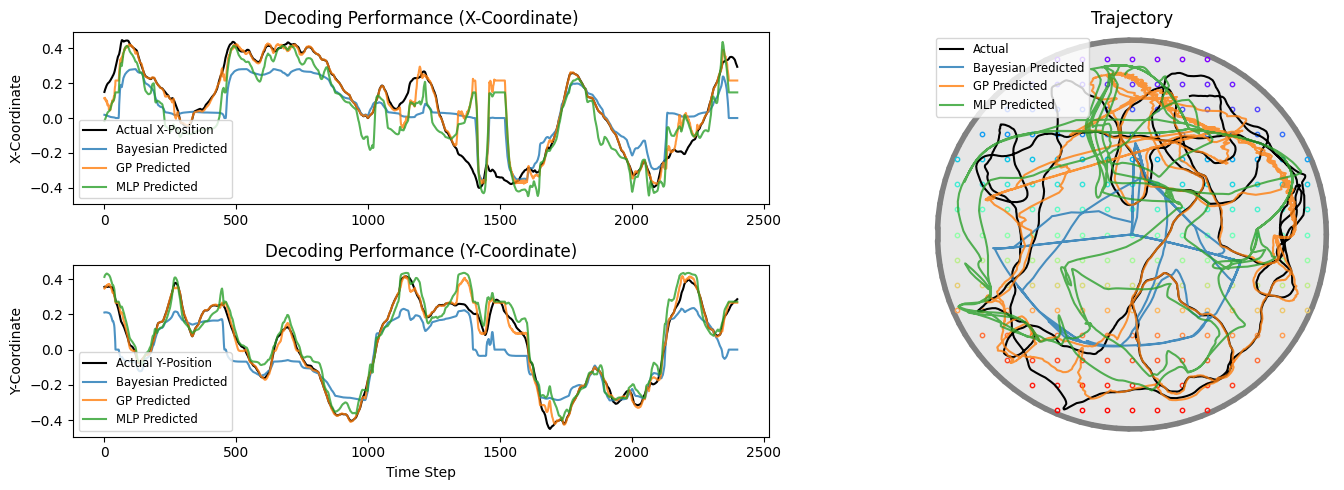

Section 1.4: Train and Evaluate the DNN Decoder¶

Set up the decoder model and hyperparameters. For example, use an MLP decoder.

We refer description of key hyperparameters that impact model performance:

In [12]:

  Copied!

help(npy.ensemble.decoding.train_model)
help(npy.ensemble.decoding.train_model)

Help on function train_model in module neuro_py.ensemble.decoding.pipeline:

train_model(partitions, hyperparams, resultspath=None, stop_partition=None)
    Generic function to train a DNN model on the given data partitions.

    Parameters
    ----------
    partitions : array-like
        K-fold partitions of the data with the following format:
        [(nsv_train, bv_train, nsv_val, bv_val, nsv_test, bv_test), ...]
        Each element of the list is a tuple of numpy arrays containing the with
        pairs of neural state vectors and behavioral variables for the training,
        validation, and test sets. Each array has the shape
        (ntrials, nbins, nfeats) where nfeats is the number of neurons for the
        neural state vectors and number of behavioral features to be predicted
        for the behavioral variables.
    hyperparams : dict
        Dictionary containing the hyperparameters for the model training. The
        dictionary should contain the following keys:
        - `model`: str, the type of the model to be trained. Multi-layer
            Perceptron (MLP), Long Short-Term Memory (LSTM), many-to-many LSTM
            (M2MLSTM), Transformer (NDT).
        - `model_args`: dict, the arguments to be passed to the model
            constructor. The arguments should be in the format expected by the
            model constructor.
            - `in_dim`: The number of input features.
            - `out_dim`: The number of output features.
            - `hidden_dim`: The number of hidden units each hidden layer of the
                model. Can also take float values to specify the dropout rate.
                For LSTM and M2MLSTM, it should be a tuple of the hidden size,
                the number of layers, and the dropout rate.
            - `args`:
                - `clf`: If True, the model is a classifier; otherwise, it is a
                    regressor.
                - `activations`: The activation functions for each layer.
                - `criterion`: The loss function to optimize.
                - `epochs`: The number of complete passes through the training
                    dataset.
                - `lr`: Controls how much to change the model in response to the
                    estimated error each time the model weights are updated. A
                    smaller value ensures stable convergence but may slow down
                    training, while a larger value speeds up training but risks
                    overshooting.
                - `base_lr`: The initial learning rate for the learning rate
                    scheduler.
                - `max_grad_norm`: The maximum norm of the gradients.
                - `iters_to_accumulate`: The number of iterations to accumulate
                    gradients.
                - `weight_decay`: The L2 regularization strength.
                - `num_training_batches`: The number of training batches. If
                    None, the number of batches is calculated based on the batch
                    size and the length of the training data.
                - `scheduler_step_size_multiplier`: The multiplier for the
                    learning rate scheduler step size. Higher values lead to
                    faster learning rate decay.
        - `bins_before`: int, the number of bins before the current bin to
            include in the input data.
        - `bins_current`: int, the number of bins in the current time bin to
            include in the input data.
        - `bins_after`: int, the number of bins after the current bin to include
            in the input data.
        - `behaviors`: list, the indices of the columns of behavioral features
            to be predicted. Selected behavioral variable must have homogenous
            data types across all features (continuous for regression and
            categorical for classification)
        - `batch_size`: int, the number of training examples utilized in one
            iteration. Larger batch sizes offer stable gradient estimates but
            require more memory, while smaller batches introduce noise that can
            help escape local minima.
        - `num_workers`: int, The number of parallel processes to use for data
            loading. Increasing the number of workers can speed up data loading
            but may lead to memory issues. Too many workers can also slow down
            the training process due to contention for resources.
        - `device`: str, the device to use for training. Should be 'cuda' or
            'cpu'.
        - `seed`: int, the random seed for reproducibility.
    resultspath : str or None, optional
        Path to the directory where the trained models and logs will be saved.
    stop_partition : int, optional
        Index of the partition to stop training at. Only useful for debugging,
        by default None

    Returns
    -------
    tuple
        Tuple containing the predicted behavioral variables for each fold,
        the trained models for each fold, the normalization parameters for each
        fold, and the evaluation metrics for each fold.

In [13]:

  Copied!

decoder_type = 'MLP'  # Select decoder type (e.g., MLP)
hyperparams = dict(
    batch_size=512*4,
    num_workers=5,
    model=decoder_type,
    model_args=dict(
        in_dim=train_neural.shape[1],
        out_dim=train_trajectory.shape[1],
        hidden_dims=[64, 32, 16, 8],
        args=dict(
            clf=False,
            activations=nn.CELU,
            criterion=F.mse_loss,
            epochs=10,
            lr=3e-2,
            base_lr=1e-2,
            max_grad_norm=1.,
            iters_to_accumulate=1,
            weight_decay=1e-2,
            num_training_batches=None,
            scheduler_step_size_multiplier=1,
        )
    ),
    behaviors=[0, 1],
    bins_before=0,
    bins_current=1,
    bins_after=0,
    device=DEVICE,
    seed=SEED
)
decoder_type = 'MLP' # Select decoder type (e.g., MLP) hyperparams = dict( batch_size=512*4, num_workers=5, model=decoder_type, model_args=dict( in_dim=train_neural.shape[1], out_dim=train_trajectory.shape[1], hidden_dims=[64, 32, 16, 8], args=dict( clf=False, activations=nn.CELU, criterion=F.mse_loss, epochs=10, lr=3e-2, base_lr=1e-2, max_grad_norm=1., iters_to_accumulate=1, weight_decay=1e-2, num_training_batches=None, scheduler_step_size_multiplier=1, ) ), behaviors=[0, 1], bins_before=0, bins_current=1, bins_after=0, device=DEVICE, seed=SEED )

Train the decoder using the train_model function:

In [14]:

  Copied!

partitions = [
    (train_neural, train_trajectory,
    test_neural, test_trajectory,
    test_neural, test_trajectory)
]

# Train the model using the pipeline function from your decoder module
results_path = None  # checkpoints will be saved to this path, optimizing reruns
bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model(
    partitions, hyperparams, resultspath=results_path)
partitions = [ (train_neural, train_trajectory, test_neural, test_trajectory, test_neural, test_trajectory) ] # Train the model using the pipeline function from your decoder module results_path = None # checkpoints will be saved to this path, optimizing reruns bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model( partitions, hyperparams, resultspath=results_path)

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
You are using a CUDA device ('NVIDIA GeForce RTX 4080 SUPER') that has Tensor Cores. To properly utilize them, you should set `torch.set_float32_matmul_precision('medium' | 'high')` which will trade-off precision for performance. For more details, read https://pytorch.org/docs/stable/generated/torch.set_float32_matmul_precision.html#torch.set_float32_matmul_precision
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 3.5 K  | train
--------------------------------------------
3.5 K     Trainable params
0         Non-trainable params
3.5 K     Total params
0.014     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_epochs=10` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.011781885288655758    │
└───────────────────────────┴───────────────────────────┘

Variance weighed avg. coefficient of determination: 0.8003649387327375
RMSE: 0.09671944566294162

Section 1.5: Visualize Results¶

Plot predictions versus ground truth to evaluate decoding performance:

In [15]:

  Copied!

predicted_x = bv_preds_folds[0][:, 0]
predicted_y = bv_preds_folds[0][:, 1]
true_x = test_trajectory['x'].values
true_y = test_trajectory['y'].values

# Plotting
figsize=(15, 5)

fig = plt.figure(figsize=figsize, constrained_layout=True)
nrows, ncols = 2, 3
gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols)

ax = fig.add_subplot(gs[0, 0:2])
# X-coordinate plot
ax.plot(true_x, label="Actual X-Position")
ax.plot(predicted_x, label="Predicted X-Position")
ax.set_ylabel("X-Coordinate")
ax.set_title("Decoding Performance (X-Coordinate)")
ax.legend()

ax = fig.add_subplot(gs[1, 0:2])
# Y-coordinate plot
ax.plot(true_y, label="Actual Y-Position")
ax.plot(predicted_y, label="Predicted Y-Position")
ax.set_xlabel("Time Step")
ax.set_ylabel("Y-Coordinate")
ax.set_title("Decoding Performance (Y-Coordinate)")
ax.legend()


ax = fig.add_subplot(gs[:, 2])
ax.plot(*partitions[0][-1].to_numpy().T, label="Actual")
ax.plot(*bv_preds_folds[0].T, label="Predicted")
ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_title("Predicted vs Actual Trajectory")
ax.legend()

plt.tight_layout()
plt.show()
predicted_x = bv_preds_folds[0][:, 0] predicted_y = bv_preds_folds[0][:, 1] true_x = test_trajectory['x'].values true_y = test_trajectory['y'].values # Plotting figsize=(15, 5) fig = plt.figure(figsize=figsize, constrained_layout=True) nrows, ncols = 2, 3 gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols) ax = fig.add_subplot(gs[0, 0:2]) # X-coordinate plot ax.plot(true_x, label="Actual X-Position") ax.plot(predicted_x, label="Predicted X-Position") ax.set_ylabel("X-Coordinate") ax.set_title("Decoding Performance (X-Coordinate)") ax.legend() ax = fig.add_subplot(gs[1, 0:2]) # Y-coordinate plot ax.plot(true_y, label="Actual Y-Position") ax.plot(predicted_y, label="Predicted Y-Position") ax.set_xlabel("Time Step") ax.set_ylabel("Y-Coordinate") ax.set_title("Decoding Performance (Y-Coordinate)") ax.legend() ax = fig.add_subplot(gs[:, 2]) ax.plot(*partitions[0][-1].to_numpy().T, label="Actual") ax.plot(*bv_preds_folds[0].T, label="Predicted") ax.set_xlabel("x") ax.set_ylabel("y") ax.set_title("Predicted vs Actual Trajectory") ax.legend() plt.tight_layout() plt.show()

/tmp/ipykernel_1782887/1205989260.py:39: UserWarning: The figure layout has changed to tight

The results of decoding using DNNs are not that greater than the linear and GP decoders. This is because the data is cleanly simulated and the DNN is overkill for this task. However, in real data, the DNN decoder will likely outperform the linear and GP decoders.

Section 2: Trial Segmented Decoding¶

Before we move on to real neural data, let's first understand how to decode neural data in a trial-segmented manner. This is useful when the neural data is segmented into trials, and we want to decode each trial separately.

Section 2.1: Generate Synthetic Trial Segmented Data¶

In [16]:

  Copied!

environment, reward_indices = create_cheeseboard_maze()

agent = rbx.Agent(environment)
init_pos = np.asarray([0, -.48])
print(f"Agent initialized in Cheeseboard Maze: {agent.pos}")

N_NEURONS = 50
N_TRIALS = 100
placecells = PlaceCells(
    agent,
    params=dict(
        description="gaussian_threshold", widths=0.3, n=N_NEURONS, color="C1",
        wall_geometry='line_of_sight'
    ),
)

checkpts_coords = [environment.objects['objects'][reward_idx] for reward_idx in reward_indices]
checkpts_coords = [init_pos] + checkpts_coords + [init_pos]

trial_epochs = []
trial_epoch = []
for n in range(N_TRIALS):
    for goal_coords in checkpts_coords:
        # simulate the agent in the maze
        while True:
            dir_to_goal = goal_coords - agent.pos
            drift_vel = (
                3 * agent.speed_mean * dir_to_goal / np.linalg.norm(dir_to_goal)
            )
            agent.update(drift_velocity=drift_vel)
            placecells.update()

            # if animal is close to reward, break
            if np.linalg.norm(dir_to_goal) < 0.01:
                if np.all(goal_coords == init_pos):
                    trial_epoch.append(agent.t)
                    if len(trial_epoch) == 2:
                        trial_epochs.append(trial_epoch)
                        trial_epoch = []
                break

agent.plot_trajectory(trial_epochs[0][0], trial_epochs[-1][1], linewidth=1)
# plot rewards
for i in reward_indices:
    plt.plot(*environment.objects['objects'][i], 'ko')
environment, reward_indices = create_cheeseboard_maze() agent = rbx.Agent(environment) init_pos = np.asarray([0, -.48]) print(f"Agent initialized in Cheeseboard Maze: {agent.pos}") N_NEURONS = 50 N_TRIALS = 100 placecells = PlaceCells( agent, params=dict( description="gaussian_threshold", widths=0.3, n=N_NEURONS, color="C1", wall_geometry='line_of_sight' ), ) checkpts_coords = [environment.objects['objects'][reward_idx] for reward_idx in reward_indices] checkpts_coords = [init_pos] + checkpts_coords + [init_pos] trial_epochs = [] trial_epoch = [] for n in range(N_TRIALS): for goal_coords in checkpts_coords: # simulate the agent in the maze while True: dir_to_goal = goal_coords - agent.pos drift_vel = ( 3 * agent.speed_mean * dir_to_goal / np.linalg.norm(dir_to_goal) ) agent.update(drift_velocity=drift_vel) placecells.update() # if animal is close to reward, break if np.linalg.norm(dir_to_goal) < 0.01: if np.all(goal_coords == init_pos): trial_epoch.append(agent.t) if len(trial_epoch) == 2: trial_epochs.append(trial_epoch) trial_epoch = [] break agent.plot_trajectory(trial_epochs[0][0], trial_epochs[-1][1], linewidth=1) # plot rewards for i in reward_indices: plt.plot(*environment.objects['objects'][i], 'ko')

Agent initialized in Cheeseboard Maze: [-0.24221668  0.15734778]

Section 2.2: Prepare Data for Decoding¶

In [17]:

  Copied!

nsv_trials = []
bv_trials = []
for t_start, t_end in trial_epochs:
    t = np.array(placecells.history["t"])
    i_start = (0 if t_start is None else np.argmin(np.abs(t - t_start)))
    i_end = (-1 if t_end is None else np.argmin(np.abs(t - t_end)))
    t = t[i_start:i_end]  # subsample data for training (most of it is redundant anyway)
    neural_data = np.array(placecells.history["firingrate"])[i_start:i_end]
    # Inject some noise to the neural data
    noise = np.random.normal(0, 0.1, neural_data.shape)
    neural_data += noise
    nsv_trials.append(pd.DataFrame(neural_data))
    trajectory = np.array(placecells.Agent.history["pos"])[i_start:i_end]
    bv_trials.append(pd.DataFrame(trajectory))
nsv_trials = np.asarray(nsv_trials, dtype=object)
bv_trials = np.asarray(bv_trials, dtype=object)
nsv_trials = [] bv_trials = [] for t_start, t_end in trial_epochs: t = np.array(placecells.history["t"]) i_start = (0 if t_start is None else np.argmin(np.abs(t - t_start))) i_end = (-1 if t_end is None else np.argmin(np.abs(t - t_end))) t = t[i_start:i_end] # subsample data for training (most of it is redundant anyway) neural_data = np.array(placecells.history["firingrate"])[i_start:i_end] # Inject some noise to the neural data noise = np.random.normal(0, 0.1, neural_data.shape) neural_data += noise nsv_trials.append(pd.DataFrame(neural_data)) trajectory = np.array(placecells.Agent.history["pos"])[i_start:i_end] bv_trials.append(pd.DataFrame(trajectory)) nsv_trials = np.asarray(nsv_trials, dtype=object) bv_trials = np.asarray(bv_trials, dtype=object)

In [18]:

  Copied!

def visualize_trial(t=0):
    fig, ax = plt.subplots(1, 2, figsize=(10, 5))
    ax[0].imshow(nsv_trials[t].to_numpy().T, aspect="auto", cmap="inferno")
    ax[0].set_xlabel("Time (s)")
    ax[0].set_ylabel("Neuron")
    ax[0].set_title("Firing Rates of Cells")

    environment.plot_environment(fig, ax=ax[1])
    ax[1].plot(*bv_trials[t].to_numpy().T, label="Position")
    # plot rewards
    ax[1].plot(*environment.objects['objects'][reward_indices].T, 'ko', label="Reward")
    ax[1].set_xlabel("x")
    ax[1].set_xlabel("y")
    ax[1].set_title("Trajectory")
    # plot first 2 legend only
    ax[1].legend()
    plt.show()

widgets.interact(visualize_trial, t=(0, len(nsv_trials) - 1, 1));
def visualize_trial(t=0): fig, ax = plt.subplots(1, 2, figsize=(10, 5)) ax[0].imshow(nsv_trials[t].to_numpy().T, aspect="auto", cmap="inferno") ax[0].set_xlabel("Time (s)") ax[0].set_ylabel("Neuron") ax[0].set_title("Firing Rates of Cells") environment.plot_environment(fig, ax=ax[1]) ax[1].plot(*bv_trials[t].to_numpy().T, label="Position") # plot rewards ax[1].plot(*environment.objects['objects'][reward_indices].T, 'ko', label="Reward") ax[1].set_xlabel("x") ax[1].set_xlabel("y") ax[1].set_title("Trajectory") # plot first 2 legend only ax[1].legend() plt.show() widgets.interact(visualize_trial, t=(0, len(nsv_trials) - 1, 1));

interactive(children=(IntSlider(value=0, description='t', max=99), Output()), _dom_classes=('widget-interact',…

In [19]:

  Copied!

fold_indices = npy.ensemble.decoding.split_data(
    nsv_trials, np.random.randint(0, 2, size=len(nsv_trials)), 0.6)
partition_indices = npy.ensemble.decoding.partition_indices(fold_indices)
partitions = npy.ensemble.decoding.partition_sets(
    partition_indices, nsv_trials, bv_trials)
fold_indices = npy.ensemble.decoding.split_data( nsv_trials, np.random.randint(0, 2, size=len(nsv_trials)), 0.6) partition_indices = npy.ensemble.decoding.partition_indices(fold_indices) partitions = npy.ensemble.decoding.partition_sets( partition_indices, nsv_trials, bv_trials)

Section 2.3: Train Linear Decoder¶

Although Gaussian Process decoders can also be used for trial-segmented decoding, it is computationally expensive. Here, we will use only a linear decoder for simplicity.

In [20]:

  Copied!

bv_test_pred_ridge = []
for nsv_train, bv_train, nsv_val, bv_val, nsv_test, bv_test in partitions:
    ridge = sklearn.linear_model.Ridge(alpha=0.01)
    ridge.fit(np.concatenate(nsv_train), np.concatenate(bv_train))
    bv_test_pred = ridge.predict(np.concatenate(nsv_test))
    bv_test_pred_ridge.append(bv_test_pred)

sklearn.metrics.r2_score(
    np.concatenate([np.concatenate(p[-1]) for p in partitions]),
    np.concatenate(bv_test_pred_ridge)
)
bv_test_pred_ridge = [] for nsv_train, bv_train, nsv_val, bv_val, nsv_test, bv_test in partitions: ridge = sklearn.linear_model.Ridge(alpha=0.01) ridge.fit(np.concatenate(nsv_train), np.concatenate(bv_train)) bv_test_pred = ridge.predict(np.concatenate(nsv_test)) bv_test_pred_ridge.append(bv_test_pred) sklearn.metrics.r2_score( np.concatenate([np.concatenate(p[-1]) for p in partitions]), np.concatenate(bv_test_pred_ridge) )

Out[20]:

0.9649046060749725

Section 2.4: Train and Evaluate the DNN Decoder¶

In [21]:

  Copied!

decoder_type = 'MLP'  # Select decoder type (e.g., MLP)
hyperparams = dict(
    batch_size=512*4,
    num_workers=5,
    model=decoder_type,
    model_args=dict(
        in_dim=nsv_trials[0].shape[1],
        out_dim=bv_trials[0].shape[1],
        hidden_dims=[64, 32, 16, 8],
        args=dict(
            clf=False,
            activations=nn.CELU,
            criterion=F.mse_loss,
            epochs=10,
            lr=3e-2,
            base_lr=1e-2,
            max_grad_norm=1.,
            iters_to_accumulate=1,
            weight_decay=1e-2,
            num_training_batches=None,
            scheduler_step_size_multiplier=1,
        )
    ),
    behaviors=[0, 1],
    bins_before=0,
    bins_current=1,
    bins_after=0,
    device=DEVICE,
    seed=SEED
)
decoder_type = 'MLP' # Select decoder type (e.g., MLP) hyperparams = dict( batch_size=512*4, num_workers=5, model=decoder_type, model_args=dict( in_dim=nsv_trials[0].shape[1], out_dim=bv_trials[0].shape[1], hidden_dims=[64, 32, 16, 8], args=dict( clf=False, activations=nn.CELU, criterion=F.mse_loss, epochs=10, lr=3e-2, base_lr=1e-2, max_grad_norm=1., iters_to_accumulate=1, weight_decay=1e-2, num_training_batches=None, scheduler_step_size_multiplier=1, ) ), behaviors=[0, 1], bins_before=0, bins_current=1, bins_after=0, device=DEVICE, seed=SEED )

In [22]:

  Copied!

# Train the model using the pipeline function from your decoder module
results_path = "results"
bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model(
    partitions, hyperparams, resultspath=results_path)
# Train the model using the pipeline function from your decoder module results_path = "results" bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model( partitions, hyperparams, resultspath=results_path)

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 6.0 K  | train
--------------------------------------------
6.0 K     Trainable params
0         Non-trainable params
6.0 K     Total params
0.024     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_epochs=50` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.0005353732849471271   │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/2642124120 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 6.0 K  | train
--------------------------------------------
6.0 K     Trainable params
0         Non-trainable params
6.0 K     Total params
0.024     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.9880966030454236
RMSE: 0.023135812839817575

`Trainer.fit` stopped: `max_epochs=50` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.000487027718918398    │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/2642124120 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 6.0 K  | train
--------------------------------------------
6.0 K     Trainable params
0         Non-trainable params
6.0 K     Total params
0.024     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.9887515784011035
RMSE: 0.022055599437938077

`Trainer.fit` stopped: `max_epochs=50` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.0005021715769544244   │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/2642124120 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 6.0 K  | train
--------------------------------------------
6.0 K     Trainable params
0         Non-trainable params
6.0 K     Total params
0.024     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.9879894805486882
RMSE: 0.02239556298226532

`Trainer.fit` stopped: `max_epochs=50` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.0005372166051529348   │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/2642124120 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 6.0 K  | train
--------------------------------------------
6.0 K     Trainable params
0         Non-trainable params
6.0 K     Total params
0.024     Total estimated model params size (MB)
10        Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.987543710812684
RMSE: 0.02316057034376892

`Trainer.fit` stopped: `max_epochs=50` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │   0.0006134471041150391   │
└───────────────────────────┴───────────────────────────┘

Variance weighed avg. coefficient of determination: 0.9855258951120814
RMSE: 0.024758977393035616

Section 2.5: Visualize Results¶

In [23]:

  Copied!

bv_preds_dnn_trials = np.concatenate([
    bv_preds_fold + norm_params_folds[i]['y_train_mean']
    for i, bv_preds_fold in enumerate(bv_preds_folds)
])
bv_preds_ridge_trials = np.concatenate(bv_test_pred_ridge)
bv_actual_trials = np.concatenate([np.concatenate(p[-1]) for p in partitions])
trial_lengths = [len(trial) for p in partitions for trial in p[-1]]
trial_indices = np.cumsum(trial_lengths)

bv_preds_dnn_trials = np.split(bv_preds_dnn_trials, trial_indices[:-1])
bv_preds_ridge_trials = np.split(bv_preds_ridge_trials, trial_indices[:-1])
bv_actual_trials = np.split(bv_actual_trials, trial_indices[:-1])

def visualize_predicted_trial(trial=0):
    # Plotting
    figsize=(15, 5)

    fig = plt.figure(figsize=figsize)
    nrows, ncols = 2, 4
    gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols)

    ax = fig.add_subplot(gs[0, 0:2])
    # X-coordinate plot
    ax.plot(bv_actual_trials[trial][:, 0], label="Actual X-Position")
    ax.plot(bv_preds_ridge_trials[trial][:, 0], label="Ridge Predicted X-Position")
    ax.plot(bv_preds_dnn_trials[trial][:, 0], label=f"{decoder_type} Predicted X-Position")
    ax.set_ylabel("X-Coordinate")
    ax.set_title("Decoding Performance (X-Coordinate)")
    ax.legend()

    ax = fig.add_subplot(gs[1, 0:2])
    # Y-coordinate plot
    ax.plot(bv_actual_trials[trial][:, 1], label="Actual Y-Position")
    ax.plot(bv_preds_ridge_trials[trial][:, 1], label="Ridge Predicted Y-Position")
    ax.plot(bv_preds_dnn_trials[trial][:, 1], label=f"{decoder_type} Predicted Y-Position")
    ax.set_xlabel("Time Step")
    ax.set_ylabel("Y-Coordinate")
    ax.set_title("Decoding Performance (Y-Coordinate)")
    ax.legend()

    ax = fig.add_subplot(gs[:, 2:])
    environment.plot_environment(fig, ax=ax)
    ax.plot(*bv_actual_trials[trial].T, label="Actual")
    ax.plot(*bv_preds_ridge_trials[trial].T, label="Ridge Predicted")
    ax.plot(*bv_preds_dnn_trials[trial].T, label=f"{decoder_type} Predicted")
    # plot rewards
    ax.plot(*environment.objects['objects'][reward_indices].T, 'ko', label="Reward")
    ax.set_title("Trajectory")
    # plot first 2 legend only
    ax.legend()
    plt.show()

widgets.interact(visualize_predicted_trial, trial=(0, len(nsv_trials) - 1, 1));
bv_preds_dnn_trials = np.concatenate([ bv_preds_fold + norm_params_folds[i]['y_train_mean'] for i, bv_preds_fold in enumerate(bv_preds_folds) ]) bv_preds_ridge_trials = np.concatenate(bv_test_pred_ridge) bv_actual_trials = np.concatenate([np.concatenate(p[-1]) for p in partitions]) trial_lengths = [len(trial) for p in partitions for trial in p[-1]] trial_indices = np.cumsum(trial_lengths) bv_preds_dnn_trials = np.split(bv_preds_dnn_trials, trial_indices[:-1]) bv_preds_ridge_trials = np.split(bv_preds_ridge_trials, trial_indices[:-1]) bv_actual_trials = np.split(bv_actual_trials, trial_indices[:-1]) def visualize_predicted_trial(trial=0): # Plotting figsize=(15, 5) fig = plt.figure(figsize=figsize) nrows, ncols = 2, 4 gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols) ax = fig.add_subplot(gs[0, 0:2]) # X-coordinate plot ax.plot(bv_actual_trials[trial][:, 0], label="Actual X-Position") ax.plot(bv_preds_ridge_trials[trial][:, 0], label="Ridge Predicted X-Position") ax.plot(bv_preds_dnn_trials[trial][:, 0], label=f"{decoder_type} Predicted X-Position") ax.set_ylabel("X-Coordinate") ax.set_title("Decoding Performance (X-Coordinate)") ax.legend() ax = fig.add_subplot(gs[1, 0:2]) # Y-coordinate plot ax.plot(bv_actual_trials[trial][:, 1], label="Actual Y-Position") ax.plot(bv_preds_ridge_trials[trial][:, 1], label="Ridge Predicted Y-Position") ax.plot(bv_preds_dnn_trials[trial][:, 1], label=f"{decoder_type} Predicted Y-Position") ax.set_xlabel("Time Step") ax.set_ylabel("Y-Coordinate") ax.set_title("Decoding Performance (Y-Coordinate)") ax.legend() ax = fig.add_subplot(gs[:, 2:]) environment.plot_environment(fig, ax=ax) ax.plot(*bv_actual_trials[trial].T, label="Actual") ax.plot(*bv_preds_ridge_trials[trial].T, label="Ridge Predicted") ax.plot(*bv_preds_dnn_trials[trial].T, label=f"{decoder_type} Predicted") # plot rewards ax.plot(*environment.objects['objects'][reward_indices].T, 'ko', label="Reward") ax.set_title("Trajectory") # plot first 2 legend only ax.legend() plt.show() widgets.interact(visualize_predicted_trial, trial=(0, len(nsv_trials) - 1, 1));

interactive(children=(IntSlider(value=0, description='trial', max=99), Output()), _dom_classes=('widget-intera…

Section 3: Decoding Real Data¶

Now that we've seen how to decode synthetic data, let's try decoding real data.

Section 3.1: Load the data¶

In [24]:

  Copied!

BIN_SIZE = 0.05
BIN_SIZE = 0.05

In [25]:

  Copied!

basepath = r'/run/user/1000/gvfs/smb-share:server=132.236.112.212,share=ayadata1/Data/GrosmarkAD/Achilles/Achilles_10252013'

epoch_df = npy.io.load_epoch(basepath)
# get session bounds to provide support
session_bounds = nel.EpochArray(
    [epoch_df.startTime.iloc[0], epoch_df.stopTime.iloc[-1]]
)
# compress repeated sleep sessions
epoch_df = npy.session.compress_repeated_epochs(epoch_df)
beh_epochs = nel.EpochArray(epoch_df[["startTime", "stopTime"]].values.astype(float))

st, cell_metrics = npy.io.load_spikes(
    basepath, putativeCellType="Pyr", brainRegion="CA1"
)
spike_spindices = npy.spikes.get_spindices(st.data)

swr = npy.io.load_ripples_events(basepath, return_epoch_array=True)

theta = nel.EpochArray(npy.io.load_SleepState_states(basepath)["THETA"])

task_idx = npy.process.in_intervals(
    spike_spindices.spike_times, (beh_epochs[1] & theta).data
)
basepath = r'/run/user/1000/gvfs/smb-share:server=132.236.112.212,share=ayadata1/Data/GrosmarkAD/Achilles/Achilles_10252013' epoch_df = npy.io.load_epoch(basepath) # get session bounds to provide support session_bounds = nel.EpochArray( [epoch_df.startTime.iloc[0], epoch_df.stopTime.iloc[-1]] ) # compress repeated sleep sessions epoch_df = npy.session.compress_repeated_epochs(epoch_df) beh_epochs = nel.EpochArray(epoch_df[["startTime", "stopTime"]].values.astype(float)) st, cell_metrics = npy.io.load_spikes( basepath, putativeCellType="Pyr", brainRegion="CA1" ) spike_spindices = npy.spikes.get_spindices(st.data) swr = npy.io.load_ripples_events(basepath, return_epoch_array=True) theta = nel.EpochArray(npy.io.load_SleepState_states(basepath)["THETA"]) task_idx = npy.process.in_intervals( spike_spindices.spike_times, (beh_epochs[1] & theta).data )

In [26]:

  Copied!

position_df = npy.io.load_animal_behavior(basepath)

# put position into a nelpy position array for ease of use
posx = nel.AnalogSignalArray(
    data=position_df["x"].values.T,
    timestamps=position_df.timestamps.values,
)
posy = nel.AnalogSignalArray(
    data=position_df["y"].values.T,
    timestamps=position_df.timestamps.values,
)

# get outbound and inbound epochs
(outbound_epochs, inbound_epochs) = npy.behavior.get_linear_track_lap_epochs(
    posx.abscissa_vals, posx.data[0], newLapThreshold=20
)

outbound_epochs, inbound_epochs
position_df = npy.io.load_animal_behavior(basepath) # put position into a nelpy position array for ease of use posx = nel.AnalogSignalArray( data=position_df["x"].values.T, timestamps=position_df.timestamps.values, ) posy = nel.AnalogSignalArray( data=position_df["y"].values.T, timestamps=position_df.timestamps.values, ) # get outbound and inbound epochs (outbound_epochs, inbound_epochs) = npy.behavior.get_linear_track_lap_epochs( posx.abscissa_vals, posx.data[0], newLapThreshold=20 ) outbound_epochs, inbound_epochs

Out[26]:

(<EpochArray at 0x789e1bba5fa0: 42 epochs> of length 17:07:964 minutes,
 <EpochArray at 0x789e1bba5160: 43 epochs> of length 17:17:974 minutes)

Section 3.2: Prepare Data for Decoding¶

In [27]:

  Copied!

bst_trials_inbound = [st[i].bin(ds=BIN_SIZE).smooth(sigma=BIN_SIZE, inplace=True) for i in outbound_epochs]
bst_trials_outbound = [st[i].bin(ds=BIN_SIZE).smooth(sigma=BIN_SIZE, inplace=True) for i in inbound_epochs]
bst_trials = bst_trials_inbound + bst_trials_outbound
nsv_trials = np.asarray([pd.DataFrame(i.data.T) for i in bst_trials], dtype=object)
bst_trials_inbound = [st[i].bin(ds=BIN_SIZE).smooth(sigma=BIN_SIZE, inplace=True) for i in outbound_epochs] bst_trials_outbound = [st[i].bin(ds=BIN_SIZE).smooth(sigma=BIN_SIZE, inplace=True) for i in inbound_epochs] bst_trials = bst_trials_inbound + bst_trials_outbound nsv_trials = np.asarray([pd.DataFrame(i.data.T) for i in bst_trials], dtype=object)

In [28]:

  Copied!

pos_trials_with_missing = [
    np.vstack((
        posx.asarray(at=bst.bin_centers).yvals[0],
        posy.asarray(at=bst.bin_centers).yvals[0]
    ))
    for bst in bst_trials
]

pos_trials = []
for p in pos_trials_with_missing:
    p = pd.DataFrame(p.T)

    # find max contiguous sequence of NaNs
    max_len_nan = 0
    max_nan = 0
    for i in range(len(p)):
        if pd.isna(p.iloc[i, 0]):
            max_nan += 1
        else:
            max_len_nan = max(max_len_nan, max_nan)
            max_nan = 0
    max_len_nan += 1

    # fill missing values mean of surrounding values
    p = p.fillna(p.rolling(max_len_nan, min_periods=1).mean())

    # fill left edge nan values with first non-nan value
    p = p.ffill().bfill()
    pos_trials.append(p.values)
pos_trials = np.asarray(pos_trials, dtype=object)
pos_trials_with_missing = [ np.vstack(( posx.asarray(at=bst.bin_centers).yvals[0], posy.asarray(at=bst.bin_centers).yvals[0] )) for bst in bst_trials ] pos_trials = [] for p in pos_trials_with_missing: p = pd.DataFrame(p.T) # find max contiguous sequence of NaNs max_len_nan = 0 max_nan = 0 for i in range(len(p)): if pd.isna(p.iloc[i, 0]): max_nan += 1 else: max_len_nan = max(max_len_nan, max_nan) max_nan = 0 max_len_nan += 1 # fill missing values mean of surrounding values p = p.fillna(p.rolling(max_len_nan, min_periods=1).mean()) # fill left edge nan values with first non-nan value p = p.ffill().bfill() pos_trials.append(p.values) pos_trials = np.asarray(pos_trials, dtype=object)

In [29]:

  Copied!

# Format partitions for the decoder pipeline
fold_indices = npy.ensemble.decoding.split_data(
    nsv_trials, np.random.randint(0, 2, size=len(nsv_trials)), 0.6)
partition_indices = npy.ensemble.decoding.partition_indices(fold_indices)
partitions = npy.ensemble.decoding.partition_sets(
    partition_indices, nsv_trials, pos_trials)
# Format partitions for the decoder pipeline fold_indices = npy.ensemble.decoding.split_data( nsv_trials, np.random.randint(0, 2, size=len(nsv_trials)), 0.6) partition_indices = npy.ensemble.decoding.partition_indices(fold_indices) partitions = npy.ensemble.decoding.partition_sets( partition_indices, nsv_trials, pos_trials)

Section 3.3: Train Linear Decoder¶

In [30]:

  Copied!

bv_test_pred_ridge = []
for nsv_train, bv_train, nsv_val, bv_val, nsv_test, bv_test in partitions:
    ridge = sklearn.linear_model.Ridge(alpha=0.01)
    ridge.fit(np.concatenate(nsv_train), np.concatenate(bv_train))
    bv_test_pred = ridge.predict(np.concatenate(nsv_test))
    bv_test_pred_ridge.append(bv_test_pred)

sklearn.metrics.r2_score(
    np.concatenate([np.concatenate(p[-1]) for p in partitions]),
    np.concatenate(bv_test_pred_ridge)
)
bv_test_pred_ridge = [] for nsv_train, bv_train, nsv_val, bv_val, nsv_test, bv_test in partitions: ridge = sklearn.linear_model.Ridge(alpha=0.01) ridge.fit(np.concatenate(nsv_train), np.concatenate(bv_train)) bv_test_pred = ridge.predict(np.concatenate(nsv_test)) bv_test_pred_ridge.append(bv_test_pred) sklearn.metrics.r2_score( np.concatenate([np.concatenate(p[-1]) for p in partitions]), np.concatenate(bv_test_pred_ridge) )

Out[30]:

0.4274710535820969

Section 3.4: Train and Evaluate the DNN Decoder¶

In [31]:

  Copied!

decoder_type = 'MLP'  # Select decoder type (e.g., MLP)
hyperparams = dict(
    batch_size=512*8,
    num_workers=5,
    model=decoder_type,
    model_args=dict(
        in_dim=nsv_trials[0].shape[1],
        out_dim=pos_trials[0].shape[1],
        hidden_dims=[256, 256, .15, 256],
        args=dict(
            clf=False,
            activations=nn.CELU,
            criterion=F.mse_loss,
            epochs=40,
            lr=3e-2,
            base_lr=1e-2,
            max_grad_norm=1.,
            iters_to_accumulate=1,
            weight_decay=1e-2,
            num_training_batches=None,
            scheduler_step_size_multiplier=1,
        )
    ),
    behaviors=[0, 1],
    bins_before=1,
    bins_current=1,
    bins_after=0,
    device=DEVICE,
    seed=SEED
)
decoder_type = 'MLP' # Select decoder type (e.g., MLP) hyperparams = dict( batch_size=512*8, num_workers=5, model=decoder_type, model_args=dict( in_dim=nsv_trials[0].shape[1], out_dim=pos_trials[0].shape[1], hidden_dims=[256, 256, .15, 256], args=dict( clf=False, activations=nn.CELU, criterion=F.mse_loss, epochs=40, lr=3e-2, base_lr=1e-2, max_grad_norm=1., iters_to_accumulate=1, weight_decay=1e-2, num_training_batches=None, scheduler_step_size_multiplier=1, ) ), behaviors=[0, 1], bins_before=1, bins_current=1, bins_after=0, device=DEVICE, seed=SEED )

In [32]:

  Copied!

# Train the model using the pipeline function from your decoder module
results_path = "results"
bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model(
    partitions, hyperparams, resultspath=results_path)
# Train the model using the pipeline function from your decoder module results_path = "results" bv_preds_folds, bv_models_folds, norm_params_folds, metrics_folds = npy.ensemble.decoding.train_model( partitions, hyperparams, resultspath=results_path)

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 255 K  | train
--------------------------------------------
255 K     Trainable params
0         Non-trainable params
255 K     Total params
1.023     Total estimated model params size (MB)
9         Modules in train mode
0         Modules in eval mode
`Trainer.fit` stopped: `max_epochs=40` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │     861.2627563476562     │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/1990776941 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 255 K  | train
--------------------------------------------
255 K     Trainable params
0         Non-trainable params
255 K     Total params
1.023     Total estimated model params size (MB)
9         Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.6773325030958686
RMSE: 24.213068433497135

`Trainer.fit` stopped: `max_epochs=40` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │      1386.150390625       │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/1990776941 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 255 K  | train
--------------------------------------------
255 K     Trainable params
0         Non-trainable params
255 K     Total params
1.023     Total estimated model params size (MB)
9         Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.46727911396418176
RMSE: 32.120959673056355

`Trainer.fit` stopped: `max_epochs=40` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │      1221.5458984375      │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/1990776941 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 255 K  | train
--------------------------------------------
255 K     Trainable params
0         Non-trainable params
255 K     Total params
1.023     Total estimated model params size (MB)
9         Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.6286478191387428
RMSE: 28.07934763958197

`Trainer.fit` stopped: `max_epochs=40` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │     650.6585693359375     │
└───────────────────────────┴───────────────────────────┘

Seed set to 2025
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
HPU available: False, using: 0 HPUs
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/lightning/pytorch/callbacks/model_checkpoint.py:654: Checkpoint directory /home/cornell/Desktop/neuro_py/tutorials/results/models/1990776941 exists and is not empty.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
/home/cornell/.conda/envs/pfc/lib/python3.9/site-packages/torch/optim/lr_scheduler.py:62: UserWarning: The verbose parameter is deprecated. Please use get_last_lr() to access the learning rate.

  | Name | Type       | Params | Mode
--------------------------------------------
0 | main | Sequential | 255 K  | train
--------------------------------------------
255 K     Trainable params
0         Non-trainable params
255 K     Total params
1.023     Total estimated model params size (MB)
9         Modules in train mode
0         Modules in eval mode

Variance weighed avg. coefficient of determination: 0.7983677020380157
RMSE: 21.3463354244628

`Trainer.fit` stopped: `max_epochs=40` reached.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━┓
┃        Test metric        ┃       DataLoader 0        ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━┩
│         test_loss         │     786.2012939453125     │
└───────────────────────────┴───────────────────────────┘

Variance weighed avg. coefficient of determination: 0.6337113438298102
RMSE: 23.376468307662268

Section 3.5: Visualize Results¶

In [33]:

  Copied!

bv_preds_dnn_trials = np.concatenate([
    bv_preds_fold + norm_params_folds[i]['y_train_mean']
    for i, bv_preds_fold in enumerate(bv_preds_folds)
])
bv_preds_ridge_trials = np.concatenate(bv_test_pred_ridge)
bv_actual_trials = np.concatenate([np.concatenate(p[-1]) for p in partitions])
trial_lengths = [len(trial) for p in partitions for trial in p[-1]]
trial_indices = np.cumsum(trial_lengths)

bv_preds_dnn_trials = np.split(bv_preds_dnn_trials, trial_indices[:-1])
bv_preds_ridge_trials = np.split(bv_preds_ridge_trials, trial_indices[:-1])
bv_actual_trials = np.split(bv_actual_trials, trial_indices[:-1])

def visualize_predicted_trial(trial=0):
    # Plotting
    figsize=(15, 5)

    fig = plt.figure(figsize=figsize)
    nrows, ncols = 2, 3
    gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols)

    ax = fig.add_subplot(gs[0, 0:2])
    # X-coordinate plot
    ax.plot(bv_actual_trials[trial][:, 0], label="Actual X-Position")
    ax.plot(bv_preds_ridge_trials[trial][:, 0], label="Ridge Predicted X-Position", alpha=0.75)
    ax.plot(bv_preds_dnn_trials[trial][:, 0], label=f"{decoder_type} Predicted X-Position", alpha=0.75)
    ax.set_ylabel("X-Coordinate")
    ax.set_title("Decoding Performance (X-Coordinate)")
    ax.legend()

    ax = fig.add_subplot(gs[1, 0:2])
    # Y-coordinate plot
    ax.plot(bv_actual_trials[trial][:, 1], label="Actual Y-Position")
    ax.plot(bv_preds_ridge_trials[trial][:, 1], label="Ridge Predicted Y-Position", alpha=0.75)
    ax.plot(bv_preds_dnn_trials[trial][:, 1], label=f"{decoder_type} Predicted Y-Position", alpha=0.75)
    ax.set_xlabel("Time Step")
    ax.set_ylabel("Y-Coordinate")
    ax.set_title("Decoding Performance (Y-Coordinate)")
    ax.legend()

    ax = fig.add_subplot(gs[:, 2])
    ax.plot(*bv_actual_trials[trial].T, label="Actual")
    ax.plot(*bv_preds_ridge_trials[trial].T, label="Ridge Predicted", alpha=0.75)
    ax.plot(*bv_preds_dnn_trials[trial].T, label=f"{decoder_type} Predicted", alpha=0.75)
    ax.set_xlabel("x")
    ax.set_ylabel("y")
    ax.set_title("Trajectory")
    ax.legend()

    plt.tight_layout()
    plt.show()

widgets.interact(visualize_predicted_trial, trial=(0, len(nsv_trials) - 1, 1));
bv_preds_dnn_trials = np.concatenate([ bv_preds_fold + norm_params_folds[i]['y_train_mean'] for i, bv_preds_fold in enumerate(bv_preds_folds) ]) bv_preds_ridge_trials = np.concatenate(bv_test_pred_ridge) bv_actual_trials = np.concatenate([np.concatenate(p[-1]) for p in partitions]) trial_lengths = [len(trial) for p in partitions for trial in p[-1]] trial_indices = np.cumsum(trial_lengths) bv_preds_dnn_trials = np.split(bv_preds_dnn_trials, trial_indices[:-1]) bv_preds_ridge_trials = np.split(bv_preds_ridge_trials, trial_indices[:-1]) bv_actual_trials = np.split(bv_actual_trials, trial_indices[:-1]) def visualize_predicted_trial(trial=0): # Plotting figsize=(15, 5) fig = plt.figure(figsize=figsize) nrows, ncols = 2, 3 gs = mpl.gridspec.GridSpec(*(nrows, ncols), figure=fig)#, height_ratios=[.5] * nrows, width_ratios=[.1]*ncols) ax = fig.add_subplot(gs[0, 0:2]) # X-coordinate plot ax.plot(bv_actual_trials[trial][:, 0], label="Actual X-Position") ax.plot(bv_preds_ridge_trials[trial][:, 0], label="Ridge Predicted X-Position", alpha=0.75) ax.plot(bv_preds_dnn_trials[trial][:, 0], label=f"{decoder_type} Predicted X-Position", alpha=0.75) ax.set_ylabel("X-Coordinate") ax.set_title("Decoding Performance (X-Coordinate)") ax.legend() ax = fig.add_subplot(gs[1, 0:2]) # Y-coordinate plot ax.plot(bv_actual_trials[trial][:, 1], label="Actual Y-Position") ax.plot(bv_preds_ridge_trials[trial][:, 1], label="Ridge Predicted Y-Position", alpha=0.75) ax.plot(bv_preds_dnn_trials[trial][:, 1], label=f"{decoder_type} Predicted Y-Position", alpha=0.75) ax.set_xlabel("Time Step") ax.set_ylabel("Y-Coordinate") ax.set_title("Decoding Performance (Y-Coordinate)") ax.legend() ax = fig.add_subplot(gs[:, 2]) ax.plot(*bv_actual_trials[trial].T, label="Actual") ax.plot(*bv_preds_ridge_trials[trial].T, label="Ridge Predicted", alpha=0.75) ax.plot(*bv_preds_dnn_trials[trial].T, label=f"{decoder_type} Predicted", alpha=0.75) ax.set_xlabel("x") ax.set_ylabel("y") ax.set_title("Trajectory") ax.legend() plt.tight_layout() plt.show() widgets.interact(visualize_predicted_trial, trial=(0, len(nsv_trials) - 1, 1));

interactive(children=(IntSlider(value=0, description='trial', max=84), Output()), _dom_classes=('widget-intera…
